Summary of Contents for Boston Acoustics VR-MX

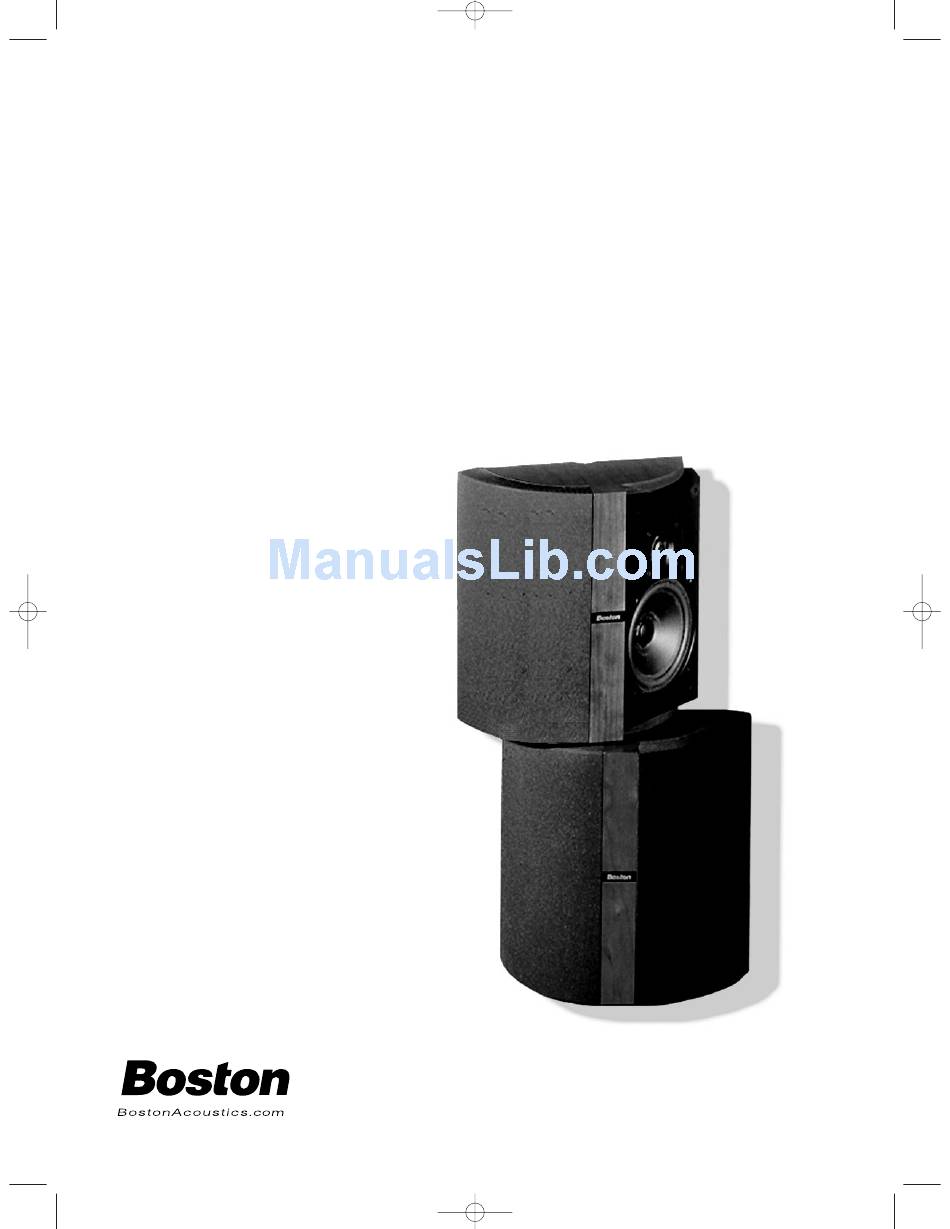

- Page 1 VRMX Manual 2/9/01 12:16 PM Page 1 VR-MX Wide Dispersion Home Theater Surround Speaker...
-
Page 2: Specifications
® surround sound effects with Dolby The VR-MX may be placed on a shelf or mounted on a wall or ceiling using the supplied template, mounting hardware and bracket. Gold-plated five-way binding posts allow the connection of virtually any speaker cable. Its unique design allows for it to be used to create a seemingly larger or more intimate acoustic space, depending upon how it is oriented relative to the listening space. -
Page 3: Direct Configuration
In either case, the best results will be obtained if the VR-MX is mounted above ear level and out at least 20 inches from the corner. -
Page 4: Room Placement
Take a few minutes to place your speakers correctly to ensure they will sound their best. Place the VR-MX speakers on either side of the listening area. If the listening position is against the wall, place the speakers to either side, no less than 20"... - Page 5 DIRECT and DIFFUSE arrows on the back of each speaker will be pointing in the same direction on either side of the room. SOUND RADIATION ORIENTATION LABELS These labels are located on the rear of each VR-MX. Note that the speakers are For DIFFUSE Field configured as mirror Surround Effects: Position VR-MX imaged pairs.
- Page 6 Wall or Ceiling Mounting Your VR-MX Speakers The VR-MX is designed to be mounted directly onto a wall or ceiling. First attach the eight supplied self-adhesive felt pads, one on the back of each corner of both speakers. Then attach the bracket to the wall or ceiling and slide the speaker on to the bracket as shown below and on the next page.
-
Page 7: Listening Levels And Power Handling
2. Drill all holes as indicated. Insert the machine screws through the bracket and thread them onto the toggle wings before penetrating the wall. Push the toggle wings through the holes in the wall. 3. Level the bracket and tighten the screws. Connect the wires to the terminals and hang the speaker on the brackets, so the DIRECT or DIFFUSE arrow on the label points to the... -
Page 8: Limited Warranty
Limited Warranty For five years from the date of purchase, Boston Acoustics will repair for the original owner any defect in materials or workmanship that occurs in normal use of the speaker system, without charge for parts and labor. Your responsibilities are to use the system according to the instructions supplied, to provide safe and secure transportation to an authorized Boston Acoustics service representative and to present proof of purchase in the form of your sales slip when requesting service.
