Preparations

■

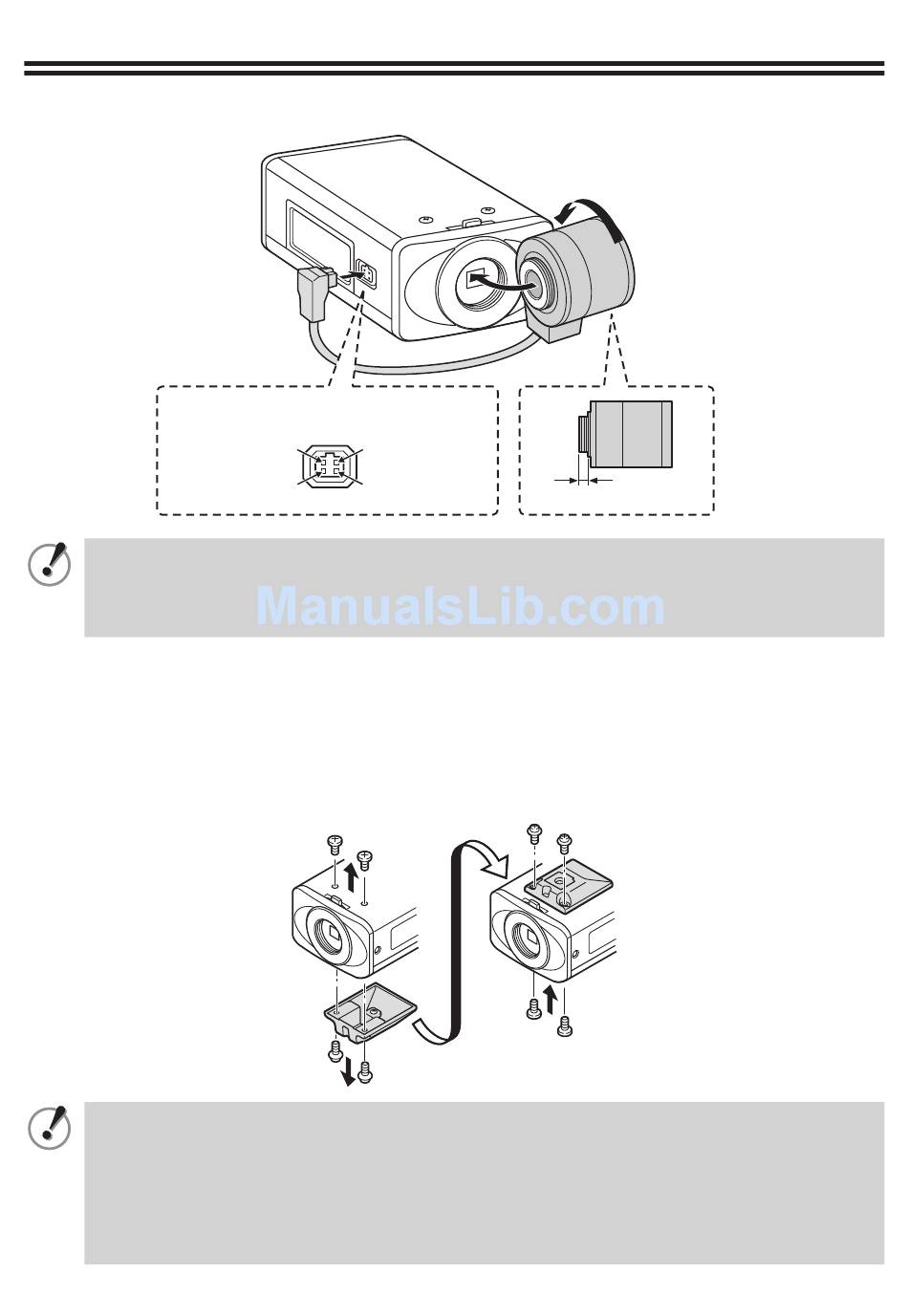

Installing the lens (for CS mount)
Lens terminals for auto iris lens
Brake coil (+)
Drive coil (–)
•
If using a C mount lens, install a commercially-available adapter ring.
•
The shape of the lens plug may not mach depending on the type of lens being used.
If the shape does not match, contact the place of purchase or an authorized service
agent.
■
Installing the camera
The bracket can be installed either above or below as shown in the illustration.
When installing the camera, check whether the screws can be securely tightened or not. Plaster boards
and similar will not provide enough strength, so use extra measures such as a reinforcement plate to
securely tighten the screws.
•
If monitoring objects which have a brightness that exceeds the maximum brightness
amount for objects because of the degree of illumination, smearing (a phenomenon
where vertical or horizontal striped lines appear in high-luminance areas of the object)
may occur. Adjust the angle of the illumination while monitoring the object.
•
Select a suitable camera mounting bracket (commercially-available) which is able to
bear the full combined weight of the camera unit and the mounting bracket, and install
it securely in a durable location.
Brake coil (–)
Drive coil (+)
5 mm/0.2 in. or less
