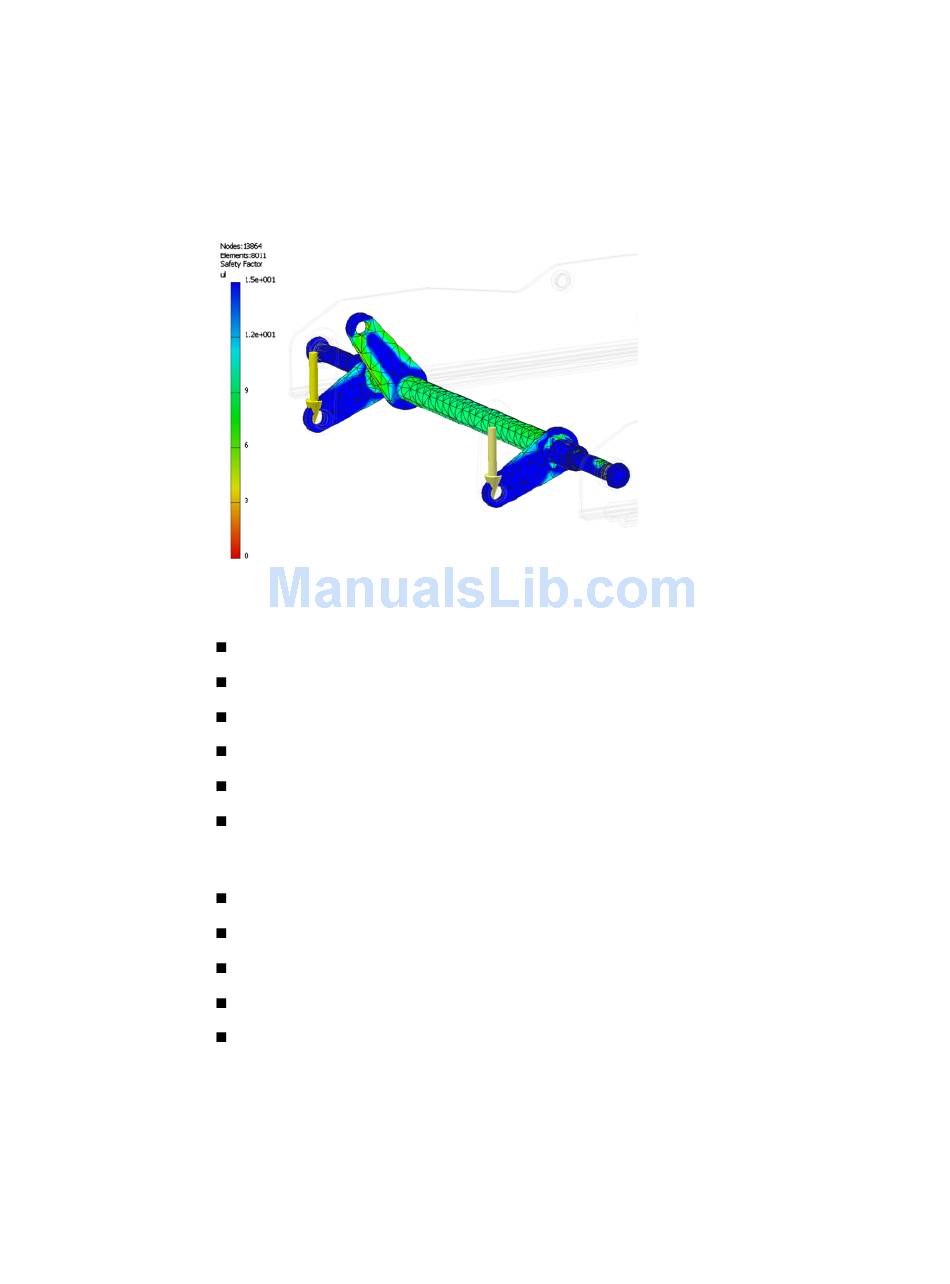

The various results sets are seen by expanding the Result node to reveal the
child nodes. For example, when you run a static analysis, child result nodes
for Von Mises Stress, 1st principal stress, Displacement, Safety Factor, and so
on populate the browser.
To view the different results sets, double-click the browser node. While viewing
the results, you can:
Change the color bar to emphasize the stress levels that are of concern.
Compare the results to the undeformed geometry.
View the mesh used for the solution.
Use Contour Shading.
Display the Maximum and Minimum Results locations.
Apply the same scale across results sets. This becomes relevant when hiding
various parts from from the result view or when dealing with multiple
configurations in parametric studies.
Display the boundary conditions.
Change the displacement scale to exaggerate the displacement.
Animate the displacement through a series of steps.
Create a video of the displacement animation.
View 2D Convergence Plots (result accuracy curve).
24 | Chapter 3 View Results
