Pow-R-Command
Quick Start Guide
Instruction Leaflet IL01412010E
Introduction
This is the Quick Start Guide for the PRC1000 LCD programming
display. A worksheet of information that will be needed to complete
this startup is found on Page 6 of this guide. Make sure you have all
the listed information available before starting, either by filling in the
worksheet, or from job documents.
Several conventions are used in this document. COURIER text
indicates screen output or screen menu items. BOLD COURIER
indicates user button presses.

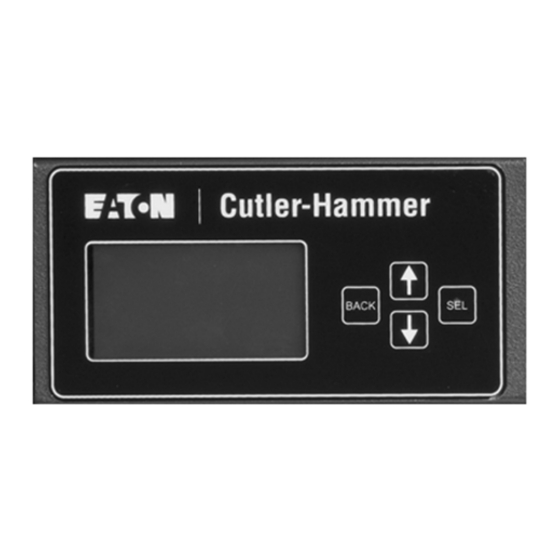

Navigation through the LCD programming tool menus is via the four
buttons to the right of the screen as shown above. They are BACK ,
UP, DOWN and SEL . Generally, BACK is used to cancel a selection or
to move back up through the menu hierarchy. UP/DOWN are used to
scroll through selections on a menu or to change values. SEL is used
to choose a menu item or to enter a setting. Some menu screens will
have an arrow symbol ( ) in the lower right corner. This indicates
there are additional menu items for this screen. Use the UP/DOWN
keys to scroll down to view the additional items.
1000 — LCD Display

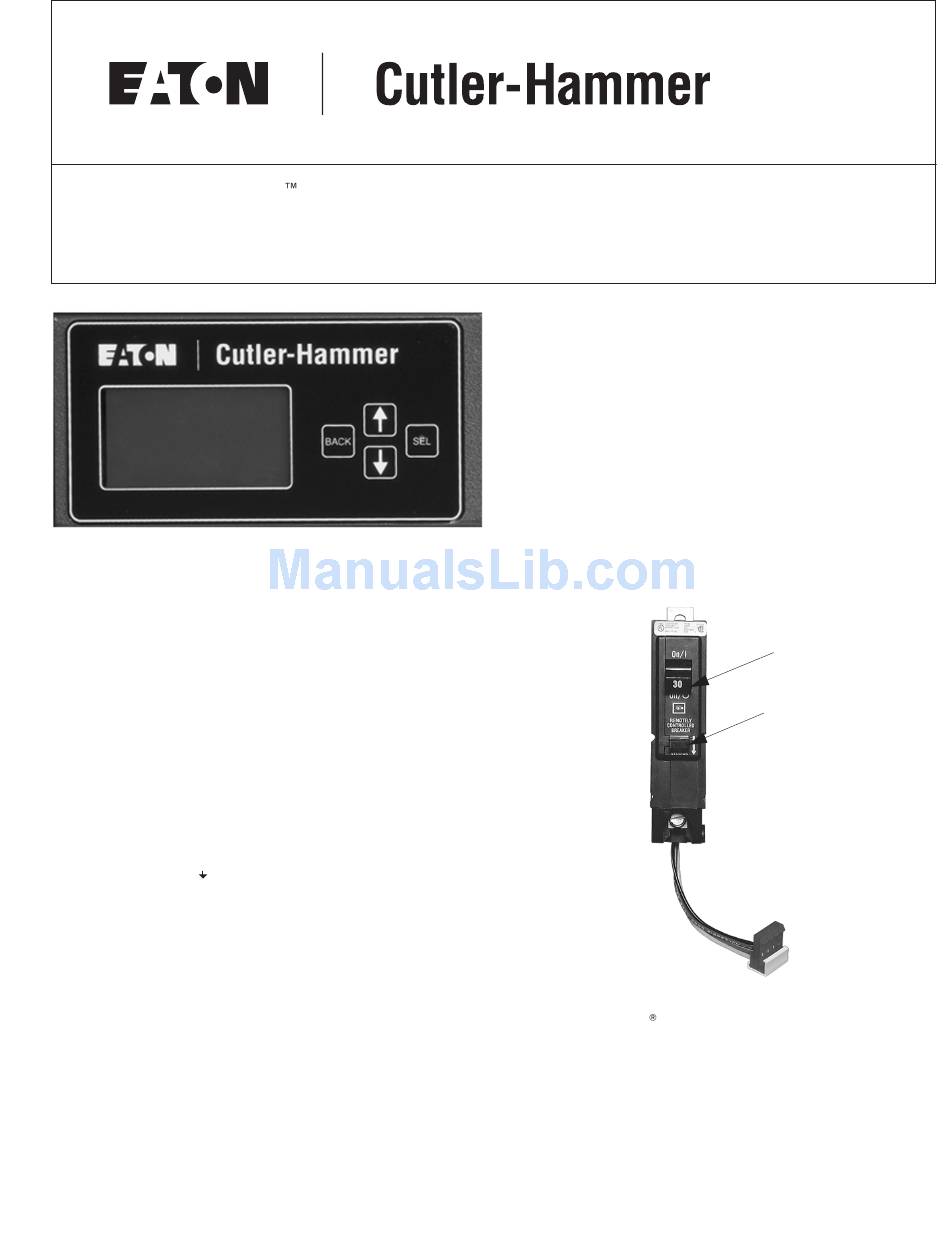

FIGURE 1. CONTROLLABLE CIRCUIT BREAKER
Eaton's Cutler-Hammer controllable circuit breakers have two
handles, as shown in Figure 1 . The larger black handle is referred to
as the primary handle. The primary handle can be turned to the on or
off positions by manual control. The smaller green handle is referred
to as the control handle. The control handle can be moved to the off
or on position by electronic control or to the on position by manual
override.
Effective June 2006
Primary Handle
Control Handle
