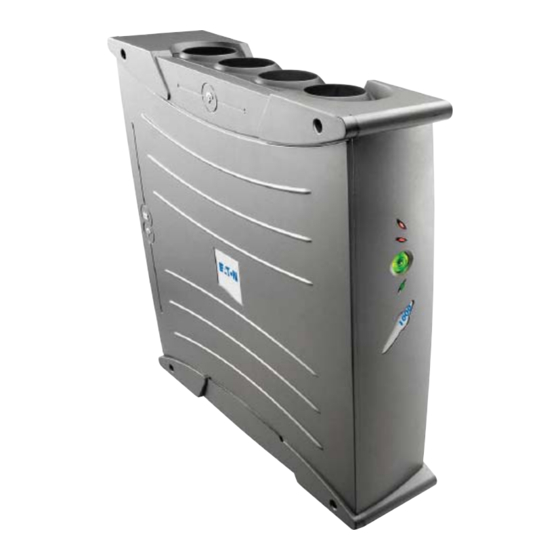

Eaton Ellipse 375 Installation And User Manual
Pulsar series
Hide thumbs
Also See for Ellipse 375:
- Installation and user manual (9 pages) ,
- Installation and user manual (40 pages)
Related Manuals for Eaton Ellipse 375
Summary of Contents for Eaton Ellipse 375
- Page 1 w w w . e a t o n . c o m Ellipse 375/600/750/ 1000/1500/XL Installation and user manual English - Français Deutsch - Italiano Español - Nederlands Português - Polski - Česky Solvenčina - Slovensko Magyar - Türkçe Pulsar Series...
- Page 2 3400774700 AG...
- Page 3 Quick start FR / DIN IEC / UNIVERSAL Ellipse 1000 / 1500 USBS Ellipse 375 / 600 / 750 50-20 mn 5-40 mn Network Ellipse 600 / 750 USBS Modem 3400774700 AG...
- Page 4 Beep Solution Pac Product representations not legally binding. Battery change Ellipse 1500 / XL Ellipse 375 / 600 / 750 Ellipse 1000 Warning: take care not to inverse Attention : lors du raccordement the polarity + (red) and - (black)
- Page 5 Technical characteristics Ellipse: 1000 1500 UPS power 375 VA / 600 VA / 750 VA / 1000 VA / 1500 VA / 420 VA / 225 W 360 W 450 W 600 W 900 W 250 W Nominal input voltage 184 V - 264 V, adjustable to 161 V - 284 V Input frequency 50/60 Hz (46 - 70 Hz working range)
- Page 6 UPS transfers (computer, monitor, modem, etc.) to battery power. into the outlets 9 providing Ellipse 375 / 600 / 750 If the power outage lasts longer battery backup power and surge than the battery backup time, the protection (see figure B), taking...
- Page 7 Troubleshooting (For further information, visit the www.eaton.com site or contact after-sales support.) Problem Diagnostic Solution The battery backup outlets 9 Button 13 is not lighted on. Press button 13 and check that it are not supplied with power. turns green.
