Instruction Booklet IB150030EN
Power Xpert Branch Circuit Monitor

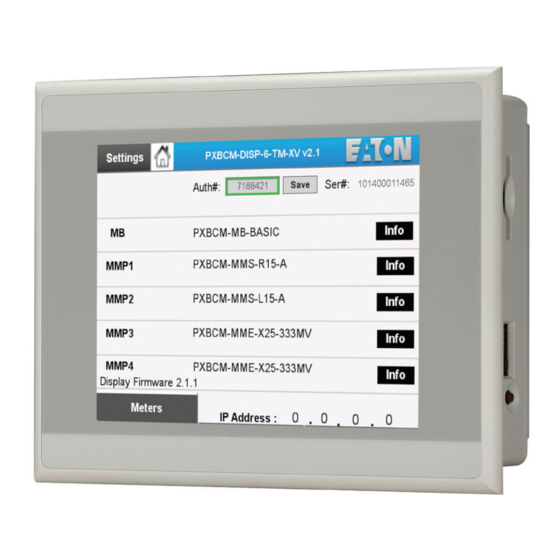

6" tenant metering touchscreen
display features
Effective October 2020
Contents
Description
1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2 .1 Meter sealing for regulated tenant
metering applications . . . . . . . . . . . . . . . . 2
3
Using the touchscreen . . . . . . . . . . . . . . . . . . 2
3 .1 Basic navigation . . . . . . . . . . . . . . . . . . . . 2
3 .2 Home screen . . . . . . . . . . . . . . . . . . . . . . 2
3 .3 Meters tab . . . . . . . . . . . . . . . . . . . . . . . . 3
3 .4 Virtual meter tab . . . . . . . . . . . . . . . . . . . . 3
3 .5 Meter base information . . . . . . . . . . . . . . 3
3 .6 Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
