Eaton PXM468K-DISP-6-XV Quick Start Manual

Technical Data TD150029EN
PXM4/6/8K meter color touchscreen
display quick start guide
For detailed information concerning the operation and features
available in the PXM4/6/8K meter display - 6" color touchscreen
(PXM468K-DISP-6-XV), please refer to PXM4/6/8K meter color touch-
screen display features (IB150021EN) available on the Eaton website
(www.eaton.com/meters).

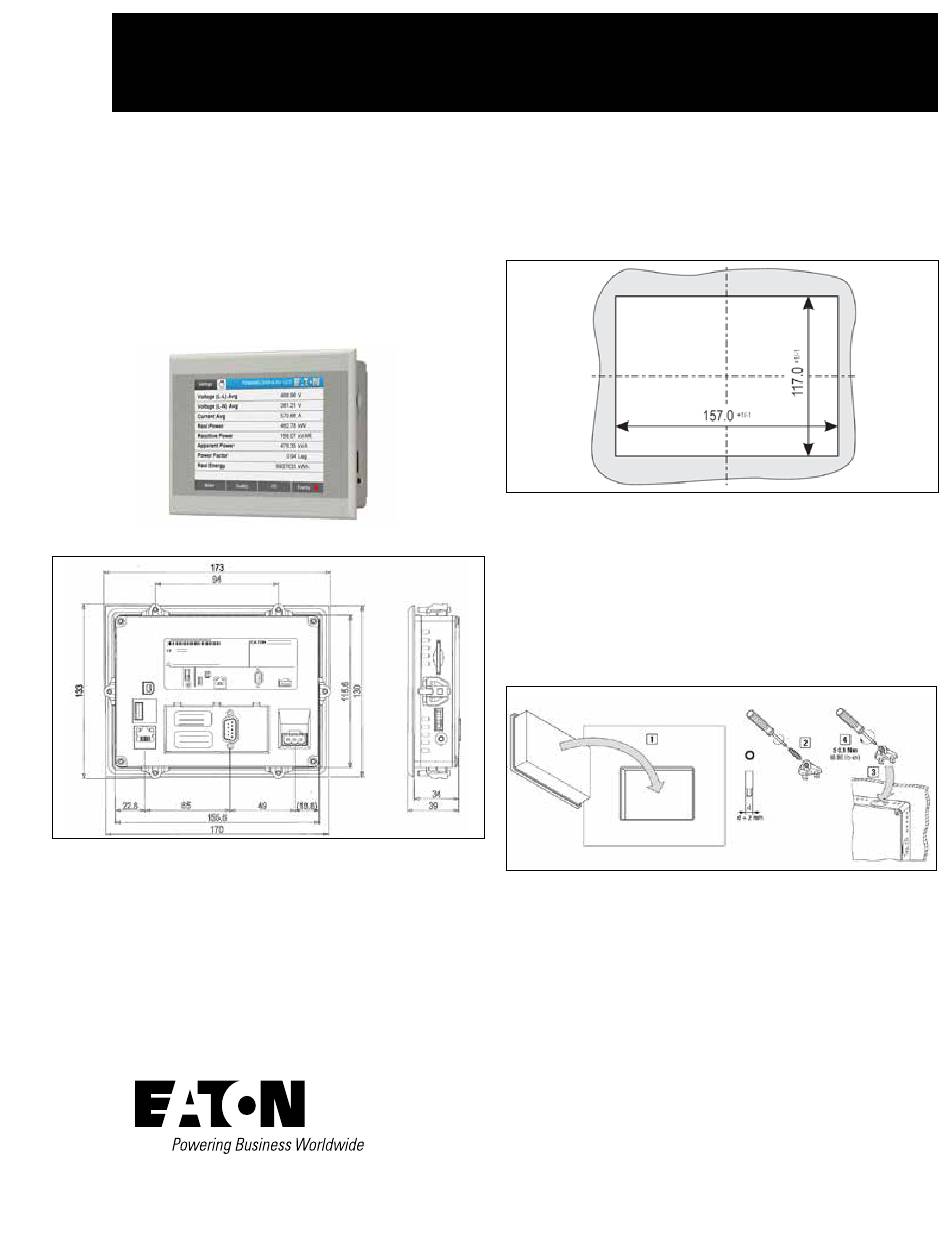

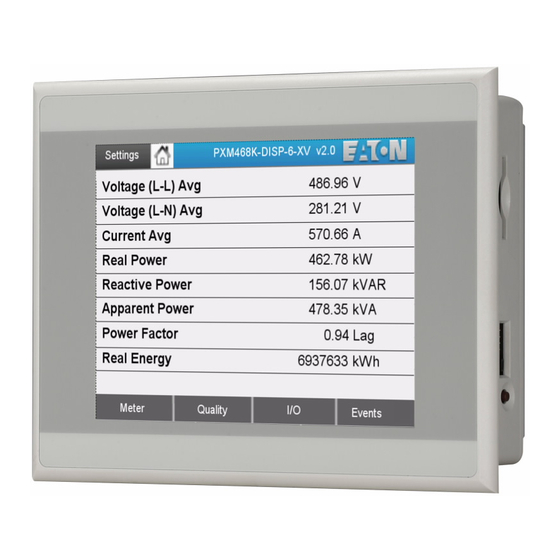

Figure 1. Color touchscreen display for PXM4/6/8K series meter.
Figure 2. Dimensions of the PXM4/6/8K meter display - 6" color
touchscreen (PXM468K-DISP-6-XV).
Installation
1. Disconnect and lockout all power to the enclosure.
2. Inspect the enclosure door to determine the best mounting loca-
tion for the PXM4/6/8K meter color touchscreen display.
A minimum clearance of 1.18 in. (30.0 mm) must be maintained
N otee:
between the ventilation holes in the back of the display and any other
component within the enclosure.
3. Use the mounting template to mark the cutout area on the enclo-
sure door. Cut out the marked area.
Effective June 2019
Figure 3. Cut out dimensions.
4. Ensure proper gasket placement on the PXM4/6/8K meter color
touchscreen display.
5. Insert the PXM4/6/8K meter color touchscreen display through
the cutout.
6. Fit the supplied threaded pins in the retaining brackets. The tips
of the threaded pins must point towards the wider ends of the
retaining brackets. Clip on the retaining brackets in the recesses
provided for them on the device.
Figure 4. Mounting the PXM4/6/8K meter display.
7 . Check for proper alignment of the PXM4/6/8K meter color touch-
screen display. Then fix the device by torquing the threaded pins
to 0.1 Nm (0.86 lb-in) with a 2 mm hexagonal screwdriver. The
front of the display should be flush with the surface of the con-
trol cabinet at the fixing points.
Connections
To use the PXM4/6/8K meter color touchscreen display, provide
24 Vdc and connect the power cable between the color touchscreen
display and the PXM4/6/8K meter.
The display's plug-in terminals provide connections for +24, GND
and common (0).
