RED-TRED
Standard Duty
Model:
18067 – 2,400 RPM
Read and understand this tool manual before operating your air tool. Follow all safety rules for the protection of operating personnel
as well as adjacent areas. Always operate, inspect and maintain this tool in accordance with the American National Standards Institute
(ANSI) Safety Code for Portable Air Tools – B186.1. For additional safety information, refer to Safety Requirements for the Use, Care
and Protection of Abrasive Wheels – ANSI B7.1, Code of Federal Regulation – CFR 29 Part 1910, European Committee for Standards
(EN) Hand Held Non-Electric Power Tools – Safety Requirements and applicable State and Local Regulations.
Read and understand tool manual before
work starts to reduce risk of injury to
operator, visitors, and tool.
Eye protection must be worn
at all times, eye protection to
conform to ANSI Z87.1.
Respiratory protection to be used when
exposed to contaminants that exceed the
applicable threshold limit values required by law.
Some dust created by sanding, grinding, drilling, and other construction activities contain chemicals known to cause cancer, birth defects
or other reproductive harm. Some examples of these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks and cement and other masonry products
• Arsenic and chromium from chemically treated lumber
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well
ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.
Carefully Read all instructions before operating or servicing any Dynabrade
Products offered by Dynabrade are not to be modified, converted or otherwise alerted from the original design.

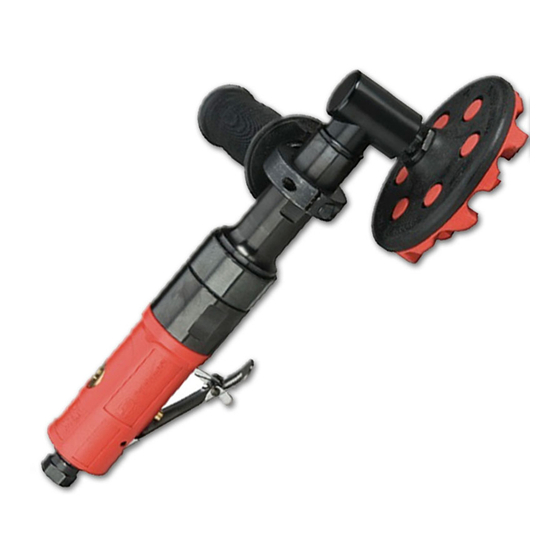

Tool Intent: RedTred
Eraser Disc Tool uses eraser discs for erasing and removing tapes, adhesives, vinyl graphics, pin striping and decals without harming
TM
the substrate.
This power tool is not intended for use in potentially explosive atmospheres and is not insulated against contact with electrical power.
Training: Proper care, maintenance, and storage of your tool will maximize its performance.
• Employer's Responsibility – Provide RedTred
Accessory Selection:
• ONLY USE Dynabrade Eraser Discs (P/N 92297).
• Accessory speed rating MUST be approved for AT LEAST the tool Revolutions Per Minute (RPM) rating.
®
Eraser Disc Tool
Air Tool Manual – Safety, Operation and Maintenance
SAVE THIS DOCUMENT, EDUCATE ALL PERSONNEL
WARNING
SAFETY LEGEND
WARNING
WARNING
WARNING

SAFETY INSTRUCTIONS

Do Not Use Tool For Anything Other Than Its Intended Applications.
TM
Eraser Disc Tool operators with safety instructions and training for safe use of tools and accessories.
(continued on next page)
Practice safety requirements. Work alert,
have proper attire, and do not operate tools under
the influence of alcohol or drugs.
Ear protection to be worn when exposure to sound,
exceeds the limits of applicable Federal, State or
local statues, ordinances and/or regulations.
Air line hazard, pressurized supply lines and flexible
hoses can cause serious injury. Do not use damaged,
frayed or deteriorated air hoses and fittings.
WARNING
®
Abrasive Power Tool.
AUTOMOTIVE
Parts Page Reorder No. APD10•02R
Effective March, 2010
Supersedes APD10•02
WARNING
WARNING
WARNING

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RED-TRED 18067 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dynabrade RED-TRED 18067

  • Page 1: Safety Instructions

    ® Abrasive Power Tool. Products offered by Dynabrade are not to be modified, converted or otherwise alerted from the original design. Tool Intent: RedTred Eraser Disc Tool uses eraser discs for erasing and removing tapes, adhesives, vinyl graphics, pin striping and decals without harming the substrate.
  • Page 2: Operating Instructions

    20 SCFM Air Hose Valve Drain Valve • Dynabrade Air Power Tools are designed to operate at 90 PSIG 90 PSIG MAX Air Flow (6.2 Bar) maximum air pressure at the tool inlet, when the tool is (6.2 Bar) running. Use recommended regulator to control air pressure.
  • Page 3: Machine Specifications

    RED-TRED ® Eraser Disc Tool Oil: O = Air Lube Complete Assembly Adhesive: = Loctite #271 = Loctite #243 Torque: N•m x 8.85 = In. - lbs. *Lubricate the bevel gears through the grease fitting located in the 18747 Angle Head Assembly. Grease: G = Lubriplate 630AA Apply 2-3 plunges for every 40 hours of use,...
  • Page 4: Maintenance Instructions

    • Refer to Dynabrade's Warning/Safety Operating Instructions Tag (Reorder No. 95903) for safety information. After maintenance is performed on tool, add a few drops of Dynabrade Air Lube (P/N 95842) to the air line and start the tool a few times to lubricate air motor.
  • Page 5 6 18426 Rotor Blade Set (4/pkg.) 7 18419 O-Ring 8 18418 O-Ring 9 18416 Valve Spring 10 18415 O-Ring 11 18413 Valve Stem 12 18414 O-Ring 13 18401 Silencer ® DYNABRADE Dynabrade puts everything within reach. Discover other air tools & compressors on our website.
