Dynabrade 13511 Safety, Operation And Maintenance

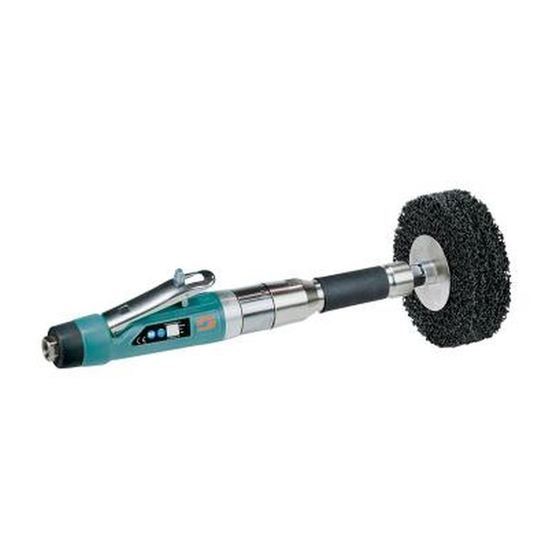

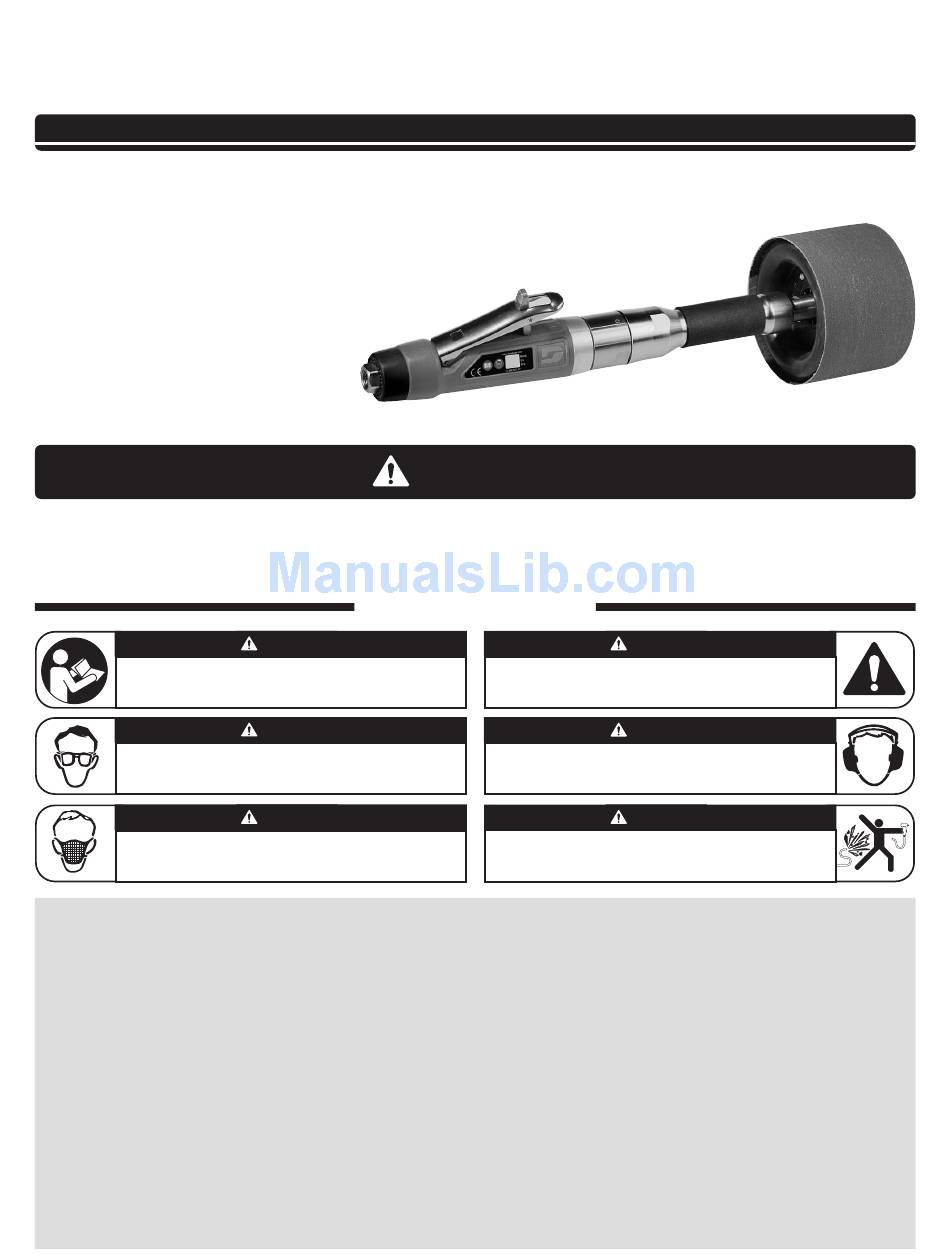

1 hp Dynastraight
6" Extension, Governor Controlled
Models:
13511 – 1,800 RPM
with 5/8" or 1" Combination Arbor
13512 – 3,400 RPM
with 1/2" Diameter Arbor
13515 – 3,400 RPM
with 5/8"-11 Threaded Arbor
13516 – 3,400 RPM
with 5/8" or 1" Combination Arbor
13517 – 4,500 RPM
with 1/2" Diameter Arbor
13518 – 4,500 RPM
with 5/8" or 1" Combination Arbor
13519 – 6,000 RPM
with 5/8"-11 Threaded Arbor
Read and understand this tool manual before operating your air tool. Follow all safety rules for the protection of operating personnel
as well as adjacent areas. Always operate, inspect and maintain this tool in accordance with the American National Safety Institute
(ANSI) Safety Code for Portable Air Tools – B186.1. For additional safety information, refer to Safety Requirements for the Use, Care
and Protection of Abrasive Wheels – ANSI B7.1, Code of Federal Regulation – CFR 29 Part 1910, European Committee for Standards
(EN) Hand Held Non-Electric Power Tools – Safety Requirements and applicable State and Local Regulations.
Read and understand tool manual before
work starts to reduce risk of injury to
operator, visitors, and tool.
Eye protection must be worn at all times, eye
protection to conform to ANSI Z87.1.
Respiratory protection to be used when exposed
to contaminants that exceed the applicable
threshold limit values required by law.
Carefully Read all instructions before operating or servicing any Dynabrade
Products offered by Dynabrade are not to be modified, converted or otherwise altered from the original design without expressed written
consent from Dynabrade, Inc.
Tool Intent: Extension Dynastraight Finishing Tools are ideal for surface preparation, cleaning and finishing using abrasive wheels, discs and related accessories.
This power tool is not intended for use in potentially explosive atmospheres and is not insulated against contact with electrical power.
Training: Proper care, maintenance, and storage of your tool will maximize its performance.
• Employer's Responsibility – Provide Extension Dynastraight operators with safety instructions and training for safe use of tools and accessories.
Accessory Selection:
• Abrasive/accessory RPM (speed) rating MUST be approved for AT LEAST the tool RPM rating.
• Before mounting an accessory, visually inspect for defects. Do not use defective accessories.
• Mount only recommended accessories. See back page of manual and Dynabrade literature.
• Follow tool specifications before choosing size and type of accessory.
• Only use recommended fittings and air line sizes. Air supply hoses and air hose assemblies must have a minimum working pressure rating of 150 PSIG
(10 bars, g) or 150 percent of the maximum pressure produced in the system, whichever is higher. (See tool Machine Specifications table.)
• DO NOT use – Grinding wheels, cut-off wheels, saw blades or other products outside tool intent.
Air Tool Manual – Safety, Operation and Maintenance
SAVE THIS DOCUMENT, EDUCATE ALL PERSONNEL
13520 – 4,500 RPM
with 5/8"-11 Threaded Arbor
13531 – 1,800 RPM
with 5/8"-11 Threaded Arbor
WARNING
SAFETY LEGEND
WARNING
WARNING
WARNING
SAFETY INSTRUCTIONS
Do Not Use Tool For Anything Other Than Its Intended Applications.
(continued on next page)
Parts Page Reorder No. PD10•22R
WARNING
Practice safety requirements. Work alert,
have proper attire, and do not operate tools under
the influence of alcohol or drugs.
WARNING
Ear protection to be worn when exposure to sound,
exceeds the limits of applicable Federal, State or
local statues, ordinances and/or regulations.
WARNING
Air line hazard, pressurized supply lines and flexible
hoses can cause serious injury. Do not use dam-
aged, frayed or deteriorated air hoses and fittings.
® Abrasive Power Tool.
Effective June, 2013
Supersedes PD10•22
