Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade
Model:
15360
– .7 Hp
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air
tools (ANSI B186.1) and any other applicable safety codes and regulations. Please refer to
Dynabrade ' s Warning/Safety Operating Instructions for more complete safety information.
Index Key
No. Part # Description
1
95567
Screw
2
11016
Bearing (2)
3
15358
Contact Wheel
4
11017
Spacer
5
15377
Contact Arm Tip
6
95311
Screw (2)
7
15368
Contact Arm
8
96334
Plug
9
15308
Guide Post
10
11040
Spring
11
15306
Tension Arm
12
95218
Knob
13
95426
Spring
14
15307
Tension Shaft
15
15309
Dust Cover
16
15329
Screw
17
15310
Guard
18
15312
Guard Assembly
19
96335
Hex Nut
20
15374
Housing
21
40029
Motor Lock
22
15336
Drive Wheel
23
15378
Motor Assembly
24
95217
Screw (5)
25
15373
Side Handle Block
26
53163
Handle Assembly
27
15315
Exhaust Cover
28
04078
Felt Silencer
29
01126
Air Control Ring
30
42636
Spindle Adapter
31
01007
Bearing
32
01121
Shim Pack (3/pkg.)
33
01010
Spacer
34
01008
Bearing Plate
35
50767
Pin (2)
36
01028
Cylinder
37
55021
Rotor
38
01185
Blade (4/pkg.)
39
01722
Bearing Plate
40
02649
Bearing
41
01295
Housing
42
01247
Speed Regulator
Assembly
43
01024
O-Ring
44
95730
O-Ring
45
01477
Valve Stem
46
01464
Seal
47
01472
Tip Valve
48
01468
Spring
49
96065
O-Ring
50
53190
Block Plate
51
01494
Inlet Bushing
52
95558
Retaining Ring
53
01089
Safety Lock Lever
54
01017
Pin
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade

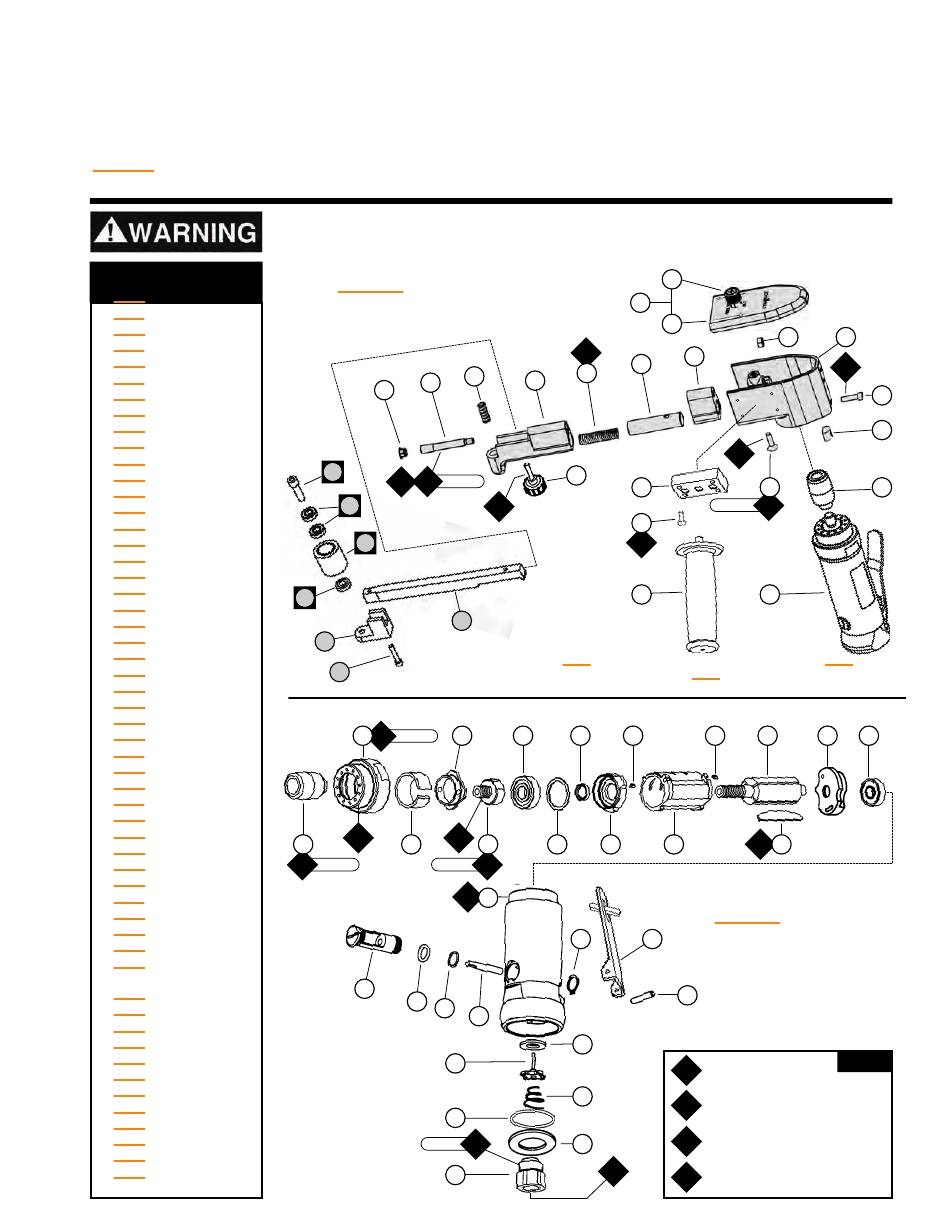

15360
Tool Assembly
10
9
8
1
A
T
3.0 N•m
3
2
3
4
7
5
6
Note: Shaded parts represent
Arm Assembly and boxed index numbers represents
T
27
34 N•m
29
G
G
2
2
22
28
T
3.5 N•m
17 N•m
A
8
42
43
44
45
47
49
T
23 N•m
51
Parts Page Reorder No. PD01•73R
Dynafile
Air Motor and Machine Parts
18
G
2
14
13
11
12
25
G
2
24
A
3
26
15367
Head Assembly. Shaded index numbers represent
31
33
35
30
32
34
T
41
52
53
46
48
50
O
1
Effective August, 2001
III
®
16
17
19
20
15
G
A
3
24
3.0 N•m
T
23
15368
15359
Contact Wheel Assembly.
35
37
39
O
36
38
1
15378
Motor
Assembly
54
Oil: O
Air Lube
O
1 =
Adhesive: A
= Loctite #242
A
3
A
= Loctite #567
8
G
Grease: G
= Loctite #771
2
T
Torque: N•m x 8.85 = In. - lbs.
2
6
21
22
Contact
40
KEY
