Dacor EDWH24S Planning Manual

Document # PG10-005
Product Dimensions
A
Front
Depth with door open
49 3/4" (126.4 cm)
Depth with door closed
C
Drain hose
Side
5 1/4" (13.5 cm) to
7 1/4" (18.5 cm)
2" (50.0 cm)
A = 1 3/8" (3.5 cm) B = 23" (58.40 cm) C = 2" (5.1 cm)
mILLENNIA StyLE HANDLE DImENSIoNS (PN ADWm24H)
Specifications subject to change without notice.
EDWH24S, IDWH24

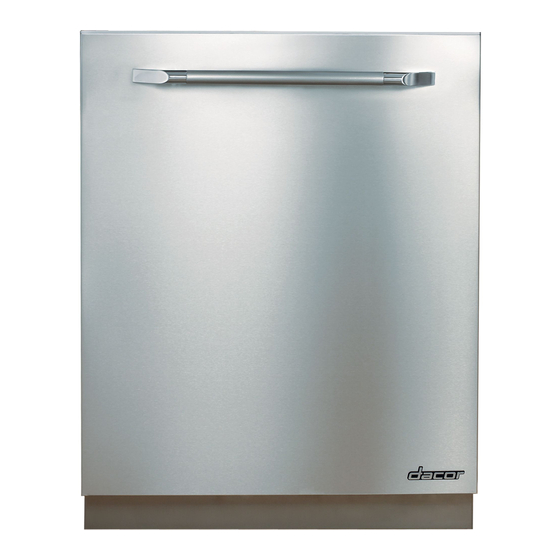

24" Wide Built-In Dishwasher
Product tolerances: ±1/16" (±1.6 mm)
otherwise stated
approximate
Shipping Weight
B
108 lbs. (49 kg.).
D Handle depth
Depth dimensions allow
for hose on back of unit
B
A
• Observe all governing codes and ordinances during planning
and installation. Contact your local building department for
further information.
• This appliance must be installed in accordance with the
accompanying installation instructions.
Front Panel Type
(A) Width
(B) Height
(C) Depth
(D) Handle Depth
1
Epicure handle kit PN: ADWE24H
2
Millennia handle kit PN: ADWM24H
3
Model IDWH24 requires installation of a customer provided, custom
overlay door panel. A custom overlay panel allows you to blend the exterior
of your dishwasher into the overall kitchen décor. See page 2/3 for more
information.
4
Height with required trim kit installed.
5
Without custom front panel installed.
Drain hose
54" (137.0 cm)
long
Water supply line
60" (152.0 cm)
long
UtILIty CoNNECtIoN DImENSIoNS
C
A
A = 7/8" (2.2 cm) B = 18 1/2" (47.0 cm) C = 2 3/8" (6.0 cm)
EPICUrE StyLE HANDLE DImENSIoNS (PN ADWE24H)
www.dacor.com
Revised 08/10/11 Page 1/3
PLANNING
GUIDE
WarnIng
Model EDWH24S
Stainless steel
24" (61.0 cm)
34 3/8" (87.4 cm) to 34 1/8" (86.7 cm) to
36 1/2" (92.7 cm) 36 1/8" (91.8 cm)
22 7/8" (58.1 cm) 22 7/8" (58.1 cm)
®
Epicure : 2 1/2" (6.4 cm) 1
®
Millennia : 2" (5.1 cm) 2
Do not modify
loop in hose
Back
3 1/4" (8.3 cm)
B
Phone: (800) 793-0093
Model IDWH24
Integrated
2
front panel
23 1/2" (59.7 cm)
4
5
NA
Power cord
44" (112.0 cm)
long
2 3/4" (7.0 cm)
C
10.4
