Dacor EDWH24S Planning Manual

Document # PG10-005

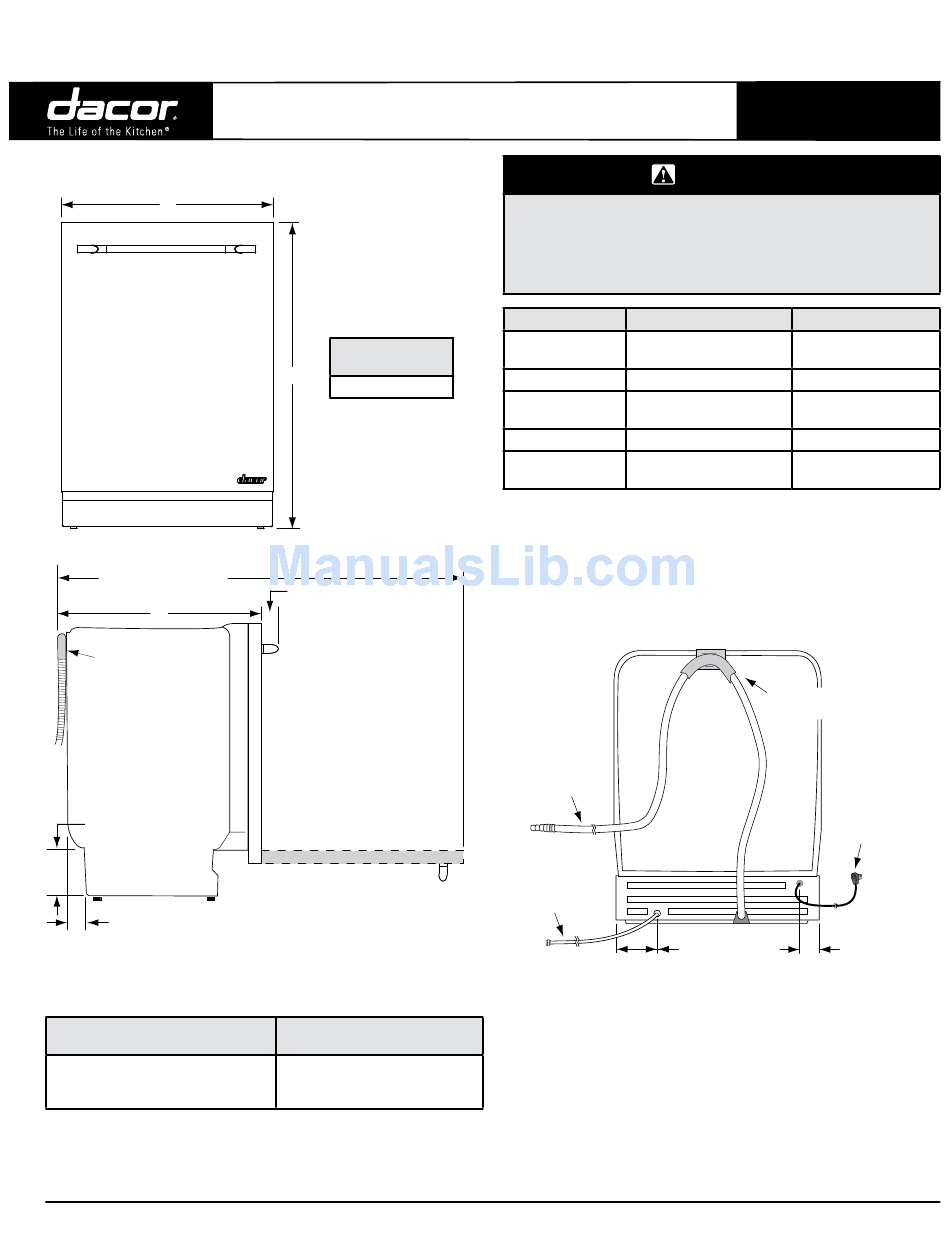

Product Dimensions
A
Front
Depth with door open
49 3/4" (126.4 cm)
Depth with door closed
C
Drain hose
Side
5 1/4" (13.5 cm) to
7 1/4" (18.5 cm)
2" (50.0 cm)

Electrical Specifications

Dedicated Circuit required
Grounded, 3-prong, electrical outlet
supplied by120 Vac,
60 Hz, 15 Amp. (circuit breaker)
■ The above specifications are for reference only. For exact
specifications see the product data label, located inside the right door
jamb.
■ Do not use an extension cord.
Specifications subject to change without notice.
Install all appliances according to accompanying installation instructions.
EDWH24S, IDWH24

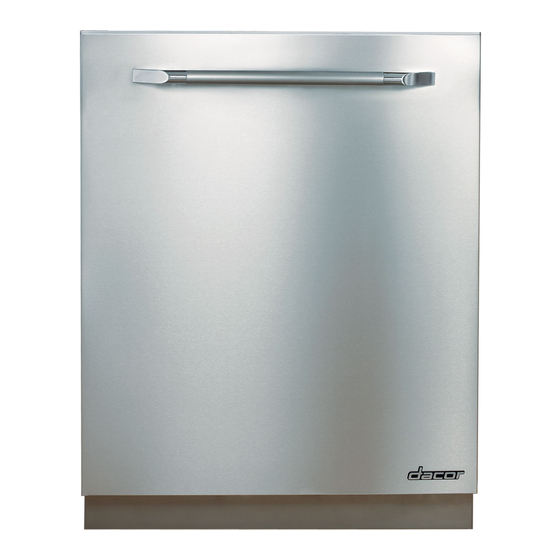

24" Wide Built-In Dishwasher
Product tolerances: ±1/16" (±1.6 mm)
otherwise stated
approximate
Shipping Weight
B
108 lbs. (49 kg.).
D Handle depth
Depth dimensions allow
for hose on back of unit
Total
Connected Load
11 Amp. @ 120 Vac, 60 Hz.
• Observe all governing codes and ordinances during planning
and installation. Contact your local building department for
further information.
• This appliance must be installed in accordance with the
accompanying installation instructions.
Model EDWH24S
Front Panel Type Stainless steel
(A) Width
34 3/8" (87.4 cm) to
(B) Height
36 1/2" (92.7 cm)
(C) Depth
Epicure
1
(D) Handle Depth
Millennia
1
Epicure handle kit PN: ADWE24H
Millennia handle kit PN: ADWM24H
2
Model IDWH24 requires installation of customer provided, custom overlay
door panel. It blends the exterior of the dishwasher into the overall kitchen
décor. Customer must also supply custom or standard appliance handle for
the front of the panel. See page 2/3 for more information.
3
Height with required trim kit installed.
4
Without custom front panel installed.
Drain hose
54" (137 cm) long
Water supply line
60" (152 cm) long
UtILIty CoNNECtIoN DImENSIoNS
Water Supply Specifications
■ Water Pressure: 4.2 to 125 p.s.i. (30-862 kPa) with minimum water
flow of 3 gallons (12 liters) per minute.
■ Water Supply Temperature:
140°F, 60°C) may be used. If a cold water supply is used, the washing
times will be longer but performance will not be affected.
■ Water Supply Valve requirement:
connection to dishwasher's water supply line is required in a location
where it is easily accessible after the dishwasher is installed. The
dishwasher water supply line is equipped with a 3/8" (10 mm) NPT
female compression fitting on the end.
www.Dacor.com
Revised 07/16/10 Page 1/3
PLANNING
GUIDE
WarnIng
Model IDWH24
Integrated
front panel
24" (61.0 cm) 23 5/8" (60.0 cm)
34 1/8" (86.7 cm) to
36 1/8" (91.8 cm)
24" (61.0 cm) 22 7/8" (58.1 cm)
®
: 2 1/2" (6.4 cm)
®
: 2" (5.1 cm)
Do not modify
loop in hose
Back
Power cord
44" (112 cm) long
3 1/4" (8.3 cm) 2 3/4" (7.0 cm)
Cold or hot water supply (maximum
3/8" water supply valve for
Phone: (800) 793-0093
