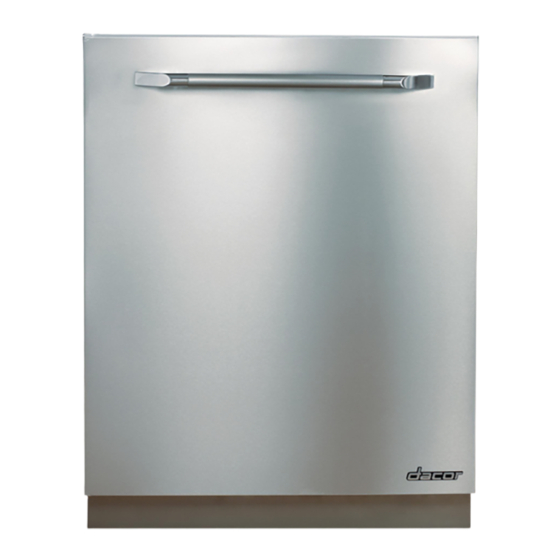

Dacor ED24 Installation Instructions Manual
24-inch dishwasher
Hide thumbs
Also See for ED24:
- Use and care manual (32 pages) ,
- Installation instructions manual (16 pages) ,
- Installation instructions manual (16 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
Use and Care Manual
Advertisement
Table of Contents
Related Manuals for Dacor ED24
Summary of Contents for Dacor ED24
- Page 1 Install atIon InstructIons 24 - Inch DIshwasher For use with models: ED24, ID24, MDH24, MDV24, PD24AG, PD24BK, PD24BU, PD24GN, PD24SG, PD24TS Part No. 101891 Rev. F...
-
Page 3: Table Of Contents
Email: customerservice@Dacor.com reference and the local electrical inspector’s use. Web site: www.Dacor.com All specifications are subject to change without notice. Dacor assumes no liability for changes to specifications. Important safety InstructIons Safety Symbols and Labels Important Information About Safety Instructions... -
Page 4: Important Safety Instructions
Important safety InstructIons To reduce the risk of fire, electric shock, serious injury or death when using the dishwasher, follow basic safety precautions, including the following: WARNING Do not install or operate this dishwasher if it has been damaged, dropped, has damaged electrical conduit or wires or is not working properly. -
Page 5: Product Specifications
Tolerances: +1/16”, -0, (+1.6 mm, -0) unless otherwise stated 1 1/8” (2.9 cm) 23 7/8” (60.6 cm) 2 3/8” (6. 0 cm) 26" (66.0 cm) ED24: 29 5/8" (75.2 cm) 33 3/4" (85.7 cm) ID24: 26 7/8" (68.3 cm) 36 1/4" (92.1 cm) 1 1/2”... -
Page 7: Preparing For Installation
preparIng for InstallatIon WARNING • Observe all governing codes and ordinances during planning and installation. Contact your local building department for further information. preparIng the locatIon IMPORTANT: Follow all cabinet and countertop minimum dimensions shown below to insure safe operation. Carefully check the location where the dishwasher is to be Prepare the installation location as shown below. -
Page 8: Power Supply Preparation
preparIng for InstallatIon power supply preparatIon plumBIng preparatIon • The water pressure must be between 20 and 120 psi WARNING (138-827 kPa). The household hot water heater should • The electrical power supply for the dishwasher must supply a minimum of 120°F water to the dishwasher be installed only by a licensed electrician as specified location for best results. -
Page 9: Installation Instructions
Use and care manual Model ID24 only: Integrated template, screws and 24-Inch door tensioning springs for heavy door panels Integrated Custom A bottle of Dacor ® Stainless Steel Cleaner is also Panel included with models having stainless steel doors. Installation... -
Page 10: Electrical Connection
InstallatIon InstructIons Remove the dishwasher junction box cover screw. The WARNING junction box is mounted to the dishwasher chassis • Do not install the dishwasher unless the electrical below the door. service provided meets the dishwasher specifications (see page 5). •... -
Page 11: Electrical Connection
InstallatIon InstructIons electrIcal connectIon (Continued) Feed the electric wire or cord into the utility hole in the side of the cut-out. Pull all of the slack out of the wire. If the unit is to be connected directly to the house wiring: •... -
Page 12: Plumbing Connections
InstallatIon InstructIons plumBIng connectIons InstallIng the unIt In the caBInet Connect one end of the 3/8” flexible braided fill hose to the water supply valve. • Make sure the water valve is off before sliding the unit Route the hose through the utility access hole in the into the cabinet. - Page 13 InstallatIon InstructIons InstallIng the unIt In the To attach the anti-tip bracket anchors, insert the anchoring screws through the 1/2” diameter access caBInet (continued) holes inside the dishwashing compartment on the ceiling and the sides, near the front. Make sure that the NOTE: The leg nuts can be removed to make the anchoring screws pass through the anti-tip brackets dishwasher lower.
-
Page 14: Drain Line Installation
InstallatIon InstructIons DraIn lIne InstallatIon Connect the flexible drain line to the air gap or connect it directly to the waste tee or disposal (see below). For installations without an air gap, put a loop in the drain line as shown. Tighten the holding clamp. -
Page 15: Verifying Proper Operation
Verify the hot water temperature by turning on the hot water faucet at the sink. The water going to the • If the appliance still does not work, contact the Dacor dishwasher must be between 120ºF and 150ºF. Customer Service Team at (800) 793-0093. - Page 17 Install atIon InstructIons...
