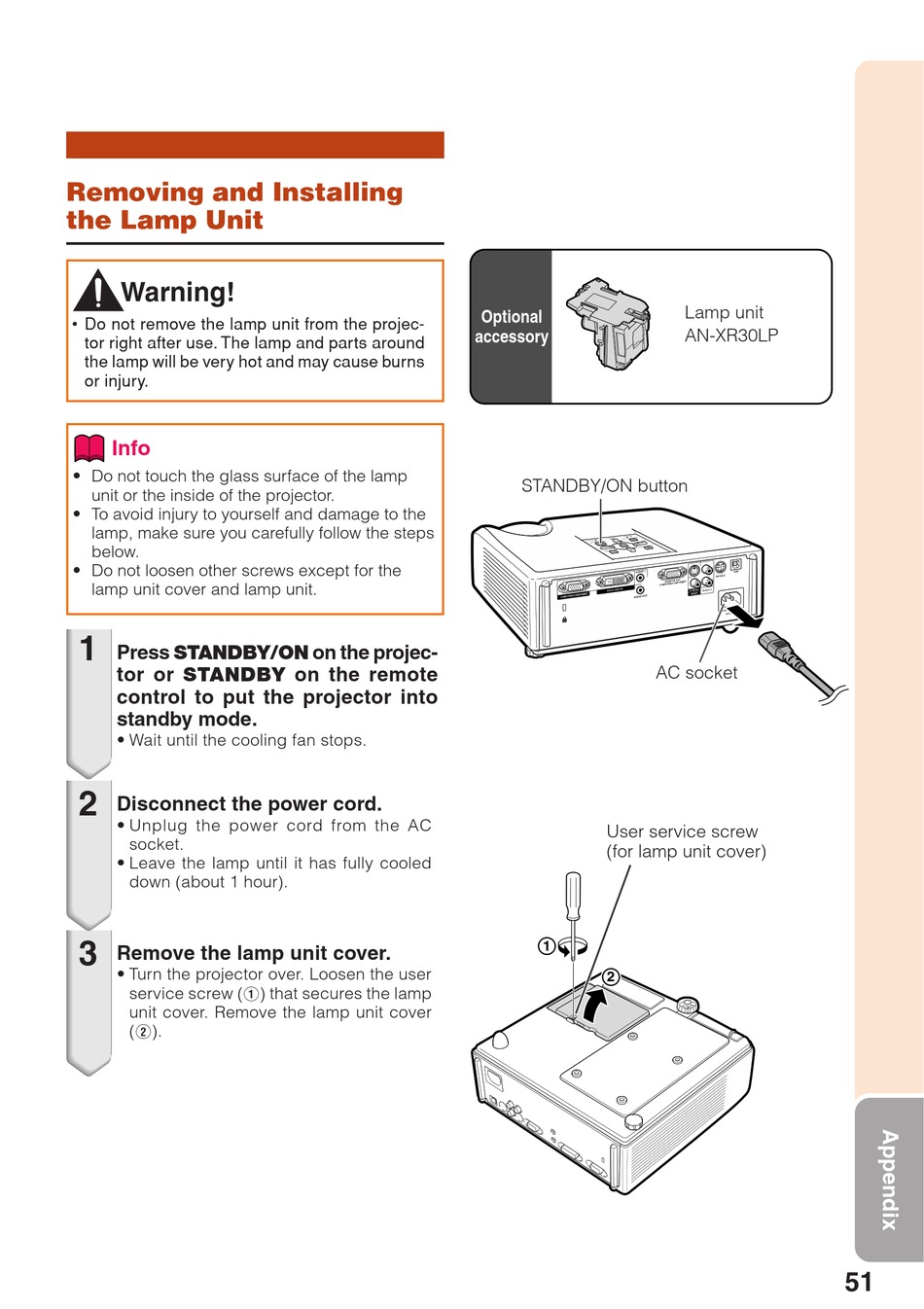

Removing and Installing
the Lamp Unit
Warning!
• Do not remove the lamp unit from the projec-
tor right after use. The lamp and parts around
the lamp will be very hot and may cause burns
or injury.
Info
• Do not touch the glass surface of the lamp
unit or the inside of the projector.
• To avoid injury to yourself and damage to the
lamp, make sure you carefully follow the steps
below.
• Do not loosen other screws except for the
lamp unit cover and lamp unit.
1
Press STANDBY/ON on the projec-
tor or STANDBY on the remote
control to put the projector into
standby mode.
• Wait until the cooling fan stops.
2
Disconnect the power cord.
• Unplug the power cord from the AC
socket.
• Leave the lamp until it has fully cooled
down (about 1 hour).
3
Remove the lamp unit cover.
• Turn the projector over. Loosen the user
service screw (1) that secures the lamp
unit cover. Remove the lamp unit cover
(2).
Optional
accessory
STANDBY/ON button
User service screw
(for lamp unit cover)
1
2
Lamp unit
AN-XR30LP
AC socket
