Rear View - Sharp PG-F200X - Notevision XGA DLP Projector Operation Manual

Part Names and Functions (Continued)
Z
Numbers in
is explained.

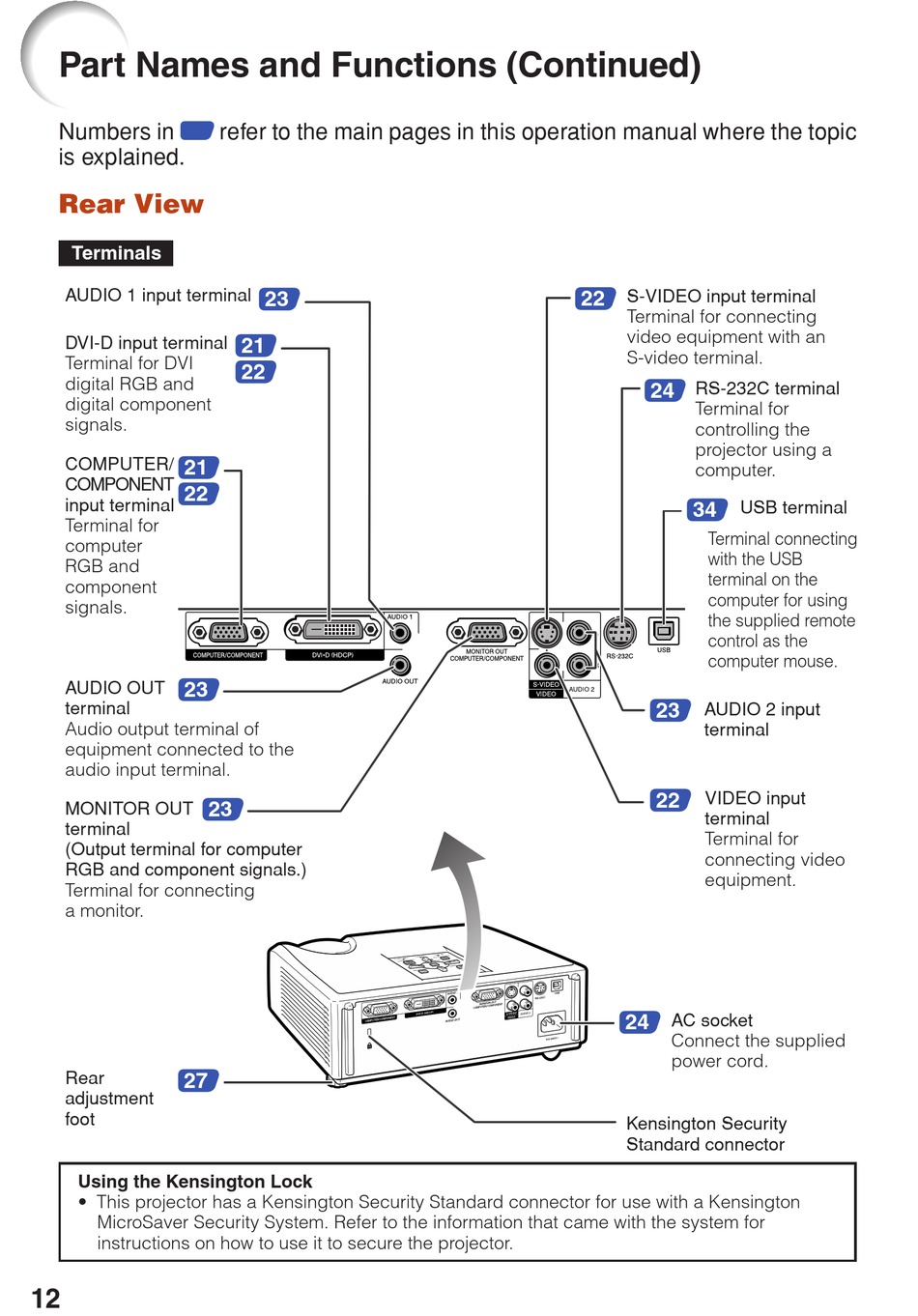

Rear View

Terminals
AUDIO 1 input terminal
DVI-D input terminal
Terminal for DVI
digital RGB and
digital component
signals.
COMPUTER/
21
COMPONENT
22
input terminal
Terminal for
computer
RGB and
component
signals.
AUDIO OUT 23
terminal
Audio output terminal of
equipment connected to the
audio input terminal.
MONITOR OUT
terminal
(Output terminal for computer
RGB and component signals.)
Terminal for connecting
a monitor.
Rear
27
adjustment
foot
Using the Kensington Lock
• This projector has a Kensington Security Standard connector for use with a Kensington
MicroSaver Security System. Refer to the information that came with the system for
instructions on how to use it to secure the projector.
12
refer to the main pages in this operation manual where the topic
23
21
22
23
S-VIDEO input terminal
22
Terminal for connecting
video equipment with an
S-video terminal.
24 RS-232C terminal
Terminal for
controlling the
projector using a
computer.
USB terminal
34
Terminal connecting
with the USB
terminal on the
computer for using
the supplied remote
control as the
computer mouse.
23
AUDIO 2 input
terminal
VIDEO input
22
terminal
Terminal for
connecting video
equipment.
AC socket
24
Connect the supplied
power cord.
Kensington Security
Standard connector
