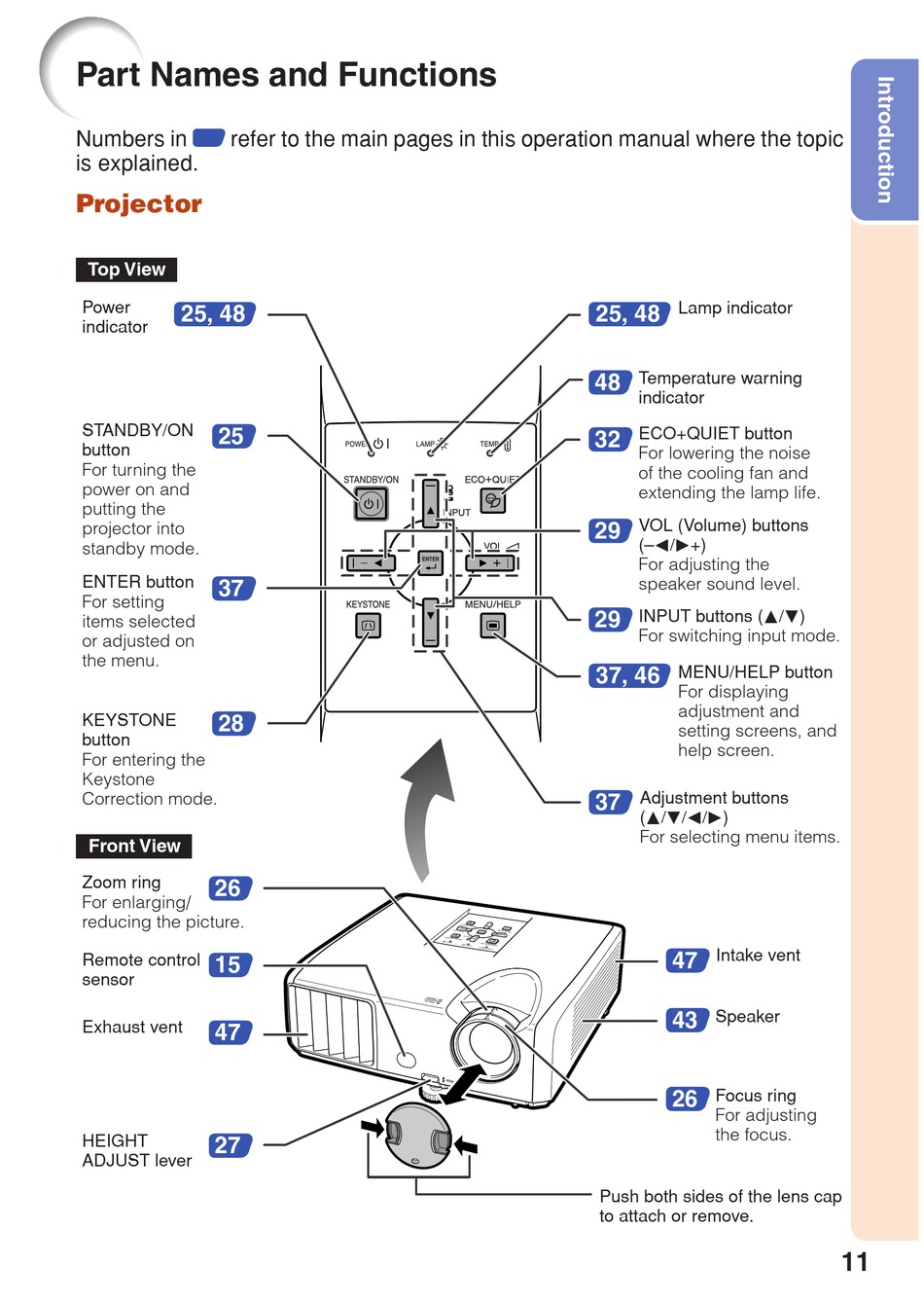

Part Names and Functions

Z
Numbers in refer to the main pages in this operation manual where the topic
is explained.
Projector
Top View
Power
25, 48
indicator
STANDBY/ON
25
button
For turning the
power on and
putting the
projector into
standby mode.
ENTER button
37
For setting
items selected
or adjusted on
the menu.
KEYSTONE
28
button
For entering the
Keystone
Correction mode.
Front View
Zoom ring
26
For enlarging/
reducing the picture.
Remote control
15
sensor
Exhaust vent
47
HEIGHT
27
ADJUST lever
Lamp indicator
25, 48
Temperature warning
48
indicator
ECO+QUIET button
32
For lowering the noise
of the cooling fan and
extending the lamp life.
VOL (Volume) buttons
29
(–O/Q+)
For adjusting the
speaker sound level.
INPUT buttons (P/R)
29
For switching input mode.
MENU/HELP button
37, 46
For displaying
adjustment and
setting screens, and
help screen.
Adjustment buttons
37
(P/R/O/Q)
For selecting menu items.
Intake vent
47
Speaker
43
Focus ring
26
For adjusting
the focus.
Push both sides of the lens cap
to attach or remove.
11
