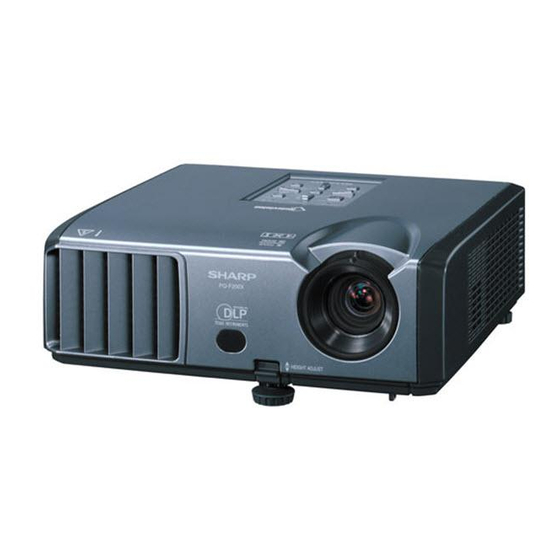

Sharp PG-F200X Service Manual

Hide thumbs Also See for PG-F200X:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual
TopPage
In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its orig-
inal condition and only parts identical to those specified should be used.
This Service Manual covers the differences from XR-30X. For other technical information, refer to the XR-30S/XR-
30X/XG-F210X (No. S47E3XR-30XS/) Service Manual.
MODIFIED PARTS ................................. . ............i
[1]
Specifications ......................................... . ....... 1-1
Parts marked with "
" are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for maintaining the
safety and performance of the set.

SERVICE MANUAL

DATA PROJECTOR
MODEL
OUTLINE
CONTENTS
[1]
ELECTRICAL ADJUSTMENT .......................2-1
[2]
Adjustment mode process menu ...................2-4
No. S77O5PG-F200X
PG-F200X
This document has been published to be used for
after sales service only.
The contents are subject to change without notice.
PG-F200X

Advertisement

Table of Contents
loading

Related Manuals for Sharp PG-F200X

Summary of Contents for Sharp PG-F200X

  • Page 1: Table Of Contents

    TopPage PG-F200X SERVICE MANUAL No. S77O5PG-F200X DATA PROJECTOR PG-F200X MODEL In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its orig- inal condition and only parts identical to those specified should be used.

  • Page 2: Outline And Modified Parts List Outline

    PG-F200X PG-F200X OUTLINE AND MODIFIED PARTS LIST Service Manual OUTLINE This Service Manual covers the differences from XR-30X. For other technical information, refer to the XR-30S/XR-30X/XG-F210X (No. S47E3XR- 30XS/) Service Manual. MODIFIED PARTS → (XR-30X PG-F200X) Ref.No. Description XR-30X PG-F200X...

  • Page 3: Safety Precaution

    PG-F200X PG-F200X SAFETY PRECAUTION Service Manual IMPORTANT SERVICE SAFETY NOTES IMPORTANT SERVICE SAFETY NOTES (for USA) Service work should be performed only by qualified service technicians who are thoroughly familiar with all safety checks and servicing guidelines as follows: WARNING Use an AC voltmeter with sensitivity of 5000 ohm per volt., or higher, sensitivity to measure the AC voltage...
  • Page 4 PG-F200X PRECAUTIONS A PRENDRE LORS DE LA REPARATION Ne peut effectuer la réparation qu' un technicien spécialisé qui s'est parfaitement accoutumé à toute vérification de sécurité et aux conseils suivants. AVERTISSEMENT Utiliser un voltmètre CA d'une sensibilité d'au moins 1. N'entreprendre aucune modification de tout circuit.

  • Page 5: Note To Service Personnel

    PG-F200X NOTE TO SERVICE NOTE POUR LE PERSONNEL PERSONNEL D’ENTRETIEN ////////////////////////////////////////////////////////////// ////////////////////////////////////////////////////////////// UV-RADIATION PRECAUTION PRECAUTION POUR LES RADIATIONS UV ////////////////////////////////////////////////////////////// ////////////////////////////////////////////////////////////// La source de lumière, la lampe, dans le projecteur émet The light source, lamp, in the projector emits small de petites quantités de radiation UV.

  • Page 6: Lamp Replacement

    PG-F200X //////////////////////////////////////////////////////////////// //////////////////////////////////////////////////////////////// UV-RADIATION PRECAUTION (Continued) PRECAUTION POUR LES RADIA TIONS UV (Suite) //////////////////////////////////////////////////////////////// //////////////////////////////////////////////////////////////// Lamp Replacement Remplacement de la lampe Note: Remarque: Since the lamp reaches a very high temperature during Comme la lampe devient très chaude pendant le units operation replacement of the lamp should be fonctionnement de l’unité, son remplacement ne doit...

  • Page 7: Power Unit

    PG-F200X WARNING: High brightness light source, do not stare into the beam of light, or view directly. Be especially careful that children do not stare directly into the beam of light. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO MOISTURE OR WET LOCATIONS.

  • Page 8: Precautions For Using Lead-Free Solder

    PG-F200X Precautions for using lead-free solder Employing lead-free solder • "PWBs" of this model employs lead-free solder. The LF symbol indicates lead-free solder, and is attached on the PWBs and service manuals. The alphabetical character following LF shows the type of lead-free solder.

  • Page 9: Chapter 1. Operation Manual Specifications

    Weight (approx.) 6.4 lbs. (2.9 kg) As a part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specifica- tion figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

  • Page 10: Chapter 2. Electrical Adjustment Electrical Adjustment

    "SS2" on SS menu. Model setting (Process menu) 1. Set as below. 1. Select the following group and subject. PG-F200X : 8 Group: CONFIRM Subject: MODEL Adjustment of CW index 1. Signal input: Send 256 STEP color bar. 1. The signal is input into computer 1.
  • Page 11 DVI input operation check 1. Send the video signal to the DVI terminal. 1. For PG-F200X, check that an image is prop- erly projected through the digital input. Monitor out check 1. Send signals to COMPUTER 1 and COM- 1.
  • Page 12 PG-F200X Adjusting point Adjusting conditions Adjusting procedure Model name and version check 1. Select the following group. 1. The model name appears in the MODEL field, and Group : INFO/VERSION. the firmware version in the VERSION field. Check that they are correct.

  • Page 13: Adjustment Mode Process Menu

    PG-F200X [2] Adjustment mode process menu 1st Layer 2nd Layer Default 1st Layer 2nd Layer Default ADJUST CW/Auto KS CW-INDEX OTHER SPECIAL USB-MODE HDCP-MODE K-SENS PULSE-MODE AD/DLP R-CONT EDID EEP-SELECT G-CONT EEP-WP B-CONT EXIT R-GAIN G-GAIN B-GAIN — — —...
  • Page 14 PG-F200X 1. Adjustment of ballast unit output power (lamp power) 1. List of parts requiring adjustment When replacing the following parts, adjust the ballast unit output power (lamp power). Part name Ref No. Part code Cement resistor R923 RR-FZA002WJZZ Ballast Control PWB ——...

  • Page 15: Parts Guide

    PG-F200X PartsGuide PARTS GUIDE No. S77O5PG-F200X DATA PROJECTOR PG-F200X MODEL Note: The reference numbers on the PWB are arranged in alphabetical order. CONTENTS PRINTED WIRING BOARD SUPPLIED ACCESSORIES ASSEMBLIES PACKING PARTS DUNTKE153FMF8 (MAIN Unit) (NOT REPLACEMENT ITEM) CABINET AND MECHANICAL...
  • Page 16 PG-F200X PRICE PART PARTS CODE DESCRIPTION RANK MARK DELIVERY [1] PRINTED WIRING BOARD ASSEMBLIES BALLAST POWER Ass'y (with Ballast Control Unit) DSETUE149FMG0 BALLAST POWER Unit *Order the BALLAST POWER Ass'y (DSETUE149FMG0) when Not Available replacing ballast power unit (DUNTKE149WEF0). BALLAST CONTROL Unit...
  • Page 17 PG-F200X [3] CABINET AND MECHANICAL PARTS 2-11 2-10 2-1-3 2-1-1 2-1-2...
  • Page 18 PG-F200X PRICE PART PARTS CODE DESCRIPTION RANK MARK DELIVERY [3] CABINET AND MECHANICAL PARTS Top Body Ass'y CBDYTA268WEF0 Top Body Not Available Cover GCOVAC364WJSA Decoration Plate HDECPA034WJSA Indicator HiNDPC319WJSC Cover GCOVAC242WJKC Bottom Body Ass'y CBDYUA309WEF0 Lamp Door Ass'y CDORUA075WEF0 2-1-1...
  • Page 19 PG-F200X [4] OPTICAL MECHANISM PARTS 4-33 4-33 4-11 4-33 4-27 4-33 4-33 4-25 4-16 4-24 4-29 4-36 4-33 4-34 4-33 4-13 4-34 4-33 4-33 4-12 4-33 4-33 4-31 4-33 4-31 4-31 4-26 4-33 4-31 4-31 4-31 4-31 4-28 4-18 4-33...
  • Page 20 PG-F200X PRICE PART PARTS CODE DESCRIPTION RANK MARK DELIVERY [4] OPTICAL MECHANISM PARTS Fixing Metal LANGKB121WJFW Chassis LCHSKA024WJFW Holder LHLDZA845WJKZ Screw (For Focus Ring), x3 LX-EZA027WJFN Spring MSPRPA095WJFW Spring MSPRPA103WJFW Spring MSPRPA097WJFW NFANRA077WJ00 Cover PCOVPA036WJSB 4-10 PCOVPA038WJSB Cover 4-11 PCOVZA089WJFW...
  • Page 21 PG-F200X [5] SUPPLIED ACCESSORIES PRICE PART PARTS CODE DESCRIPTION RANK MARK DELIVERY [5] SUPPLIED ACCESSORIES CCAPHA027WJSA Lens Cap AC Cord (for U.K. and Singapore) QACCBA036WJPZ AC Cord (for U.S.A. and Canada, etc.) QACCDA007WJPZ AC Cord (for Europe, except U.K.) QACCVA011WJPZ...
  • Page 22 PG-F200X [6] PACKING PARTS (NOT REPLACEMENT ITEM)
  • Page 23 PG-F200X PRICE PART PARTS CODE DESCRIPTION RANK MARK DELIVERY [6] PACKING PARTS (NOT REPLACEMENT ITEM) Packing Add SPAKAA329WJZZ Packing Case SPAKCD814WJZZ Accessory Case SPAKFB224WJZZ Wrapping Paper SPAKPA869WJZZ Packing Add SPAKXB477WJZZ Polyethylene Bag SSAKA0160CEZZ Model Name Label TLABV0003SEZZ Bar Code Label (for U.S.A., Canada, Australia, New Zealand and Oceania) TLABVA333WJZZ C.W.
  • Page 24 PG-F200X 2007 © COPYRIGHT XXXX BYSHARP CORPORATION ALL RIGHTS RESERVED. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission of the publisher.
