Summary of Contents for Dual MXD55

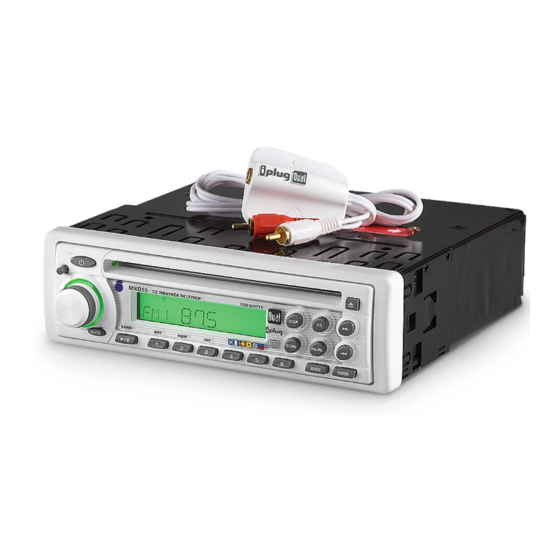

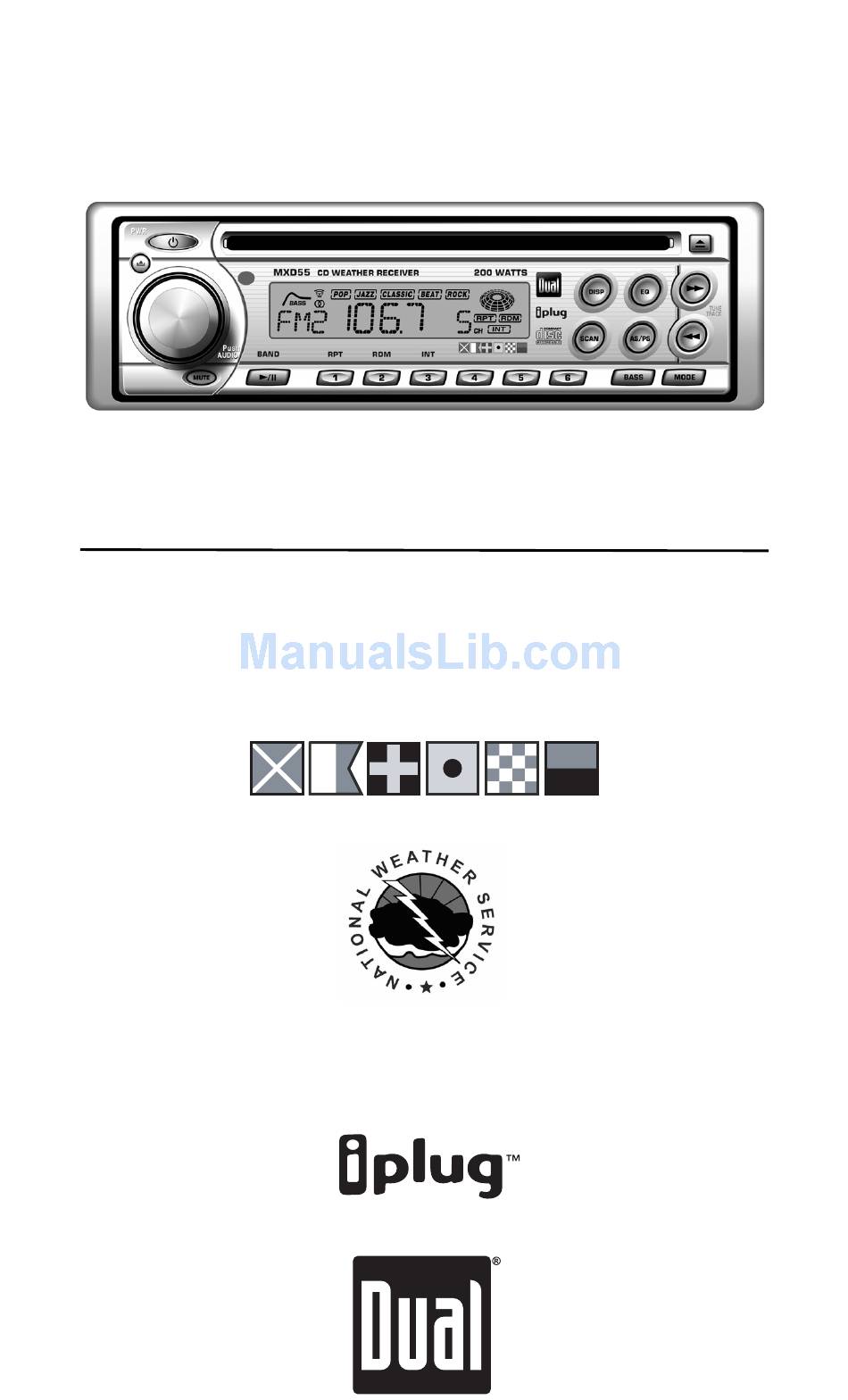

- Page 1 MXD55 INSTALLATION/OWNER’S MANUAL AM/FM/CD Marine Receiver MARINE...
-
Page 2: Installation
MXD55 INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. (consult a qualified technician for instructions) • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. -
Page 3: Wiring Diagram
MXD55 INSTALLATION Wiring Diagram FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The MXD55 uses one 10 amp ATM fuse located beside the wiring connector. -
Page 4: Operation
MXD55 OPERATION Control Locations Release Power Volume/Audio Adjustment Tuner Scan Display Auto Store/Preset Scan Tune/Track Down Eject Tune/Track Up *Semi-permanent Faceplate Attachment Before installation, remove trim ring and install supplied Phillips head #1 x 7/32” screw through left side of mounting frame into faceplate. -
Page 5: General Operation
PWR to turn the unit off. Mode Press MODE to select between AM/FM tuner, weatherband tuner, CD player and auxiliary input. Modes of operation are indicated in the display. Bass Boost Press BASS to activate and deactivate bass boost curve. - Page 6 MXD55 OPERATION General Operation Programmable Display Priority Programmable Clock Priority Reset Audio Bass Treble Balance Fader Source Audio Memory Press and hold DISP then press TUNE priority display. "FREQ" will momentarily appear in the display. Radio frequency (tuner modes) or CD elapsed time/track (CD player mode) will be displayed by default.
-
Page 7: Am/Fm Tuner Operation
Scan Tuning Band Frequency Spacing Storing and Recalling Station Presets Automatically Store Stations Preset Scan MXD55 AM/FM Tuner Operation Press TUNE or TUNE next strong station. Press TUNE or TUNE then release. "MANU" will momentarily appear in the display. Press TUNE move radio frequency up or down one step at a time. - Page 8 MXD55 OPERATION Weatherband Tuner Operation Manual Tuning Direct Tuning Weatherband Stations - Direct Tuning Table Button Preset 1 Preset 2 Preset 3 Preset 4 Preset 5 Preset 6 BAND Press TUNE or TUNE next weatherband station. Press preset 1-6 or BAND to directly access the 7 weatherband stations.
-
Page 9: Cd Player Operation
Some CD-Rs may be incompatible with this unit, depending CD-R Compatibility on media type and recording method. This model does not support CD-RWs. MXD55 CD Player Operation to skip to the beginning of the next track. to return to the beginning of the current... -
Page 10: Limited One-Year Warranty
UPS shipping address (P.O. Box not acceptable), and a daytime phone number with your shipment. 4. DUAL will pay the return shipping charges if the product is returned to an address within the 48 contiguous states. -
Page 11: Specifications
Frequency response: Wetherband Tuner Tuning range: General Total power output: Power output: Operating voltage: Speaker output impedance: Line output voltage: Dimensions: Design and specifications subject to change without notice. MXD55 OPERATION Specifications >92dB 10Hz-20kHz >65dB 1 Bit 87.5MHz-107.9MHz 8.5dBf 10dBf 40dB... -
Page 12: Troubleshooting
TOC data read error Cause Dual Electronics Corp. 21318 64th Ave. South Kent, WA 98032 Toll Free: 1-866-626-7863 www.dualav.com ©2005 Dual Electronics Corp. All rights reserved. NSA0405-V01 Action Check connections for proper voltage (11~16VDC) Check connection to ground Replace fuse...
