Summary of Contents for Dual MXDM66

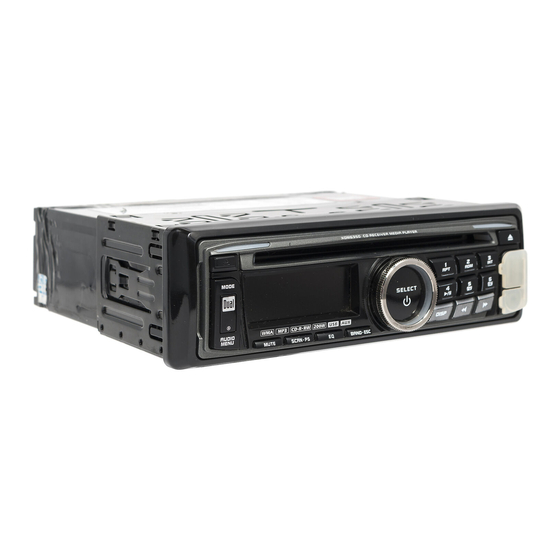

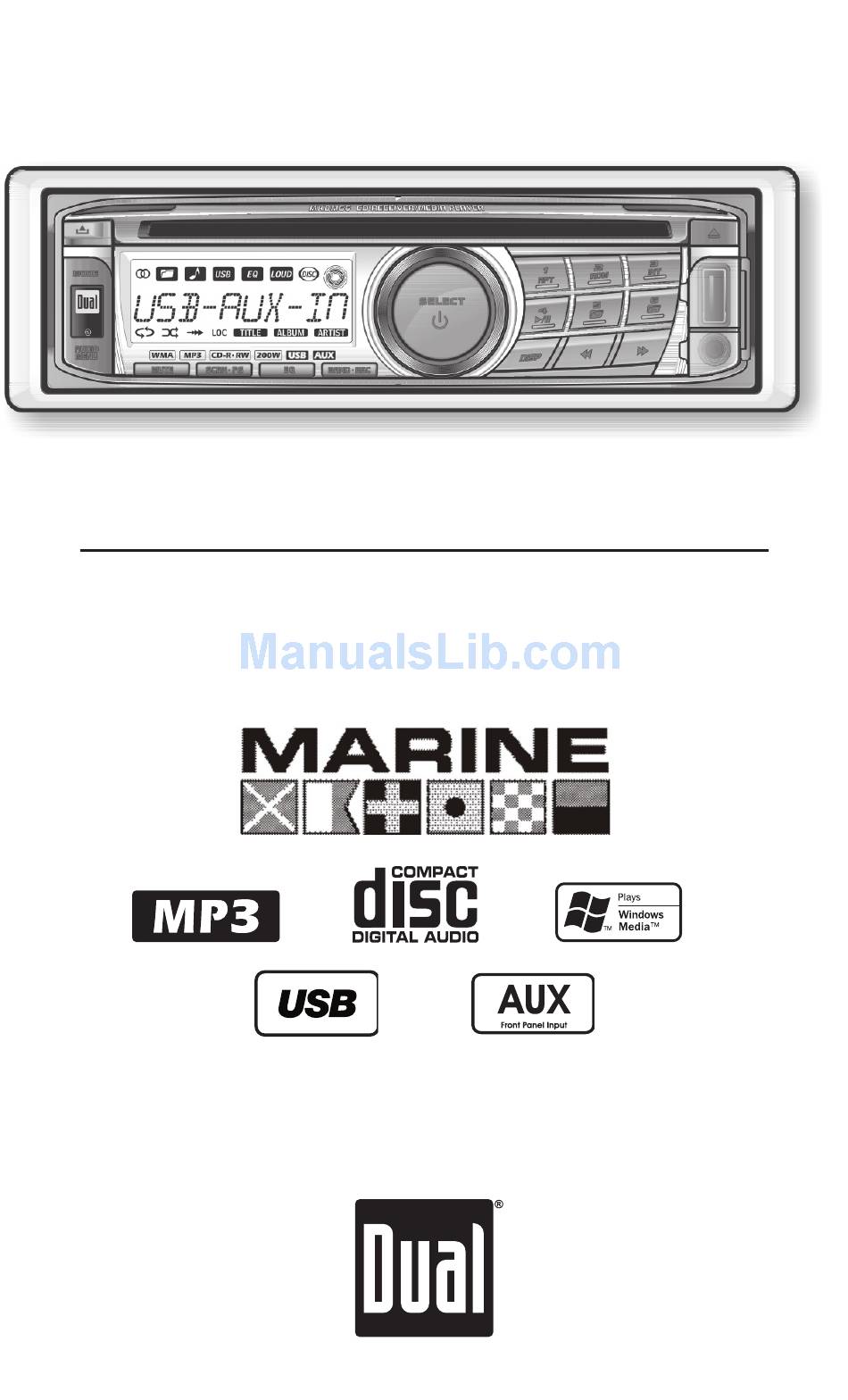

- Page 1 MXDM66 INSTALLATION/OWNER'S MANUAL AM/FM/CD/MP3/WMA/USB/3.5mm Marine Receiver with Detachable Face...
- Page 2 MXDM66 INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
-
Page 3: Wiring Diagram
Steering Wheel Interface Input (PAC SWI-PS required) FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The MXDM66 uses one 10 amp ATM fuse located beside the wiring connector. - Page 4 Audio/Menu Eject The MXDM66 allows playback of your favorite MP3 and WMA files recorded on CD-R and CD-RW discs. Its powerful on-board DSP processor decodes the compressed audio while maintaining near-CD sound quality. An internal SRAM buffer provides ESP (Electronic...
-
Page 5: Control Locations - Remote
MXDM66 OPERATION Control Locations - Remote Mode Preset 5/Folder Down Local/Distance Tuning Power ( )/Select Loudness Volume Up Display Audio/Menu Mute Tune/Track Up Volume Down Preset 4/Play/Pause Scan/PS Preset 1/Repeat Preset 3/Intro Band/ESC Preset 2/Random Tune/Track Down Preset 6/Folder Up... -
Page 6: General Operation
MXDM66 OPERATION General Operation Faceplate Removal Press RELEASE and pull away from the left side to remove. To re-install, insert right side of faceplate first then push left side to secure. Remove trim ring and install supplied #1 x 7/32” Phillips Semi-Permanent Faceplate Installation head screw through left side of mounting frame into faceplate. -
Page 7: Setup Menu
MXDM66 OPERATION General Operation Setup Menu Press and hold AUDIO/MENU for more than 3 seconds to access the setup menu, then press AUDIO/MENU to cycle through menu options. When desired option appears in the display, rotate the rotary encoder left/right to adjust or activate the desired function. - Page 8 MXDM66 OPERATION General Operation Press ESC to exit any menu adjustment mode. Escape Audio Press AUDIO/MENU momentarily to select between Volume (default), Bass, Treble, Balance, Fader, Subwoofer and Source Volume Level. VOLUME BASS TREBLE BALANCE FADER SUBWOOFER SOURCE LEVEL Bass Press AUDIO/MENU until BASS appears, then press SELECT ...
- Page 9 MXDM66 OPERATION AM/FM Tuner Operation Seek Tuning Press TUNE or TUNE for more than one second to seek the next strong station. Manual Tuning Press TUNE or TUNE momentarily to move radio frequency up or down one step at a time. Press and hold to advance quickly.
-
Page 10: Cd Player Operation
MXDM66 OPERATION CD Player Operation Insert CD With the label facing up, insert a standard size CD into the CD slot. The CD will automatically begin playback. Press EJECT to eject the CD. The unit will change to Eject CD previous mode of operation (tuner, AUX or USB). If the disc is not removed within 10 seconds, the unit will reload the disc. - Page 11 MXDM66 OPERATION CD Player Operation - MP3/WMA Files Playing an MP3/WMA Disc When an MP3/WMA encoded disc is first inserted, “READING” will appear in the display. Depending on the number of files and folders, this may take several seconds. Displaying Information Press DISP to select between track name (default), song title, artist, track number or clock &...
- Page 12 MXDM66 OPERATION CD Player Operation - MP3/WMA Files Folder/File Search Mode Press SELECT to enter the folder/file search mode. The head unit will read the CD, and a list of folders and files from the CD will be displayed, starting from the current directory. Folder/File Navigation Turn the rotary encoder to cycle through the list of folders and files.
- Page 13 MXDM66 OPERATION CD Player Operation - MP3/WMA Files Folder Access Press to select the previous folder. Press to select the next folder. Note: Folder access is only available on MP3/WMA discs recorded with more than one folder. Repeat Press RPT to enter the Repeat menu, then turn the rotary encoder to select one of the following options: •...
- Page 14 MXDM66 OPERATION CD Player Operation - MP3/WMA Files Media Compatibility The following types of discs/files are compatible: • CD-ROM (ISO), CD-R, CD-RW • CD-DA • MP3 data • WMA data The following types of discs/files are not compatible: • WMA files that are protected by DRM (Digital Rights Management).
- Page 15 MXDM66 OPERATION CD Player Operation - MP3/WMA Files Additional MP3/WMA An internal buffer provides ESP (Electronic Skip Protection) to Information virtually eliminate skipping. When playing a disc recorded with regular audio files (CD-DA or .WAV) and MP3/WMA files, the unit will play the MP3/WMA files only. Only MP3 files with filename extension (.mp3) can be played.
- Page 16 MXDM66 OPERATION USB Operation - MP3/WMA Files (Optional) Play MP3/WMA files from most mass storage devices by Connecting a USB Device connecting them to the MXDM66's USB port. (sold separately) When a USB device is first connected, press MODE to Playing Music access USB mode. “READING” will appear momentarily in the display. Depending on the number of files and folders, this may take several seconds.
- Page 17 MXDM66 OPERATION USB Operation - MP3/WMA Files (Optional) Title Icon This icon will illuminate when the song title is displayed. Artist Icon This icon will illuminate when the artist name is displayed. Folder Icon This icon will illuminate when the folder name is displayed. Track Icon ...
- Page 18 MXDM66 OPERATION USB Operation - MP3/WMA Files (Optional) Character Support Maximum character display information • Track name – 32 character maximum • Directory name – 32 character maximum • *Song title – 32 character maximum • *Artist name – 32 character maximum *Song title and artist name will only be displayed if included with the MP3/WMA file.
- Page 19 MXDM66 OPERATION USB Operation - MP3/WMA Files (Optional) Additional MP3/WMA Only MP3 files with filename extension (.mp3) can be played. Information Only WMA files with filename extension (.wma) can be played. Do not attempt to play non-MP3/WMA files with the MP3/WMA extension. Sampling Frequency Rates 8kHz ~ 48kHz 32kHz ~ 48kHz Transfer Bit rates...
-
Page 20: Limited One Year Warranty
A slight adjustment of any custom Dual Electronics Corp. warrants this product to controls may save you a service call. the original purchaser to be free from defects in material and workmanship for a period of one 2. -
Page 21: Troubleshooting - General
MXDM66 OPERATION Troubleshooting - General Problem Cause Action Yellow wire not connected or incorrect voltage Check connections for proper Unit will not turn on Red wire not connected or incorrect voltage voltage (11~16VDC) (no power) Black wire not connected Check connection to ground Fuse blown Replace fuse Speaker wires not connected Check connections at speakers Unit has power ... -
Page 22: Specifications
MXDM66 OPERATION Specifications CD Player Frequency response: 10Hz-20kHz Channel separation @ 1kHz: >65dB D/A converter: 1 Bit FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 8.5dBf 50dB quieting sensitivity: 10dBf Stereo separation @ 1kHz: 40dB Frequency response: 30Hz-13kHz AM Tuner Tuning range: 530kHz-1710kHz Usable sensitivity: 22uV Frequency response: 30Hz-2.2kHz... - Page 23 MXDM66 OPERATION Notes...
- Page 24 Toll Free: 1-866-382-5476 www.dualav.com ©2008 Dual Electronics Corp. All rights reserved. Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and or other countries. Other trademarks and trade names are those of their respective owners.
