- Page 1 MMC36BT INSTALLATION/OWNER'S MANUAL Marine Receiver with Speaker Zone Control Weather Band Tunner Inputs...
-
Page 2: Installation
MMC36BT Installation Please read entire manual before installation. Mounting the Controller 1. Choose a mounting location the dash board or instrument panel that will allow room behind to run cables to the black box. Consider how you will use the AUX IN, LINE... - Page 3 MMC36BT Wire Connection Tip: (Optional MWR17) When a suitable ground wire is (Red) not present in the vehicle wiring ACC (+12V) (Black) ANTENNA harness, connect the black ground (Black) GROUND (-) wire to the vehicle chassis. (Brown) CAMERA (+) (Blue)
-
Page 4: Control Locations - Receiver

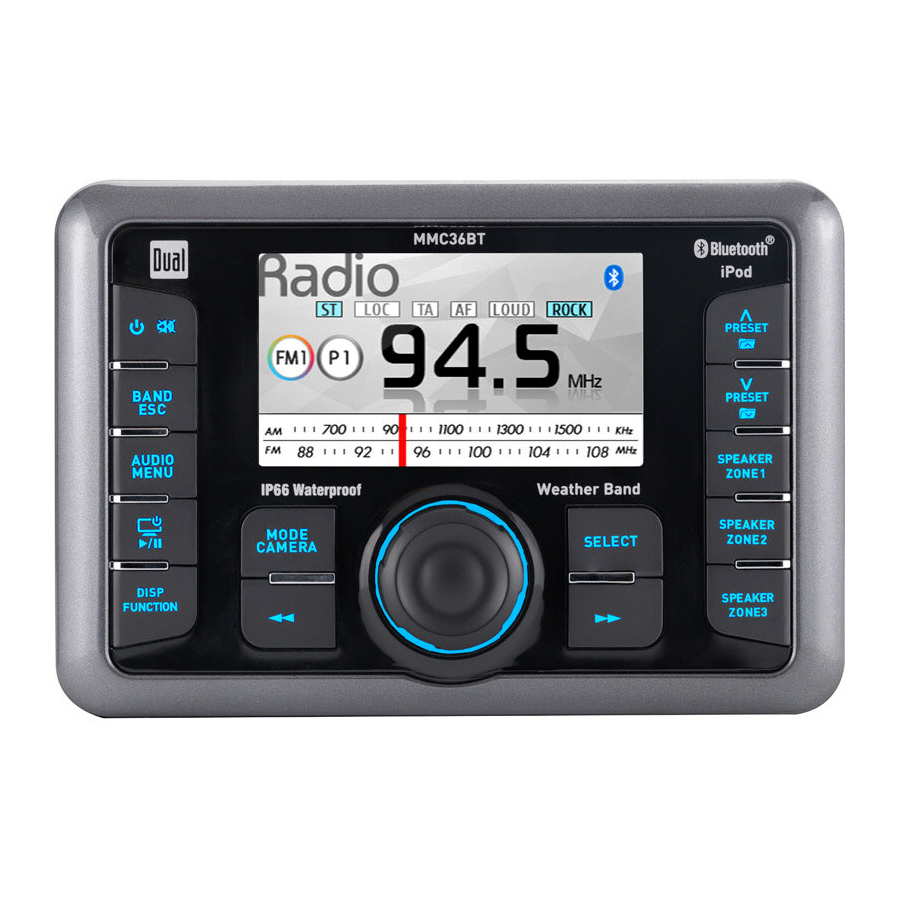

MMC36BT Control Locations - Receiver Preset Up / Folder Up Tune / Track Down Preset Down / Folder Down Mode / Camera Speaker Zone 1 Disp / Function Screen / Play / Pause Speaker Zone 2 Audio / Menu Speaker Zone 3... -
Page 5: General Operation
Press again to resume listening at the previously selected volume. The MMC36BT includes the IP35USB adapter which allows the Auxiliary Inputs AUX and USB inputs on the black box to be mounted in the boats console for easy access. Refer to the wiring diagram for connection instructions. - Page 6 MMC36BT General Operation Setup Menu Press MENU to toggle through and select one of the following setup menus: Audio, General, Gain and Radio. 1. Once the desired menu is displayed, rotate the volume knob to scroll through the list of menu features.
-
Page 7: General Setup Menu
MMC36BT General Operation General Setup Menu Menu Function Options Action Programs the unit to not scroll any information on the display. Once Programs the unit to only scroll information once. Scrolling Option Programs unit to scroll information once every 15 seconds 15Sec (default). - Page 8 MMC36BT General Operation Radio Setup Menu Menu Function Options Action Programs the unit to USA tuner spacing. (200kHz for FM and 10kHz for AM). Tunner Programs the unit to South American tuner spacing. S-America Frequency (100kHz for FM and 10kHz for AM).
-
Page 9: Am/Fm Tuner Operation
MMC36BT AM/FM Tuner Operation Press TUNE or TUNE momentarily to change Manual Tuning radio frequency up or down one step at a time. Press and hold to advance quickly. Seek Tuning Press TUNE or TUNE for more than two seconds (then release) to automatically seek and tune to the next strong station. - Page 10 MMC36BT MP3 Operation Playing MP3 Files To play MP3 files, connect a USB device containing MP3 files. “Loading" will flash in the display. Depending on the number of files and folders, this may take several seconds. Displaying Information Press DISP to cycle between track information and file/ folder information.
- Page 11 MMC36BT MP3 Operation File/Folder Search Begin Searching Press SELECT to enter the file/folder search mode. A list of all the folders from the device will be displayed. Note: Any files located in the root directory will be located in the folder named "ROOT".
- Page 12 MMC36BT MP3 Operation File/Folder Compatibility and Support Type Specification Compatible File Types • MP3 data (.mp3) • DRM protected files • WMA lossless • Apple lossless • WMA Pro Incompatible File • MP3 Pro Types • MP3 playlists • M4A/AAC data •...
-
Page 13: Iphone / Ipod Operation
MMC36BT iPhone / iPod Operation Connect an iPod Device The MMC36BT features direct USB control for iPhone and iPod. (Not Included) To play music from an iPhone or iPod device, connect the USB cable (included with your Apple device) to the IP35USB adapter in the console. -
Page 14: Bluetooth Operation
Connecting a Paired Device Most Bluetooth devices support the auto-connect feature, and will connect automatically if the device is in range when the MMC36BT is powered-on. If your device was previously paired but does not connect, use these instructions below. -
Page 15: Bluetooth Reset
2) Press and hold MENU for 3 seconds to reset Bluetooth settings back to factory default. Compatibility Note: Due to the differences in Bluetooth technology, some mobile devices may be incompatible, function improperly or may not support all features when used with the MMC36BT. Bluetooth Setup Menu Options Function... -
Page 16: Limited Two-Year Warranty
2. If you require service during the original purchase. warranty period, you must carefully pack the product (preferably in the Dual Electronics Corp. agrees, at our original package) and ship it by prepaid option, during the warranty period, transportation with a copy of the original... -
Page 17: Troubleshooting
MMC36BT Troubleshooting Problem Cause Action Yellow wire not connected or incorrect Check connections for proper voltage Red wire not connected or Unit will not turn on voltage (11-16VDC) incorrect voltage (no power) Black wire not connected Check connection to ground... -
Page 18: Specifications
MMC36BT Specifications FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 10dBf 50dB quieting sensitivity: 20dBf Stereo separation @ 1kHz: 38dB Frequency response: 30Hz-13kHz AM Tuner Tuning range: 530kHz-1710kHz Usable sensitivity: 24uV Frequency response: 30Hz-2.3kHz Compatibility: High Speed USB 2.0 USB Class:... -
Page 19: Fcc Compliance
MMC36BT FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 20 Monday-Friday, 9AM-5PM, EST www.dualav.com ©2017 Dual Electronics Corp. All rights reserved. iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. “Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards.
