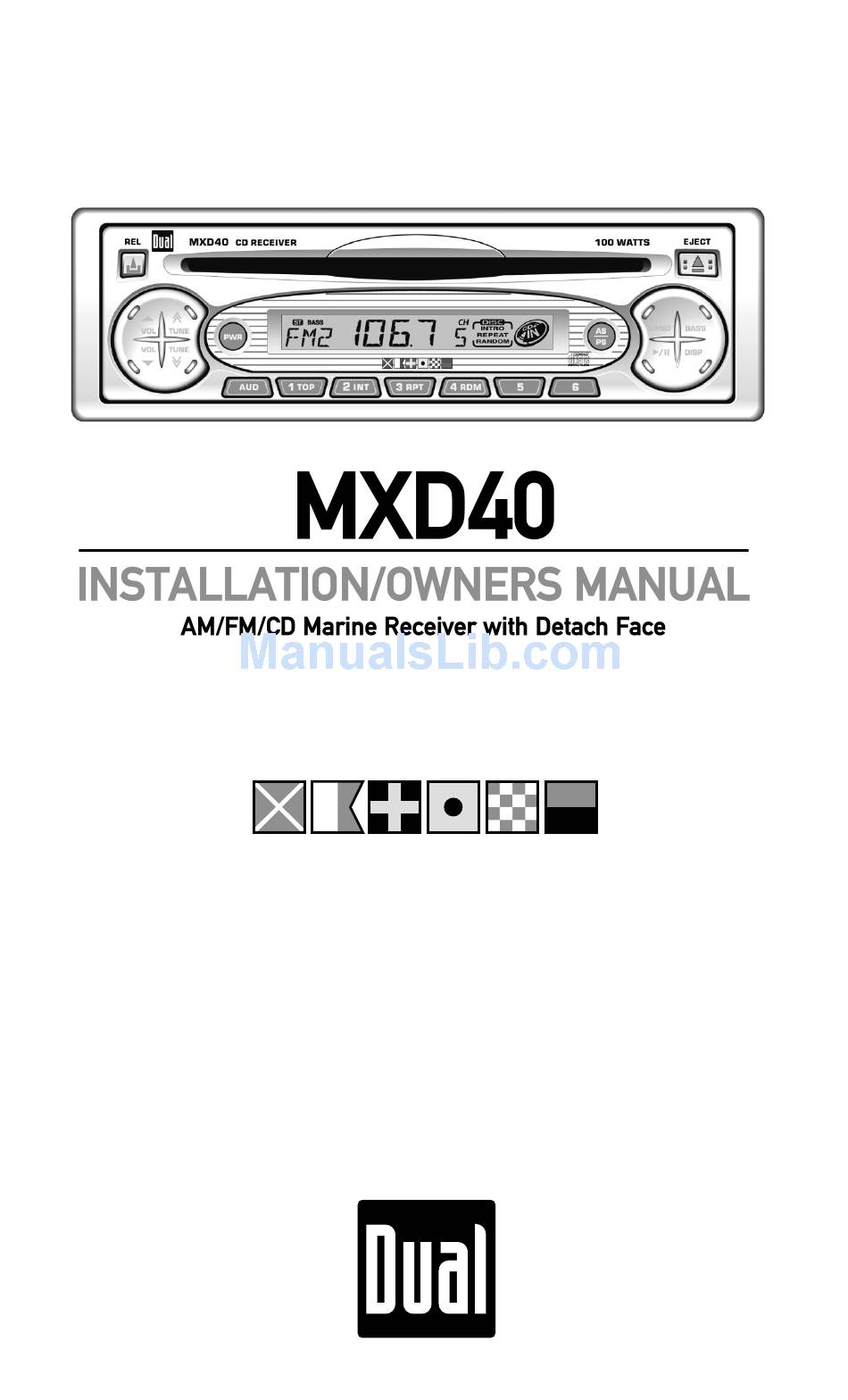

- Page 1 MARINE...
- Page 2 Please read entire manual before installation. • Disconnect negative battery terminal. (consult a qualified technician for instructions) • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. •...
- Page 3 When replacing fuses, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage radio. The MXD40 uses one .5 amp AGC fuse (Ignition) and one 5 amp AGC fuse (Battery) located in-line.

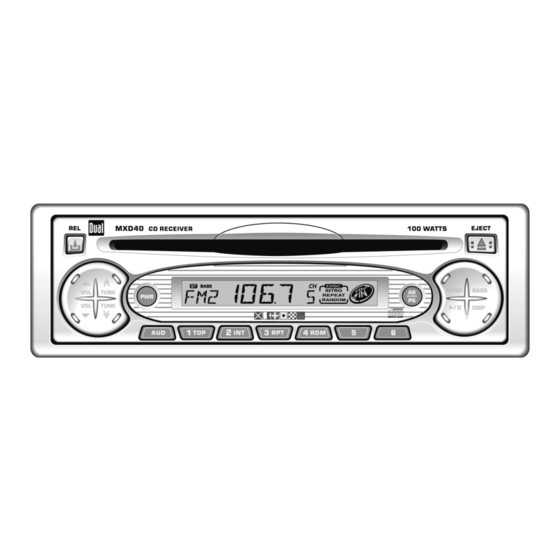

- Page 4 Auto Store/Preset Scan MARINE The MXD40 Marine Receiver features UV resistant faceplate construction and clear-coated circuit boards for long lasting protection against the elements in the marine environment. Both chassis and mounting sleeve include an EDP (Electro-Deposit Plating) process for increased corrosion resistance.
- Page 5 Press and pull away from the left side to remove. To re-install, insert right side of faceplate first then push left side to secure. *For semi-permanent faceplate installation, remove trim ring and install supplied Phillips head #1 screw through left side of mounting frame into faceplate.
- Page 6 Press and hold for more than 2 seconds to upon initial installation. The the faceplate. Press to select between Volume (default), Bass, Treble, Balance & Fader. Press until appears Press to adjust (6 maximum / -6 minimum) Press until appears Press to adjust (6 maximum / -6 minimum)
- Page 7 Press momentarily to seek the next strong station. Press for more than 2 seconds, then press momentarily to move radio frequency up or down one step at a time. Press and hold to advance quickly. If tuning is not adjusted for 2 seconds, the unit will return to seek tuning mode (default).
- Page 8 With the label facing up, insert a standard 5" CD into the CD slot. The CD will automatically begin playback. Press the button to stop and eject the CD. The unit will change to tuner mode. Press to skip to the beginning of the next track. Press to return to the beginning of the current track.
- Page 9 If the product requires warranty service, you must prepay the initial shipping charges. DUAL will pay the return shipping charges if the product is returned to an address within the USA. Namsung America Inc.
- Page 10 Signal-to-noise: Frequency response: Channel separation @ 1kHz: D/A converter: Tuning range: FM mono sensitivity: 50dB quieting sensitivity (stereo): Stereo separation @ 1kHz: Frequency response: Tuning range: AM sensitivity: Frequency response: Total system power: Power output: Power supply: Speaker output impedance: Fuse: Dimensions: Specifications subject to change without notice...
- Page 11 Problem Yellow wire not connected or incorrect voltage Red wire not connected or incorrect voltage Black wire not connected Fuse blown Speaker wires not connected One or more speaker wires touching each other or touching chassis ground Yellow or red wire touching chassis ground Speaker wires touching chassis ground Incorrect fuse rating Unit is not mounted correctly or backstrap is...
- Page 12 Namsung America Inc. 21318 64th Ave. South Kent, WA 98032 Toll Free: 1-866-626-7863 ©2003 Namsung America, Inc. EVOK0603-V01...
- Page 13 DMP65 INSTALLATION/OWNERS MANUAL 6.5" Dual Cone Marine Speakers MARINE...
-
Page 14: Installation
DMP65 INSTALLATION Preparation/Installation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. (consult a qualified technician for instructions) • Use extreme caution when drilling holes to avoid damaging fuel lines, hydraulic lines or existing wiring. Getting Started •... -
Page 15: Limited One-Year Warranty
DMP65 Limited One-Year Warranty What to do? If the product requires warranty service, you must prepay the initial shipping charges. DUAL will pay the return shipping charges if the product is returned to an address within the USA. Namsung America Inc. -
Page 16: Specifications
DMP65 SPECIFICATIONS Specifications Outside Diameter Mounting Depth Mounting Height Cut-out Diameter Frequency Response Sensitivity Impedance RMS Power Peak Power 7.13" 2.5" .88" 5.13" 45Hz-18kHz, ±3dB 90dB 1W/1M 4 ohms 20 Watts 60 Watts Specifications subject to change without notice Namsung America Inc. 21318 64th Ave.
