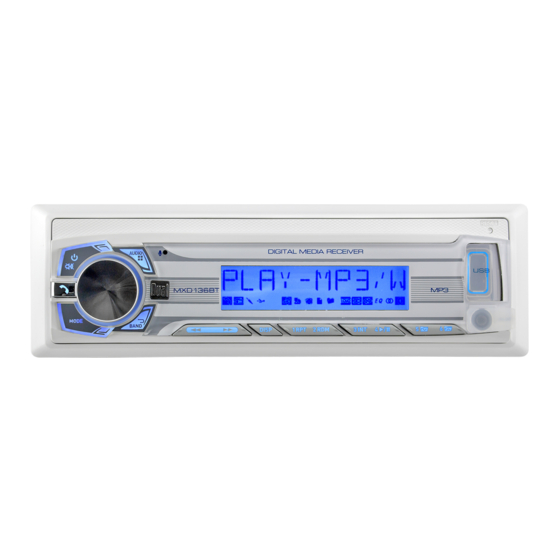

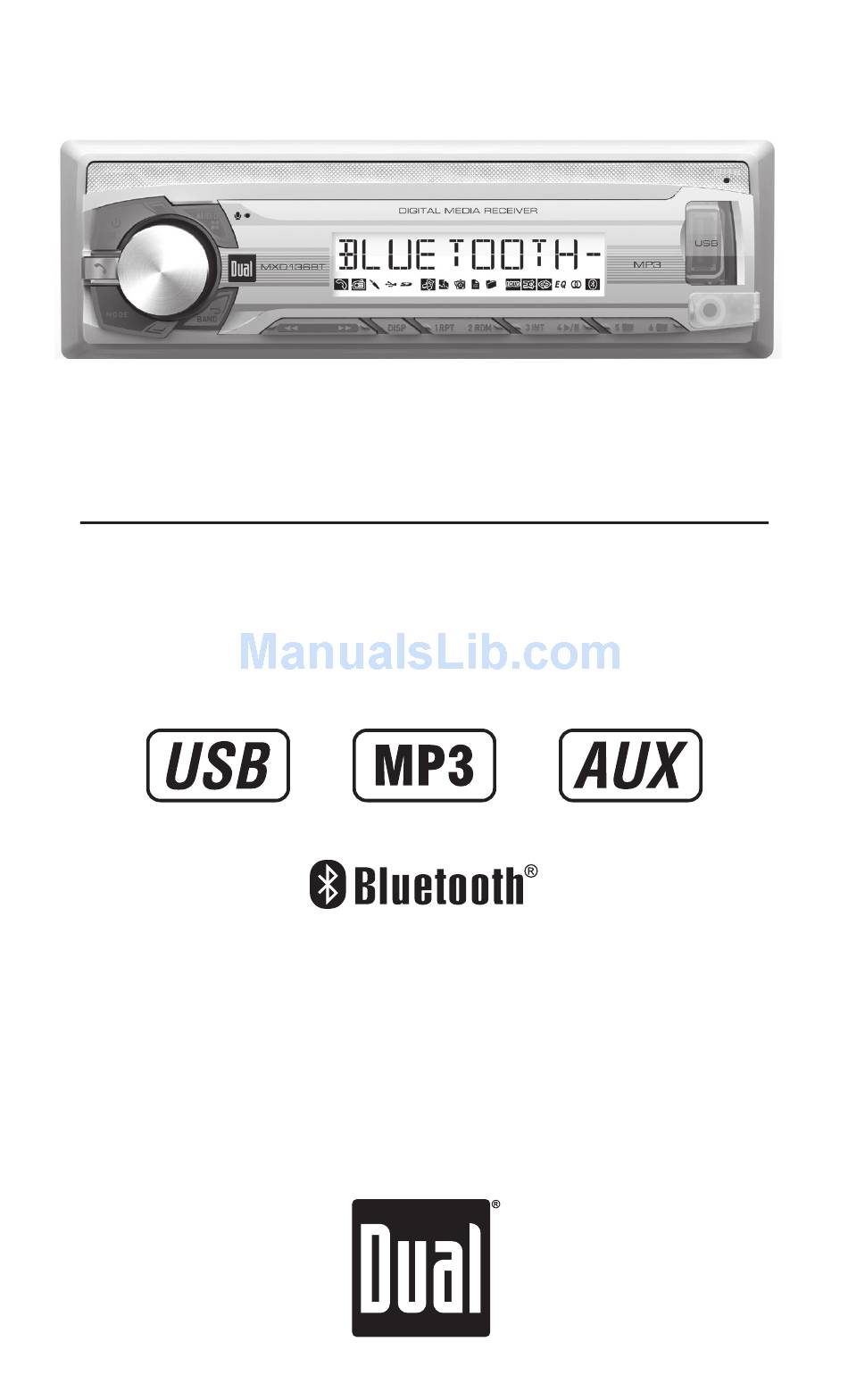

- Page 1 MXD136BT INSTALLATION/OWNER'S MANUAL AM/FM Marine Receiver with Bluetooth...
- Page 2 MXD136BT INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
- Page 3 MXD136BT INSTALLATION Wiring Diagram Antenna Connector 10 AMP AGC Fuse FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The unit uses one 10 amp AGC fuse located...
- Page 4 MXD136BT OPERATION Control Locations Power / Mute Preset 3 / Intro Volume Knob Preset 2 / Random Audio / Menu Preset 1 / Repeat USB Port Display Reset Tune Up Auxiliary Input Tune Down Preset 6 / Folder Up Band / Go Back...
- Page 5 MXD136BT OPERATION General Operation Power On/Off Press or any other button to turn the unit on. Press again to turn the unit off. Mode Press MODE to select between AM/FM, USB, Bluetooth or auxiliary input modes. Modes of operation are indicated in the display. USB mode will not appear unless a USB device is connected.
- Page 6 MXD136BT OPERATION General Operation Press the volume knob to select between Bass, Treble, Audio / Menu Balance, Fader, Loudness, Distance and Stereo. FADER LOUDNESS BASS TREBLE BALANCE STEREO Press the volume knob until BASS appears. Bass Rotate the volume knob left/right to adjust. (-7 minimum / +7 maximum) Press the volume knob until TREBLE appears.
- Page 7 MXD136BT OPERATION General Operation - Setup Menu Menu Function Options Action Press SELECT to seek and save 6 strong stations in the Auto Station AUTO STORE current band. (Tuner mode only) Store LOCAL OFF Activates distance tuning (Tuner mode only). Local/Distance Activates local tuning for strong station reception only (Tuner ...
- Page 8 MXD136BT OPERATION USB Operation Connecting a USB Device To play MP3 files from most USB mass storage devices, line (sold separately) up the USB connector and insert the USB device into the unit's USB port. Playing Music When a USB device is first connected, “LOAD” will appear in the display and playback will begin momentarily.
- Page 9 MXD136BT OPERATION USB Operation Media Compatibility *Song title, artist name and album name will only be displayed if included with the MP3 file. The following types of files are compatible: • MP3 data The following types of files are not compatible: • MP3 PRO format •...
- Page 10 MXD136BT OPERATION Bluetooth Operation ® Pairing a Device Preparation Before you can use a Bluetooth device, it must be paired and connected. Make sure that Bluetooth is activated on your device before you begin the pairing process. Pairing a New Device The unit broadcasts the pairing signal constantly when no devices are currently connected.
- Page 11 MXD136BT OPERATION Bluetooth Operation ® Receiving and Ending Phone Calls Receiving a Phone Call Incoming phone calls will automatically appear on the display and a ring tone will be heard. Note: The volume of the ring tone depends on the volume level of the unit. The incoming ring tone may not be heard if the volume is set to a low level or mute is activated.
- Page 12 MXD136BT OPERATION Bluetooth Operation ® Streaming Audio Operation The unit supports A2DP (advanced audio distribution profile) wireless streaming audio from your Bluetooth mobile device directly to your head unit. You can also control your music from the front panel of the head unit using AVRCP (audio video remote control profile).
-
Page 13: Troubleshooting
MXD136BT OPERATION Troubleshooting Problem Cause Action Yellow wire not connected or incorrect Check connections for proper voltage Red wire not connected or Unit will not turn on voltage (11~16VDC) incorrect voltage (no power) Black wire not connected Check connection to ground Fuse blown Replace fuse... - Page 14 2. If you require service during the the original purchase. warranty period, you must carefully pack the product (preferably in the Dual Electronics Corp. agrees, at our original package) and ship it by prepaid option, during the warranty period, transportation with a copy of the original...
- Page 15 MXD136BT OPERATION FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 16: Specifications
MXD136BT OPERATION Specifications FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 10dBf 50dB quieting sensitivity: 25dbu Stereo separation @ 1kHz: >30dB Frequency response: 30Hz-13kHz AM Tuner Tuning range: 530kHz-1710kHz Usable sensitivity: <42dBu Frequency response: 30Hz-2.2kHz General Speaker output impedance: 4~8 ohms Line output voltage: 2 Volts RMS... - Page 17 MXD136BT OPERATION Notes...
- Page 18 Toll Free: 1-866-382-5476 9AM-5PM EST, Monday-Friday www.dualav.com ©2016 Dual Electronics Corp. All rights reserved. The Bluetooth ® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Namsung is under license. Other trademarks and trade names are those of their respective owners.
