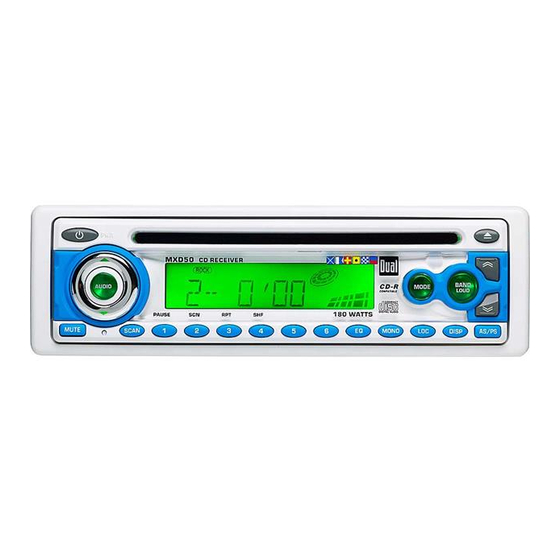

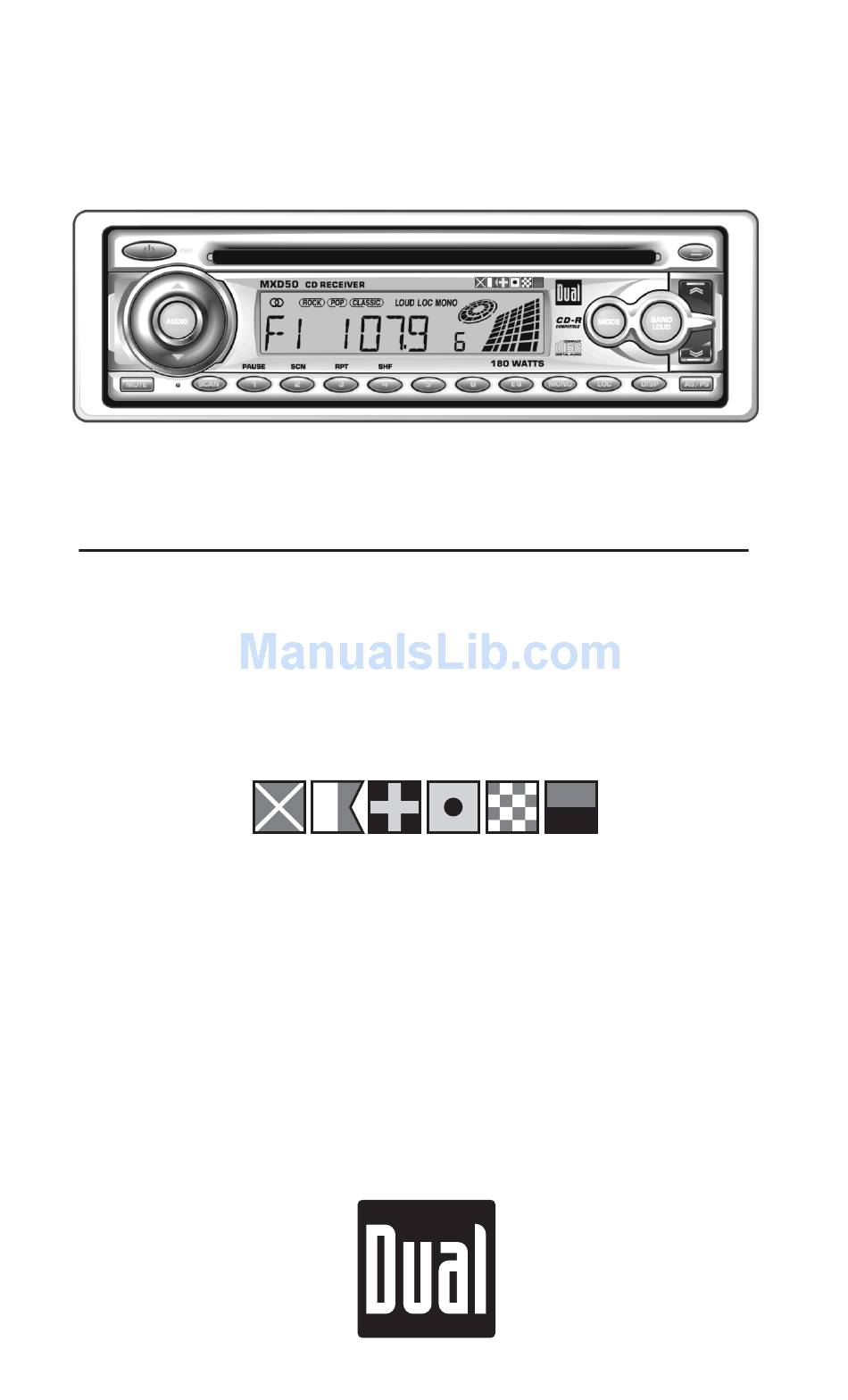

- Page 1 MXD50 INSTALLATION/OWNERS MANUAL AM/FM/CD Marine Receiver MARINE...
-
Page 2: Installation
MXD50 INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. (consult a qualified technician for instructions) • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. -
Page 3: Wiring Diagram
Connect to battery correct type and amperage. circuit or constant 12 volt source. Using an incorrect fuse could damage the radio. The MXD50 uses one 10 amp ATO fuse located Right Front Right Rear below the wiring connector. Gray/Black (-) -
Page 4: Operation
MXD50 OPERATION Control Locations Power Mono/Stereo Volume Audio Preset 6 Mode Preset 5 Band/Loud Preset 4/CD Shuffle Tune/Track Up Preset 3/CD Repeat Eject Preset 2/CD Scan Tune/Track Down Preset 1/CD Pause Auto Store/Preset Scan Tuner Scan Display Reset Local/Distance Mute... -
Page 5: General Operation
MXD50 OPERATION General Operation Power On/Off Press PWR or any other button (except eject) to turn the unit on. Inserting a CD will turn the unit on automatically. Press PWR to turn the unit off. Mode Press MODE to select between tuner, CD player and auxiliary input. - Page 6 MXD50 OPERATION General Operation Reset Press and hold for more than 2 seconds to RESET the unit upon initial installation, when selecting between US/European frequency spacing or if abnormal operation occurs. Audio Press AUDIO to select between Volume (default), Bass, Treble, Balance &...
-
Page 7: Tuner Operation
MXD50 OPERATION Tuner Operation Press TUNE Seek Tuning momentarily to seek the next strong station. Press TUNE Manual Tuning for more than 2 seconds, then release. "MANUAL" will momentarily appear in the display. Press TUNE momentarily to move radio frequency up or down one step at a time. Press and hold to advance quickly. -
Page 8: Cd Player Operation
MXD50 OPERATION CD Player Operation With the label facing up, insert a standard 5" CD into the CD Insert CD slot. The CD will automatically begin playback. Press the EJECT button to stop and eject the CD. The unit Eject CD will change to previous mode of operation (tuner or auxiliary input). -
Page 9: Limited One-Year Warranty
You may also have other rights which vary from service, you must prepay the initial shipping state to state. charges. DUAL will pay the return shipping charges if the product is returned to an address Namsung America Inc. warrants this product to within the USA. -
Page 10: Specifications
MXD50 OPERATION Specifications CD Player >86dB Signal-to-noise: 20Hz-20kHz, ±3dB Frequency response: >65dB Channel separation @ 1kHz: 1 Bit D/A converter: FM Tuner 87.5MHz-107.9MHz Tuning range: 12dBf FM mono sensitivity: 16dBf 50dB quieting sensitivity (stereo): 40dB Stereo separation @ 1kHz: 30Hz-13kHz, ±3dB... -
Page 11: Troubleshooting
MXD50 OPERATION Troubleshooting Problem Cause Action Yellow wire not connected or incorrect voltage Check connections for proper voltage Unit will not turn on Red wire not connected or incorrect voltage (11~16VDC) (no power) Black wire not connected Check connection to ground... - Page 12 Namsung America Inc. 21318 64th Ave. South Kent, WA 98032 Toll Free: 1-866-626-7863 ©2003 Namsung America, Inc. EVOK0603-V01...
