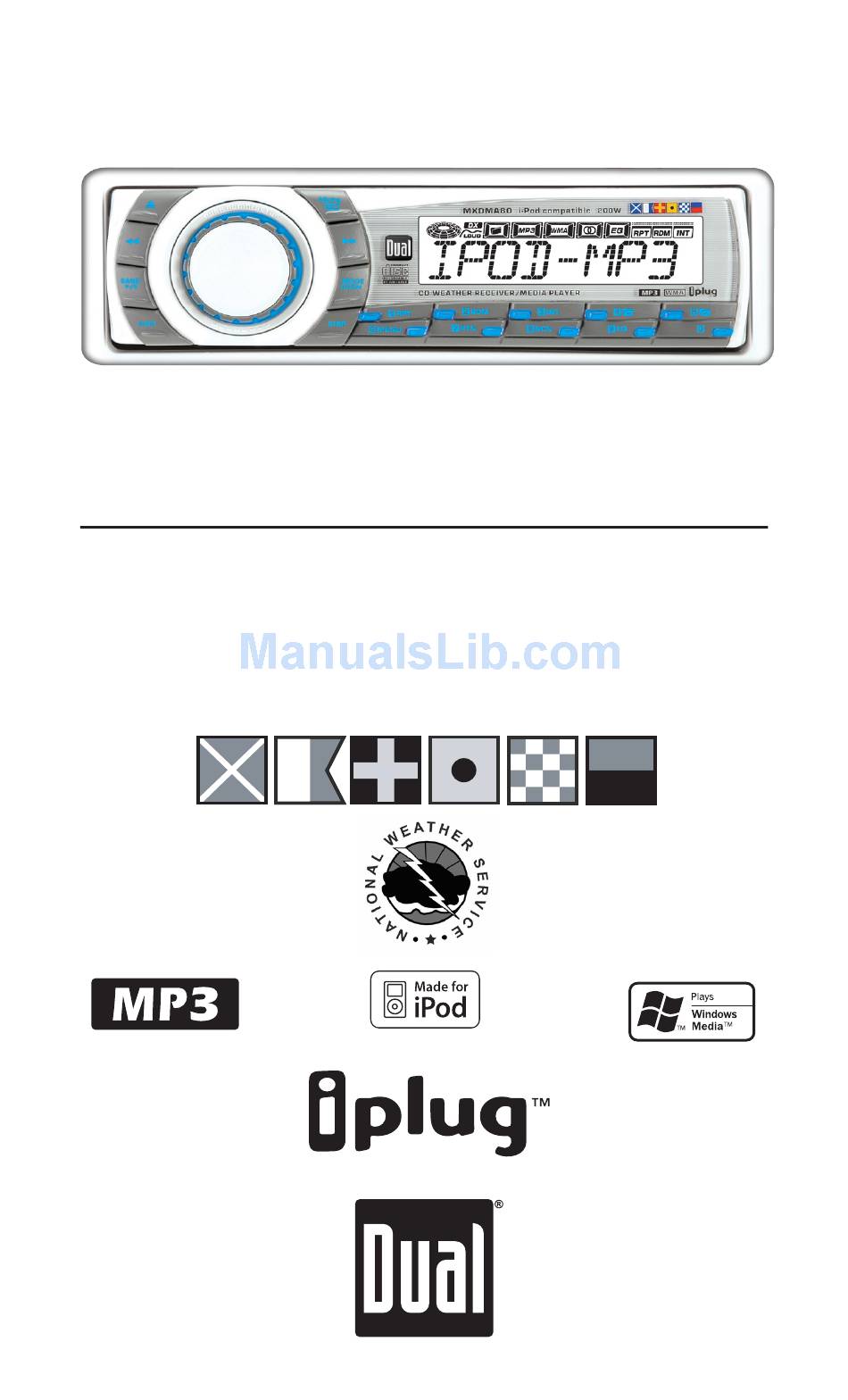

- Page 1 MXDMA80 INSTALLATION/OWNER’S MANUAL CD/MP3/iPod Ready Weather Receiver with Detach Face MARINE...
- Page 2 MXDMA80 INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
-
Page 3: Wiring Diagram
10-pin iPod Connection MWR30 FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The MXDMA80 uses one 10 amp ATM fuse located beside the wiring connector. -
Page 4: Control Locations - Receiver
MXDMA80 OPERATION Control Locations - Receiver Tune/Track Down Eject Volume/Audio/Setup AS/PS/Enter/Function Tune/Track Up LCD Display *Key #0/Preset #10 Preset #5/Folder Up Preset #9/EQ Preset #/Folder Down The XDM685 allows playback of your favorite MP3 and WMA files recorded on CD-R and CD-RW discs. Its powerful on-board DSP processor decodes the compressed audio while maintaining near-CD sound quality. - Page 5 Power On/Off Mode Volume Preset EQ Curves Display Set the Clock MXDMA80 OPERATION The front panel is semi-permanently attached during assembly. Please refer to the separate yellow instructions (before installation) to make the front panel removable. With the unit off, press EJECT to allow the front panel to slide down. Gently squeeze the release tab located on the bottom center underside and pull front panel down and away from unit to remove.
- Page 6 MXDMA80 OPERATION General Operation - Setup Menu 12/24-hour Clock Setup Menu Menu Function Loudness Curve LOUD OFF LOUD ON Tuner Frequency FREQ USA Spacing FREQ EUR Clock Display CLK OFF CLK ON Auxiliary Mode AUX ON AUX OFF Beep BEEP OFF Confirmation BEEP ON Local/Distance LOC OFF Tuning LOC ON Subwoofer SB-W ON SB-W OFF Power on ...
- Page 7 Bass Treble Balance Fader Subwoofer Source Audio Memory Reset MXDMA80 OPERATION Press rotary encoder momentarily to select between Volume (default), Bass, Treble, Balance, Fader & Subwoofer. VOLUME BASS TREBLE Press rotary encoder until BAS appears then rotate encoder left/right to adjust ( -6 minimum / +6 maximum).
-
Page 8: Tuner Operation
MXDMA80 OPERATION Tuner Operation Seek Tuning Manual Tuning Scan Tuning Band Storing and Recalling Station Presets Automatically Store Stations Preset Scan Press TUNE or TUNE next strong station. Press TUNE or TUNE then release. "MANUAL" will momentarily appear in the display. Press TUNE move radio frequency up or down one step at a time. Press and hold to advance quickly. - Page 9 Refer to the table below. Weatherband Stations - Direct Tuning Table Button Preset 1 Preset Preset 3 Preset Preset 5 Preset 6 Preset 7 MXDMA80 OPERATION or TUNE WB Frequency 16.00 MHz 16.5 MHz 16.50 MHz 16.75 MHz 16.500 MHz 16.55 MHz 16.550 MHz momentarily to seek the LCD Display...
-
Page 10: Cd Player Operation
MXDMA80 OPERATION CD Player Operation Insert CD Eject CD Track Select Fast Forward and Reverse Pause Scan Repeat Random CD-R/CD-RW Compatibility With the label facing up, insert a standard size CD into the CD slot. The CD will automatically begin playback. Press EJECT to eject the CD. The unit will change to previous mode of operation (AM, FM, WB, or auxiliary input). - Page 11 WMA Icon Folder Icon Displaying Information Character Support MXDMA80 OPERATION When an MP3/WMA encoded disc is first inserted, “READING” will appear in the display. Depending on the number of files and folders, this may take several seconds. icon will illuminate anytime a valid MP3 encoded disc is inserted and flash in MP3 search/navigate modes.
- Page 12 MXDMA80 OPERATION CD Player Operation - MP3/WMA Files Refer to the following button function table when selecting, searching or navigating MP3/WMA files and folders: MP3/WMA Button Function Table Button SRCH Preset #1 Preset # Preset #3 Preset # Preset #5 Preset #6 Key #7 Key #8 Key #9 Key #0...
- Page 13 (up one level). *Only available on MP3/WMA discs recorded with more than one folder. MXDMA80 OPERATION " will flash in the display. to initiate the selected alphanumeric search. to select the desired file or folder. If a folder is "...
- Page 14 MXDMA80 OPERATION CD Player Operation - MP3/WMA Files Navigating Note *Folder Access File Repeat File Repeat (Current Folder Only) Disc Random Folder Random Disc Intro Folder Intro After navigating by direct select, alphanumeric search or file/folder navigate modes, the track number and elapsed time will be displayed by default. Press DISP momentarily to select clock, track name, directory name, title, artist, album, year or comment.
- Page 15 • Maximum nested folder depth is 8 (including the root folder). • Valid characters for folder/file names are letters A-Z • This device can play back discs in Joliet, Romeo, and other MXDMA80 OPERATION Management). (all caps), numbers 0-9, and “_” (underscore). Some characters may not be displayed correctly, depending on the character type.
- Page 16 MXDMA80 OPERATION CD Player Operation - MP3/WMA Files Additional MP3/WMA Information Sampling Frequency Rates Transfer Bit rates MP3 Tag Display Recommended Settings An internal buffer provides ESP (Electronic Skip Protection) to virtually eliminate skipping. When playing a disc recorded with regular audio files (CD-DA or .WAV) and MP3/WMA files, the unit will play the MP3/WMA files only.
- Page 17 Artist Name Search Album Name Search Song Name Search Song Select MXDMA80 OPERATION Connect iPod using the supplied cable. Press MODE until "IPOD" appears in the display. The iPod will automatically begin playback. If a song is playing on the iPod before it is connected, it will continue to play.
- Page 18 MXDMA80 OPERATION iPod™ Operation (Optional) Fast Forward and Reverse Pause Intro Repeat Random Character Support iPod Compatibility Press and hold song. / II to temporarily stop playback. Press / II again to resume playback. Press Press INT to play the first 10 seconds of each song. Press INT again to cancel.
-
Page 19: Limited One Year Warranty
This warranty gives you specific legal rights. You may also have other rights which vary from state to state. Dual Electronics Corp. warrants this product to the original purchaser to be free from defects in material and workmanship for a period of one year from the date of the original purchase. -
Page 20: Specifications
MXDMA80 OPERATION Specifications CD Player FM Tuner AM Tuner General Power Output: 17 Watts RMS x channels at ohms and < 1% THD+N Signal to Noise Ratio: 80dBA (reference: 1 watt into ohms) Frequency response: 10Hz-20kHz Channel separation @ 1kHz: D/A converter: 1 Bit... -
Page 21: Troubleshooting - General
INVALID appears The file format is incompatible on display Unit will not accept CD mechanism position out of alignment a disc CD transit screws still in place MXDMA80 OPERATION Troubleshooting - General Cause Check connections for proper voltage (11~16VDC) Check connection to ground Replace fuse Check connections at speakers... - Page 22 MXDMA80 OPERATION Notes...
- Page 23 MXDMA80 OPERATION Notes...
- Page 24 Dual Electronics Corp. Toll Free: 1-866-38-576 www.dualav.com ©007 Dual Electronics Corp. All rights reserved. Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and or other countries. NSA0107-V01.1...
