Choose a Good Setup Location and Connect the Cables
Save the shipping box and packing materials to protect the NAS during moves or shipments.
For service and maintenance purposes, place the NAS in an accessible location. If you use a
desktop, be sure it can support at least 150 pounds. Do not place the NAS in direct sunlight, near
a heater, or where it is exposed to excessive moisture, dirt, or dust. The ideal environment is an
air-conditioned room where temperatures remain at or below 76 F. Maintain at least two inches
(5 cm) of clearance around the intake and exhaust vents, and ensure that the front of the chassis
has access to clean, cool air.
Letter/Name
A Mouse connector
B Keyboard connector
C USB/printer connectors
D Serial port connector
E VGA connector for monitor
F Network connector
For single Ethernet connections, plug your Ethernet cable into the left socket Port 0 (noted as F).
If you have a second Ethernet connection, plug that cable into Port 1 (noted as G), which you
must configure using the IP Address Configuration dialog, which is accessed via Network >
Interfaces. Both ports can handle Gigabit Ethernet.
Make electrical interface connections with the power off.
Quick Install Guide for StorageCab4000 with Windows Storage Server 2003
Function Letter/Name
not used
G Network connector
setup option
H
Parallel connector
not used
I SCSI connector
not used J Power plugs
K Card slot
setup option
L Power alarm shut off
See below

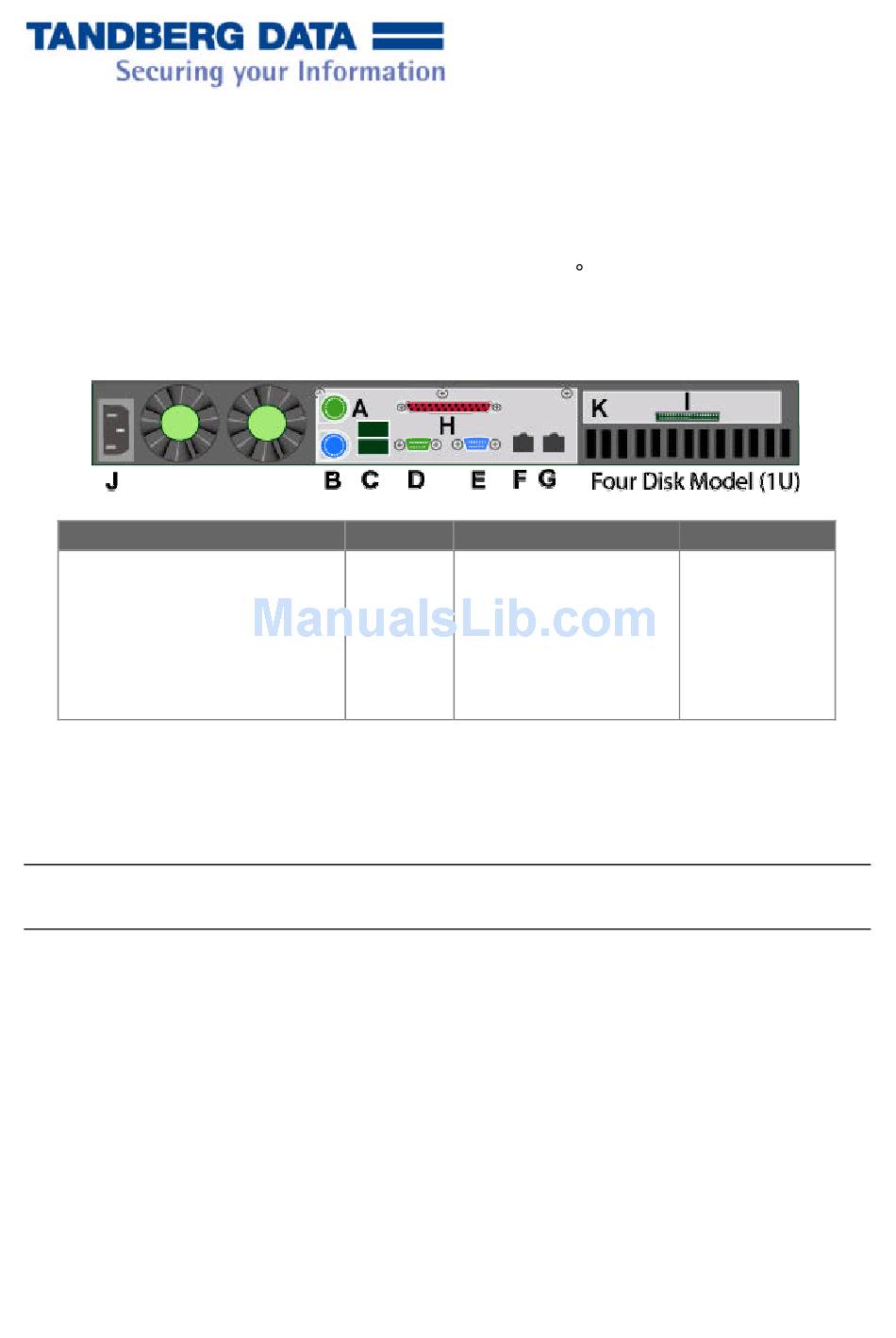

Rear View of the NAS
Caution !
Function
See below
not used
optional
power in
not used
when needed
