3.

DISASSEMBLY PROCEDURE

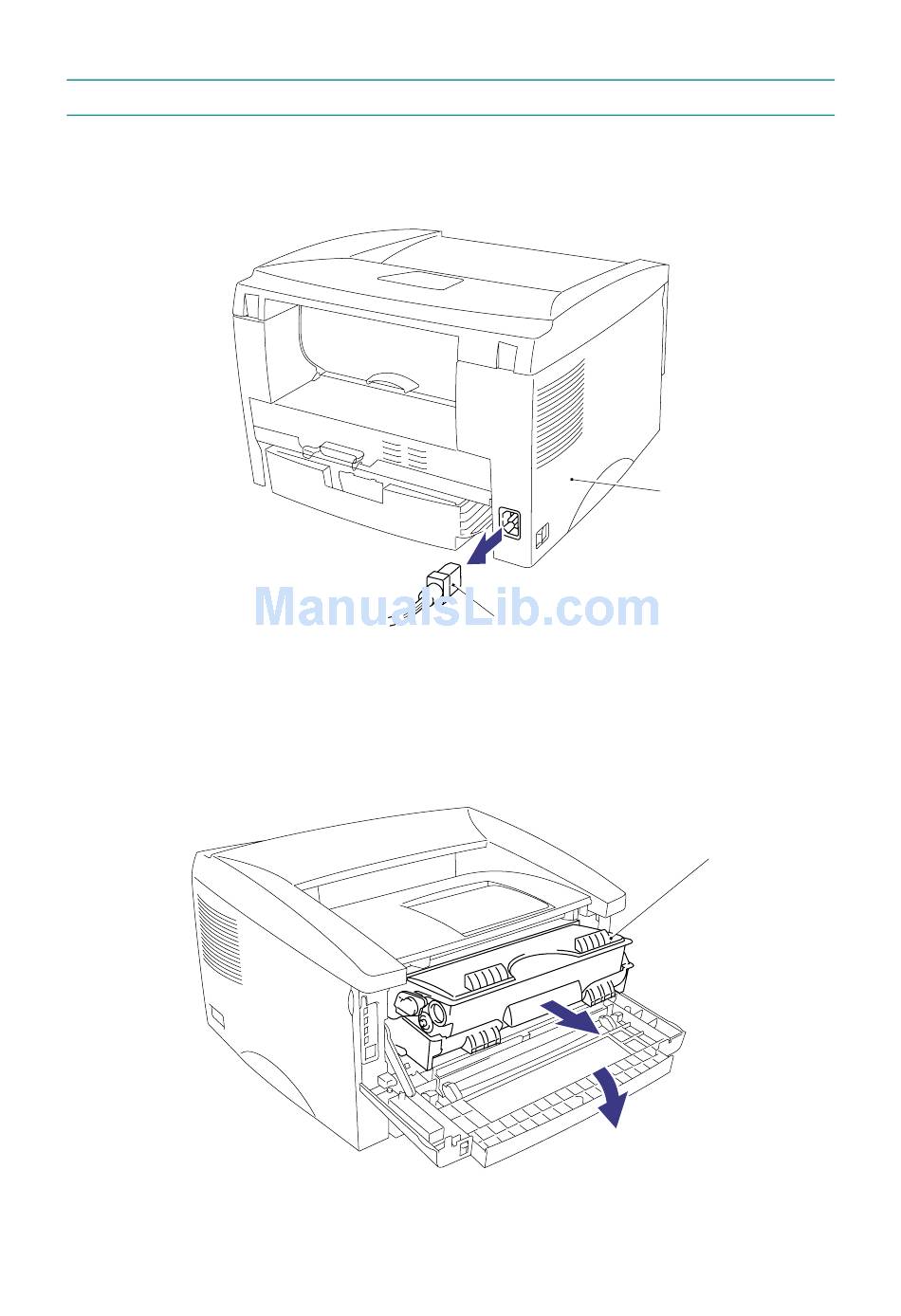

3.1 AC Cord
(1) Disconnect the AC cord from the printer AC inlet.
3.2 Drum Unit
(1) Open the front cover and remove the drum unit from the printer.

CHAPTER 4 DISASSEMBLY AND RE-ASSEMBLY

AC cord
Fig. 4-1
Fig. 4-2
4-3
Printer
Drum unit
