Powering on the reader requires 12V and 0V
to be Connected.
Data read from a card is presented on the
Data/Clock pins. If configured for wiegand
output the D0 signal is available on Data and D1
is available on Clock.
The Sense signal is driven low when the
reader outputs Clock and Data information, this
can be used to distinguish between Entry and
Exit (see below)
The Internal buzzer is activated by applying
0V to the Buzz. The buzzer activates 4 seconds
after the 0V is applied and sounds continuously
till the 0V is removed.
The Red/Green led is activated by applying
0V to the respective Red/Grn input.
Wiring for Entry/Exit Readers
ACT
mifare
ACTpro mifare 1040 Proximity Reader (Exit)
To make a reader an exit reader leave the Sense line unconnected.
To make a reader an entry reader ensure the Sense line is connected.
PAGE 1
U nit C1, S outh City B usiness Center, Tallaght, Dublin 24, Ireland.
Telephone: +353 1 466 2570. Telefax: 353 1 452 0427. E-mail: sales@ accesscontrol.ie W eb: www.accesscontrol.ie
1040/1050
General Wiring information
Connection block view of ACTpro mifare 1040/1050.
ACTpro mifare
1040
Sector
No: 00005
+12V
C lock
B uzz
READER MUST BE POWERED FROM 12vDC
1 2 3
4 5 6
7 8 9
0
ACT
mifare
Test
0V
R ed
G rn
A
B
ACTpro mifare 1050 Pin and Proximity Reader (Entry)
READER MUST BE POWERED FROM 12vDC

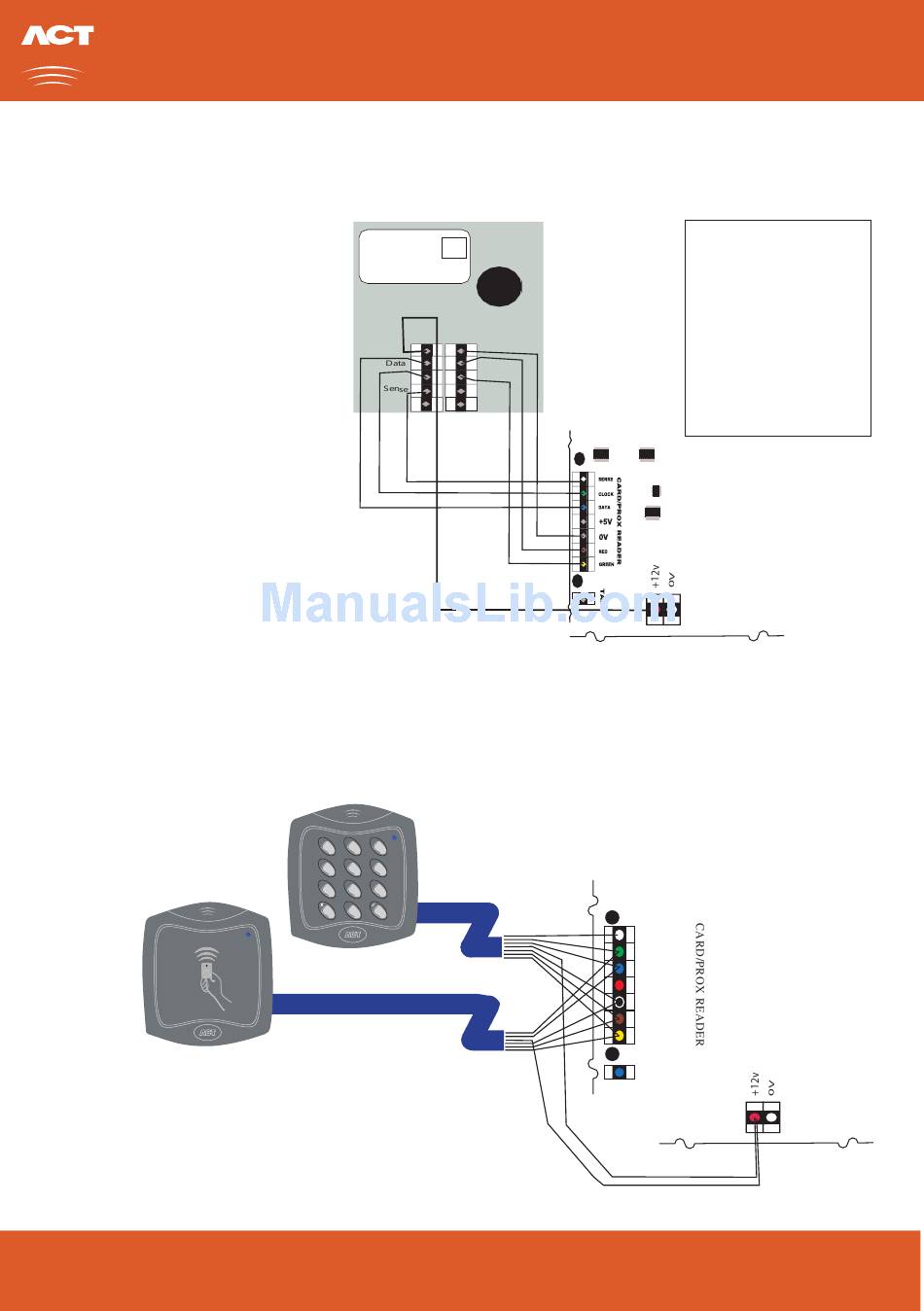

Wiring for Reader
White SENSE
Green CLOCK / D1
Blue DATA / D0
Red 12V
Black 0V
Brown RED
Yellow GREEN
Orange BUZZER
No Connect
No Connect
The standard wiring colours for
ACTpro proximity and pin readers
is shown above.
Controller
SENSE
CLOCK
DATA
+5V
0V
RED
GREEN
A
B
