ACT ACT1020 - WIRING FOR ENTRYEXIT Manual

ACT1020
Reader (Entry)
ACT1020
Reader (Exit)

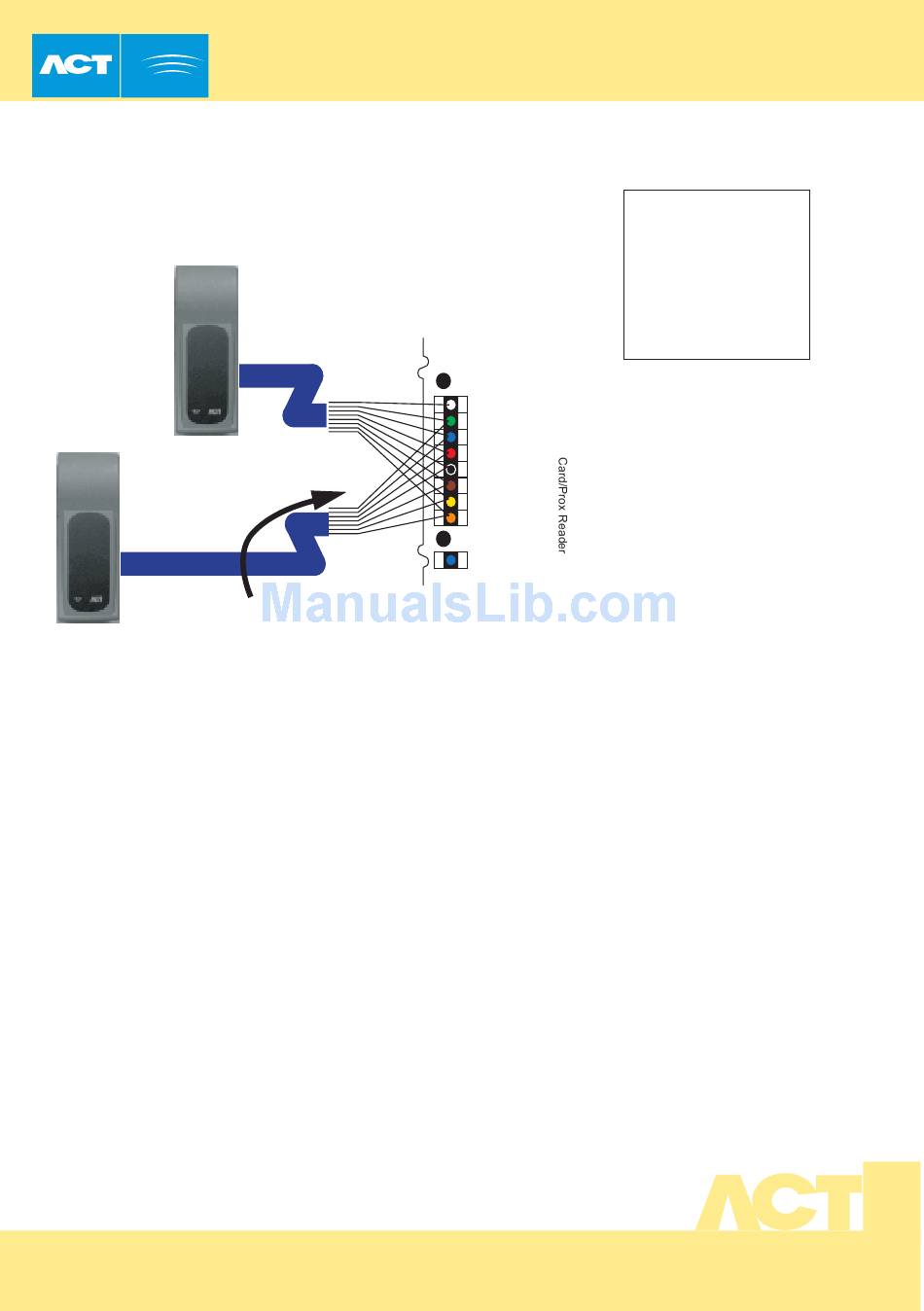

Wire both readers in parallel but leave
the SENSE line on the Exit reader unconnected.
For Wiegand readers .
Wire both readers in parallel but connect D0
line of the exit reader into the SENSE line on
the controller,leave the SENSE line on the
Exit reader unconnected.
Voltage:
Current:
Operating Temperature:
Media:
Read Range:
U nit 8 Tallaght B usiness Centre, W hitestown, Tallaght, Dublin 24, Ireland.
Telephone: 353 1 462 2585. Telefax: 353 1 462 2587. E-mail: sales@ accesscontrol.ie W eb: www.accesscontrol.ie
ACT1020

Reader Specification

5-12V DC
15 mA standby, 25 mA maximum
-10 degres C to +55 degrees C
HID Proximity cards and key fobs
10 cm with prox card 11
Wiring for Entry/Exit

Wiring for Clock and Data / Wiegand Reader

Controller
The standard wiring colours for
SENSE
ACT1020 reader is shown above.
CLOCK
Readers should be a maximum of 30m
DATA
from the controller when powered
+5V
from +5V and a maximum of 100m
0V
when powered from +12V.
RED
GREEN
The +5V reader supply on ACT controllers is normally rated
at 100mA. Typically this is sufficient to power 2 ACT readers.
Note however that readers from other manufacturers may need
to be powered separately if their current requirements exceed
this or if they require 12V.
White SENSE
Green CLOCK/ Data1
Blue DATA / Data 0
Red +5V
Black 0V
Brown RED
Yellow GREEN
Orange (Buzzer Ctrl)
