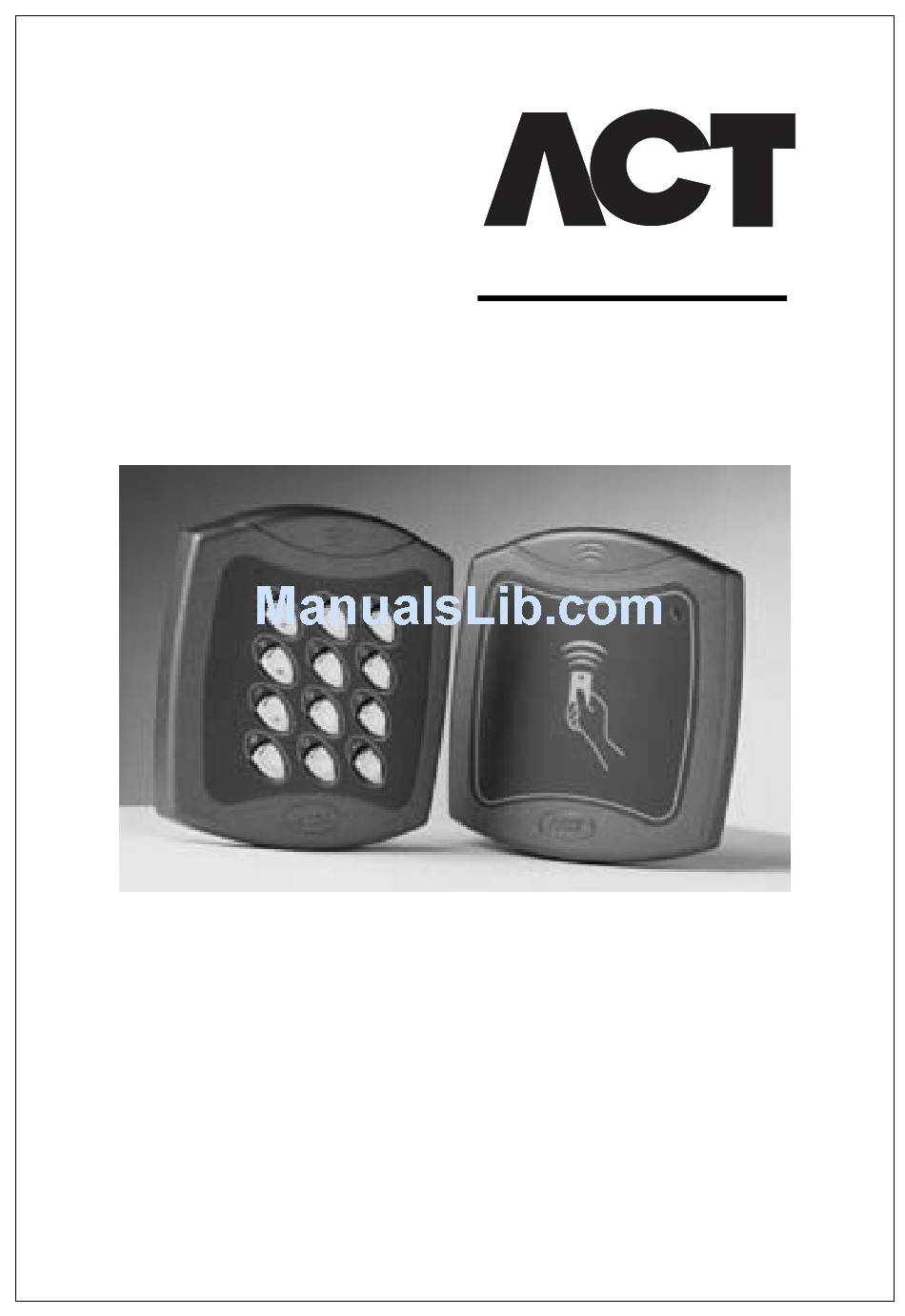

- Page 1 access control TECHNOLOGY Operating & Installation Instructions for ACTSmart Product Range...
-
Page 3: Table Of Contents
ACTSmart2 Operating and Installation Manual Rev. 1.1 Contents Installation Notes...........................4 Product Specification ..........................4 30 Second Programming Guide (1080) ....................5 30 Second Programming Guide (1090) ....................6 Programming Summary.........................7 ACTSmart Operation ..........................8 ACTSmart Programming........................8 Adding a Card Batch......................9 Deleting a Card Batch.......... -
Page 4: Installation Notes
Controller Weight 200 grams Water Resistance High IP67 Construction Rugged Polycarbonate housing with stainless steel keys and potted electronics. Ordering Information Model Part Number ACTSmart Proximity Only ACT 1070 ACTSmart PIN and Proximity ACT 1080 ACTSmart PIN Only ACT 1090... -
Page 5: Second Programming Guide (1080)
ACTSmart2 Operating and Installation Manual Rev. 1.1 30 Second Programming Guide ACTSmart2 Pin & Prox (1080) (For typical Standalone System) 1. Enter Programming Mode. ✘ Press button followed by the programming code (default is 9999) The LED will flash amber. 2. -
Page 6: Second Programming Guide (1090)
ACTSmart2 Operating and Installation Manual Rev. 1.1 30 Second Programming Guide ACTSmart2 PIN Only (1090) 1. Enter Programming Mode. ✘ Press button followed by the programming code (default is 9999) The LED will flash amber. 2. Add a PIN Code Press 12, and then enter a 4-digit PIN code. -
Page 7: Programming Summary
ACTSmart2 Operating and Installation Manual Rev. 1.1 Programming Summary Code Function Default Add Card Batch Delete Card Batch Add PIN Code Delete PIN Add Card and PIN Delete Card and PIN Add Card Batch using keypad Delete Card Batch using keypad Add Random Card Set Door Relay Time 5 seconds... -
Page 8: Actsmart Operation
Cards and PIN codes can be programmed into the ACTSmart very quickly. ACT recommends that the user keep track of the Cardholders and PIN users on the system by using the User List at the end of the manual. Make copies of this sheet and enter each Users details on it. -
Page 9: Adding A Card Batch
ACTSmart2 Operating and Installation Manual Rev. 1.1 Adding a Card Batch: Step Keypad Entry Operation Add Card Batch Present Card First card in Batch (lowest number card) Present Card Last Card in Batch (highest number card) Enter 1-8, (optional)* Select each door this batch enabled for Press ✔... -
Page 10: Adding A Card Batch Using The Keypad
ACTSmart2 Operating and Installation Manual Rev. 1.1 Adding a Card Batch using the keypad: Step Keypad Entry Operation Add Card Batch Enter 10-digit card number 10-digit First Card number with leading zeros. Eg. Card 54321 enter 0000054321. Enter 10-digit card number Second Card number 1-8, (optional)* Select each door to which these cards are enabled... -
Page 11: Change Programming Code
ACTSmart2 Operating and Installation Manual Rev. 1.1 Change Programming Code: Step Keypad Entry Operation Change Programming code 0001-9999 New 4 - 6 digit programming code Change Number of PIN Digits: Step Keypad Entry Operation Change Number of PIN digits Select number of PIN digits in range 4 to 6. When set, the codes require leading zeros Eg. -
Page 12: User Arm
ACTSmart2 Operating and Installation Manual Rev. 1.1 User Arm Function: Users with this function may arm or disarm the door after a vaild card or PIN is presented. Remember the Arming Door option must be set on the Smart2 (Option 42). While the door is armed, the door is locked and access is denied to other users until the door is disarmed. -
Page 13: Programming Actsmart Options
ACTSmart2 Operating and Installation Manual Rev. 1.1 Programming ACTSmart Options: Step Keypad Entry Operation 30-43 Select Option Number 0 or 1 0 = Off, 1 = On 1-8, (optional)* Select each door this option is set for Press ✔ End setting options Option Function Default... -
Page 14: Setting Programmable Input Function
ACTSmart2 Operating and Installation Manual Rev. 1.1 Setting Programmable Input Function: Step Keypad Entry Operation Set Input Function (Door Release button is default) Select I/O Function Code (see below for explanation of codes) 1-8 (optional)* Select each door this function is valid for Press ✔... -
Page 15: Quick Io Setup
ACTSmart2 Operating and Installation Manual Rev. 1.1 I/O Function Codes (continued) Code Function Operation Door Armed This output toggles when a user with the armed function presents a valid card or PIN. This can be used to arm or disarm an alarm panel. The output may be set to pulse for 2 seconds instead of toggle. -
Page 16: Adding A Pin For Second Door
ACTSmart2 Operating and Installation Manual Rev. 1.1 Adding a PIN for Second Door: Step Keypad Entry Operation Add PINs (Make sure Option 40 is set on PIN and Prox units.) (I/O function code 12 must be set for the Aux O/P) 0001-9999 4 - 6 digit PIN code 1-8, (optional)*... -
Page 17: Programming A Network System
ACTSmart2 Operating and Installation Manual Rev. 1.1 Programming a Network System Up to 8 ACTSmart devices can be connected on the network. See the ACTSmart Network Installation diagram to complete the necessary connections. Programming Door Numbers To allow some users through a door and prevent access to other users, each ACTSmart on the network must be given a door number (1-8). -
Page 18: Find Door Number
ACTSmart2 Operating and Installation Manual Rev. 1.1 Find Door Number: Step Keypad Entry Operation Find Door Numbers Enter the door number to be found. The ACTSmart assigned the door number starts to beep. Press a key or present To stop the ACTSmart beeping. a card Find All Door Numbers: Step Keypad Entry... -
Page 19: Programming Actsmart Prox Only
5. The card is now set as the Programming card. (Note: ACT recommends using an ACTSmart PIN and Prox device if a network is required). In the steps below, after a card is presented to the reader it must be taken away from the reader (more than 20cm) for 1 second before presenting the card again. - Page 20 ACTSmart2 Operating and Installation Manual Rev. 1.1 Programming for SmartLock: Step Present Operation Programming Card Programming Card Programming Card Programming Card Programming Card Buzzer sounds intermittently and the LED flashes Programming Card Input 1 = Door Contact, AUX I/O 1 = Door Alarm, AUX I/O 2 = SmartLock.
-
Page 21: Actsmart Standalone Wiring Diagram
ACTSmart2 Operating and Installation Manual Rev. 1.1... -
Page 22: Actsmart Interlock And Fire Override Wiring Diagram
ACTSmart2 Operating and Installation Manual Rev. 1.1... -
Page 23: Actsmart Network Wiring Diagram
ACTSmart2 Operating and Installation Manual Rev. 1.1... -
Page 24: Smartlock Connection Diagram
ACTSmart2 Operating and Installation Manual Rev. 1.1 SmartLock Connection Diagram Access Control Technology, Unit 8, Tallaght Business Park, Whitestown, Dublin 24, Ireland. Tel: 353-1-4622585 Fax: 353-1-4622587 Web: http://www.accesscontrol.ie E-mail: sales@accesscontrol.ie... -
Page 25: Alarm Wiring Diagram
ACTSmart2 Operating and Installation Manual Rev. 1.1... -
Page 26: Actpro Reader Wiring Diagram
ACTSmart2 Operating and Installation Manual Rev. 1.1... -
Page 27: Door Wiring Diagram
ACTSmart2 Operating and Installation Manual Rev. 1.1... -
Page 28: Actsmart System Diagram
ACTSmart2 Operating and Installation Manual Rev. 1.1... -
Page 29: Actsmart Flush Mounting Diagram
ACTSmart2 Operating and Installation Manual Rev. 1.1... -
Page 30: Actsmart Surface Mount Diagram
ACTSmart2 Operating and Installation Manual Rev. 1.1... -
Page 32: User List
access control TECHNOLOGY Smart User List Doors User Name Card Number Access Control Technology, Unit 8, IDA Business Park, Whitestown, Dublin 24, Ireland. TEL:353-1-4622585 FAX: 353-1-4622587 WEB: http://www.accesscontrol.ie E-MAIL: sales@ accesscontrol.ie...
