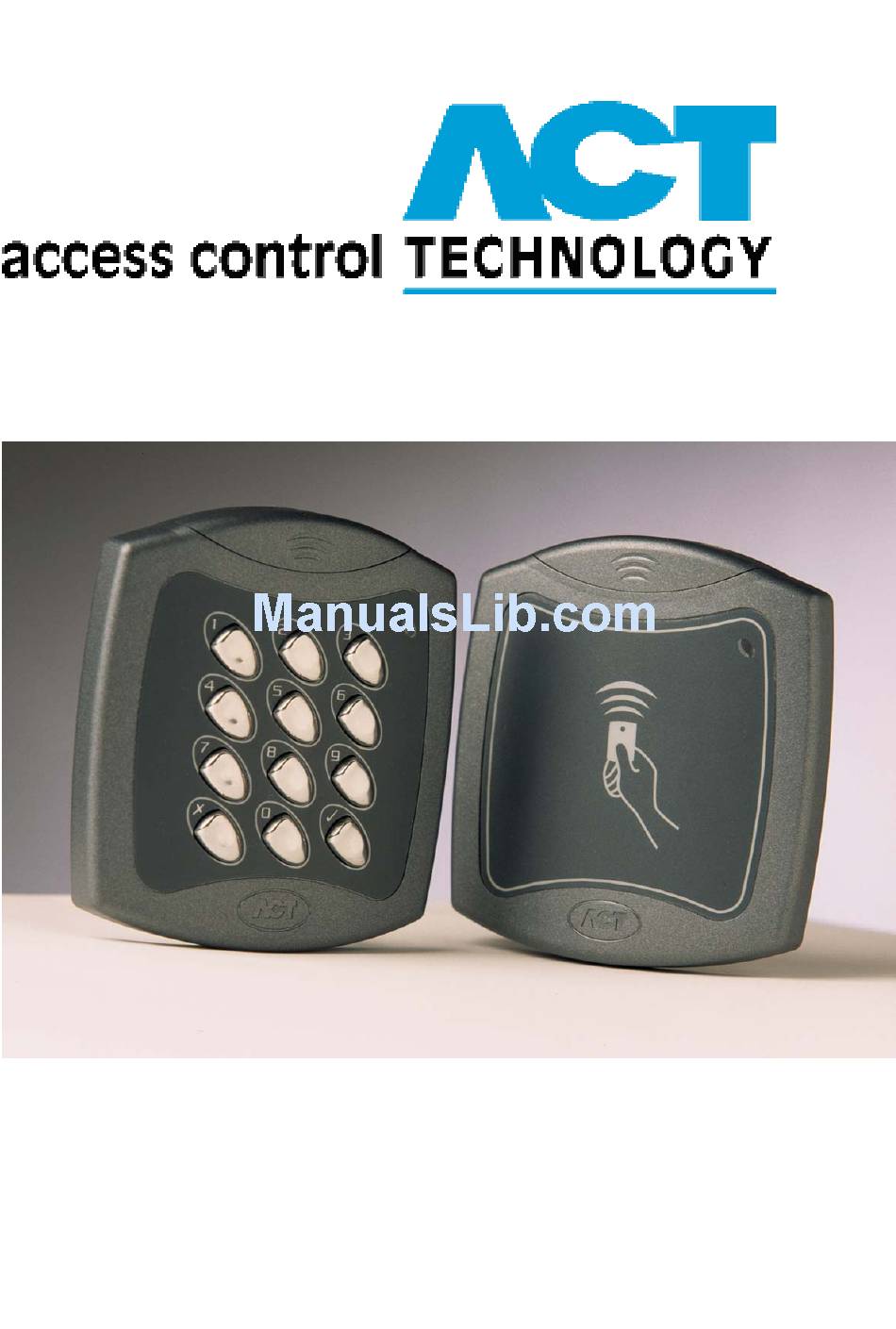

- Page 1 Operating & Installation Instructions for Operating & Installation Instructions for Operating & Installation Instructions for Operating & Installation Instructions for ACTSmart Product Range ACTSmart Product Range ACTSmart Product Range ACTSmart Product Range...
-
Page 2: Table Of Contents
ACTSmart Operating and Installation Manual Rev 1.1 Contents Contents Contents Contents Installation Notes…...………………………………………………. Product Specification ………………………………………………. 30 Second Programming Guide …………………………………….. Programming Summary…………………………………………….. ACTSmart Operation…...…………………………………………... ACTSmart Programming………………………………...…………. Adding a Card Batch……………………… … ……………… Deleting a Card Batch………………………………………… 7 Adding a Pin…………………………………………………... 7 Deleting a Pin……………………………………………….. -
Page 3: Installation Notes

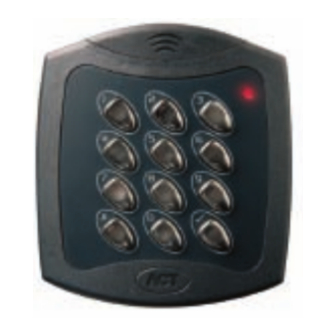

Rugged Polycarbonate housing with stainless steel keys and potted electronics. Ordering Information Ordering Information Ordering Information Ordering Information Model Part Number ACTSmart Proximity Only ACT 1070 ACTSmart PIN and Proximity ACT 1080 ACTSmart PIN Only ACT 1090 - 3 -... -
Page 4: 30 Second Programming Guide
ACTSmart Operating and Installation Manual Rev 1.1 30 Second Programming Guide 30 Second Programming Guide 30 Second Programming Guide 30 Second Programming Guide (For typical Standalone System) 1. Enter Programming Mode. Press ✘ button followed by the programming code (default is 9999) The LED will flash amber. -
Page 5: Programming Summary
ACTSmart Operating and Installation Manual Rev 1.1 Programming Summary Programming Summary Programming Summary Programming Summary Code Function Default Add Card Batch Delete Card Batch Add PIN Delete PIN Add Card and PIN Delete Card and PIN Add Card Batch using keypad Delete Card and PIN using keypad Set Door Relay Time 5 seconds... -
Page 6: Actsmart Operation
Using the Card Batch method, cards can be programmed into the ACTSmart very quickly. ACT recommends that the user keep track of the Cardholders and PIN users on the system by using the User List at the end of the manual. Make copies of this sheet and enter each Users details on it. -
Page 7: Adding A Card Batch
ACTSmart Operating and Installation Manual Rev 1.1 Adding a Card Batch: Step Keypad Entry Operation Add Card Batch Present Card First card in Batch (lowest number card) Present Card Last Card in Batch (highest number card) Enter 1-8, (optional)* Select each door this batch enabled for Press ✔... -
Page 8: Deleting A Card And Pin Using The Keypad
ACTSmart Operating and Installation Manual Rev 1.1 Adding a Card Batch using the keypad: Step Keypad Entry Operation Add Card Batch Enter 10-digit card number 10-digit First Card number with leading zeros. Eg. Card 54321 enter 0000054321. Enter 10-digit card number Second Card number 1-8, (optional)* Select each door this Card is deleted from... -
Page 9: Programming Actsmart Options
ACTSmart Operating and Installation Manual Rev 1.1 Programming ACTSmart Options: Step Keypad Entry Operation 30-41 Select Option Number 0 or 1 0=Off, 1= On 1-8, (optional)* Select each door this option is set for Press ✔ End setting options Option Function Default Operation Door Chime... -
Page 10: Setting Programmable Input Function
ACTSmart Operating and Installation Manual Rev 1.1 Setting Programmable Input Function: Step Keypad Entry Operation Set Input Function (5 – Door Release button is default) Select I/O Function Code (see below for explanation of codes) 1-8 (optional)* Select each door this function is valid for Press ✔... -
Page 11: Quick Io Setup
ACTSmart Operating and Installation Manual Rev 1.1 Quick IO Setup: Step Keypad Entry Operation Set Input Output Functions (0 – is default) Select a code Prog Input AUX IO 1 AUX IO 2 Door Release Button Door Contact Door Alarm Door Release Button Door Contact Buzzer... -
Page 12: Programming A Network System
ACTSmart Operating and Installation Manual Rev 1.1 Programming a Network System Programming a Network System Programming a Network System Programming a Network System Up to 8 ACTSmart devices can be connected on the network. See the ACTSmart Network Installation diagram to complete the necessary connections. Programming Door Numbers To allow some users through a door and prevent access to other users, each ACTSmart on the network must be given a door number (1-8). -
Page 13: Find Door Number
ACTSmart Operating and Installation Manual Rev 1.1 Find Door Number: Step Keypad Entry Operation Find Door Numbers Enter the door number to be found. The ACTSmart assigned the door number starts to beep. Press a key or present a To stop the ACTSmart beeping card Find All Door Numbers: Step... -
Page 14: Programming Actsmart Prox Only
ACTSmart Prox, power up the device with the tamper open (by removing the main unit from the mounting plate or the surface mount collar), and immediately present a card twice. (Note: ACT recommends using an ACTSmart PIN and Prox device if a network is required). -
Page 15: Actsmart Standalone Wiring Diagram
ACTSmart Standalone Installation Diagram Default configuration for 01XX- BATCH: AUX I/O 2 is Door Alarm. PRODUCT ACTSmart REV1.3 00XXX SERIAL NUMBER Sounder 0 1 2 3 4 5 6 7 8 9 The ACTSmart may be powered from 12 or 24V AC or DC for The Aux I/O Output is an open Standalone operation. -
Page 16: Actsmart Interlock And Fire Override Wiring Diagram
ACTSmart Fire Alarm Override Connections Fire Alarm Panel Common the 0V line of each ACTSmart to avoid System Ok Ground Loop issues. Note: B A T C H: 01X X -1 B A T C H: 01X X -1 0V line of ACTSmart P R ODUC T : AC T S mart R E V 1.3 P R ODUC T :... -
Page 17: Actsmart Network Wiring Diagram
ACTSmart Network Installation Diagram Note: When networking the ACTSmart units, common the 0V of each ACTSmart to avoid ground loop issues. Continue daisy-chain to Network cable is single shielded twisted pair, Belden 9501 or similar. remaining ACTSmart units on the network (maximum 8). SHIE L D SHIE L D SHIE L DS... -
Page 18: Actsmart Flush Mounting Diagram
ACTSmart Mounting Instructions for Flush-Mount Unit Spacers break away from main component when Standard pattress required by installer box. for use. View showing spacers stacking View showing mounting plate before spacers are broken Note: Determine the distance between the pattress box and the mounting plate, using the spacers which are labeled 1mm to 4mm. -
Page 19: Actsmart Surface Mount Diagram
ACTSmart Mounting Instructions for Surface Mount Unit Magnet in surface mount collar, which keeps tamper switch closed inside ACTSmart. Security screw supplied with the unit. The surface mount collar is mounted on the wall using the fixing kit supplied in the box. Place the cap onto the unit and push firmly into place. -
Page 20: User List
User List User List User List User List User Name Card Number Doors Access Control Technology, Unit 8, IDA Business Park, Whitestown, Dublin 24, Ireland. TEL:353-1-4622585 FAX: 353-1-4622587 WEB: http://www.accesscontrol.ie E-MAIL: sales@ accesscontrol.ie...
