ACT ACTPRO 1030 PANEL MOUNT READER Installation

1
2
4
3
5 6
ACTPro 1030
Panel Mount
reader.
M3 washers
and nuts
Rear view of ACTPro 1030 Panel Mount Reader
connected to the ACT2000/1000/DS100
B A T C H:
P R ODUC T : AC T P M R E V 1.1
S E R IA L NUMB E R :
0 1 2 3 4 5 6 7 8 9
A 5
A 5
N O R M O
5-12V dc
Data / D0
C lock / D1
Sense
The above diagram is valid only
for clock-and-data type readers.
U nit 8 Tallaght B usiness Centre, W hitestown, Tallaght, Dublin 24, Ireland.
Telephone: 353 1 462 2585. Telefax: 353 1 462 2587. E-mail: sales@ accesscontrol.ie W eb: www.accesscontrol.ie
Installation diagram for ACTPro
Audio entry panel
VR Screen printed perspects

LED Control

The standby LED on the front of the reader
03X X -10
can be configured using the link wire.
00X X X X
When the link wire is connected between
LED and OFF the red LED on the front of
the reader will remain off while in standby
and will turn green on access granted.
When the link wire is connected between
LED and ON the red LED on the front of
0V
the reader will remain on while in standby
R ed L E D
and will turn green on access granted.
G rn L E D
B uzz C trl
Internal buzzer is
activated by applying
0V to Buzz Ctrl
1030 Panel Mount Reader

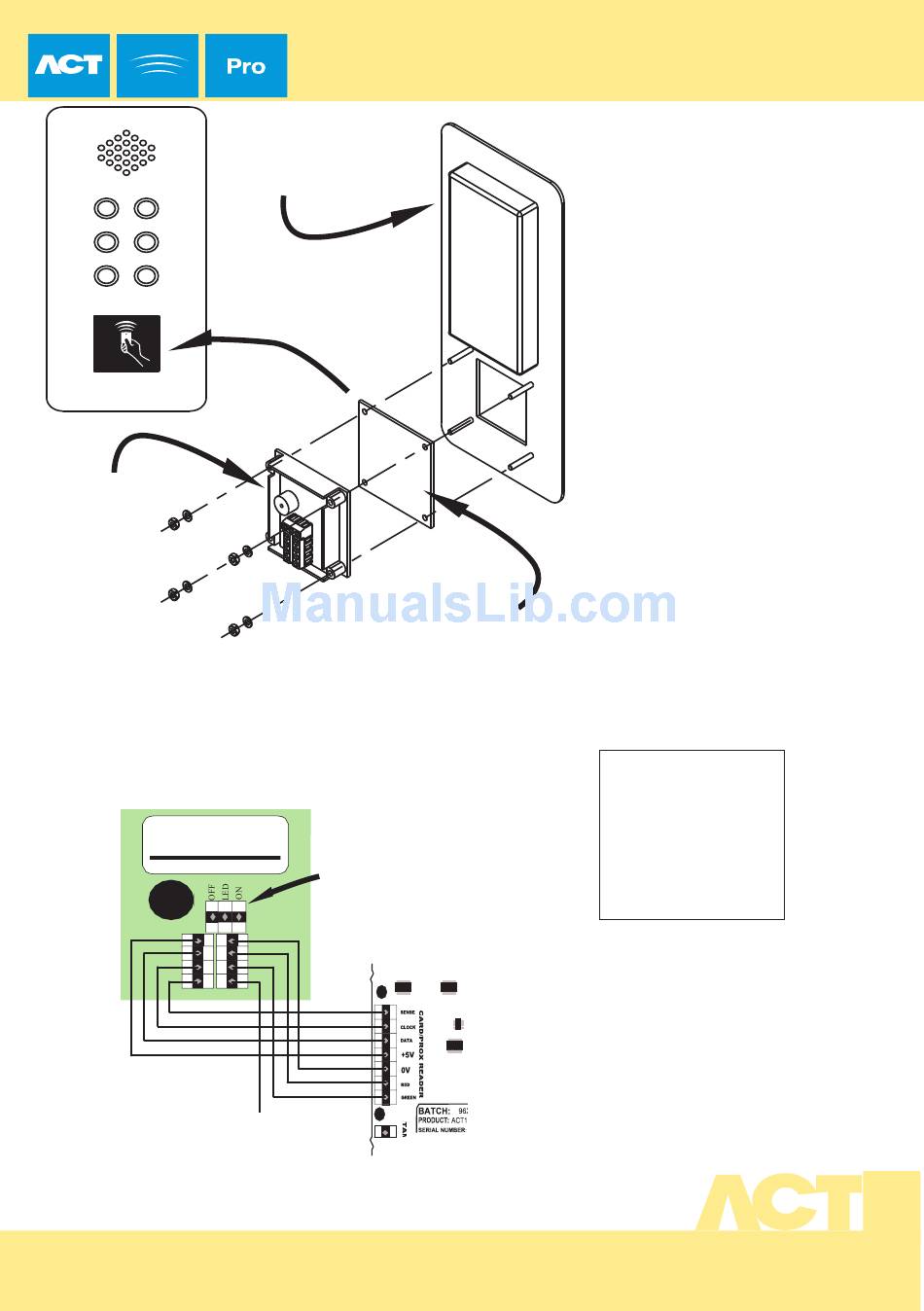

Mounting Instructions

1. Place the vr screen printed
perspex over the 4 studs
on the back of the audio
entry panel.
2. Place the ACTPro 1030
Panel Mount reader over
the 4 studs.
3. Use the 4 M3 washers and
nuts supplied with the
product to secure the
reader to the audio entry
panel.
4. Use the wiring diagram
below to connect the reader
to the controller.
5. When wiring is complete
place the front cover back
onto the audio entry panel.
6. Apply power to the
controller and test the
reader with a card or fob.

Wiring for Clock and Data / Wiegand Reader

The standard wiring colours for
ACTPro 1030 Panel Mount Proximity
reader is shown above. Readers should
be a maximum of 30m from the
controller when powered from +5V
and a maximum of 100m when
powered from +12V.
The +5V reader supply on ACT controllers is normally rated
at 100mA. Typically this is sufficient to power 2 ACT readers.
Note however that readers from other manufacturers may need
to be powered separately if their current requirements exceed
this or if they require 12V.
White Sense
Green Clock / Data1
Blue Data / Data 0
Red +5v
Black 0v
Brown Red Led
Yellow Grn Led
Orange (Buzzer Ctrl)
