ACT ACTPROX PRODUCT RANGE Manual

ProX
ACTproX1040/1050 Pin and Proximity
Reader (Entry)
1 2 3
4 5 6
7 8 9
0
ACTproX1030 Proximity
Reader (Exit)
Internal buzzer is
activated by applying
0V to Buzz Ctrl (Orange Wire)
The ACTProX Range of Readers can read HID
Clock & Data format, HID 26-Bit Wiegand format
and the ACTSmart2 format.
Wire both readers in parallel but connect D0
line of the exit reader into the SENSE line on
the controller,leave the SENSE line on the
Exit reader unconnected.
Rear view of ACTProX 1040/1050/1060
connected to the ACT3000/2000/1000/DS100
BATCH:
PRODUCT : ACTPro2 REV1.3
SERIAL NUMBER
0 1 2 3 4 5 6 7 8 9
C D V 0 3 A 5
C A V 0 5 2 A 5
N O R M O
5-12Vdc
Data / D0
Clock / D1
Sense
Internal buzzer is
activated by applying
0V to Buzz Ctrl
Unit C1, South City Business Centre, Tallaght, Dublin 24, Ireland.
Telephone: +353 1 466 2570. Telefax: +353 1 452 0427. E-mail: sales@accesscontrol.ie Web: www.accesscontrol.ie

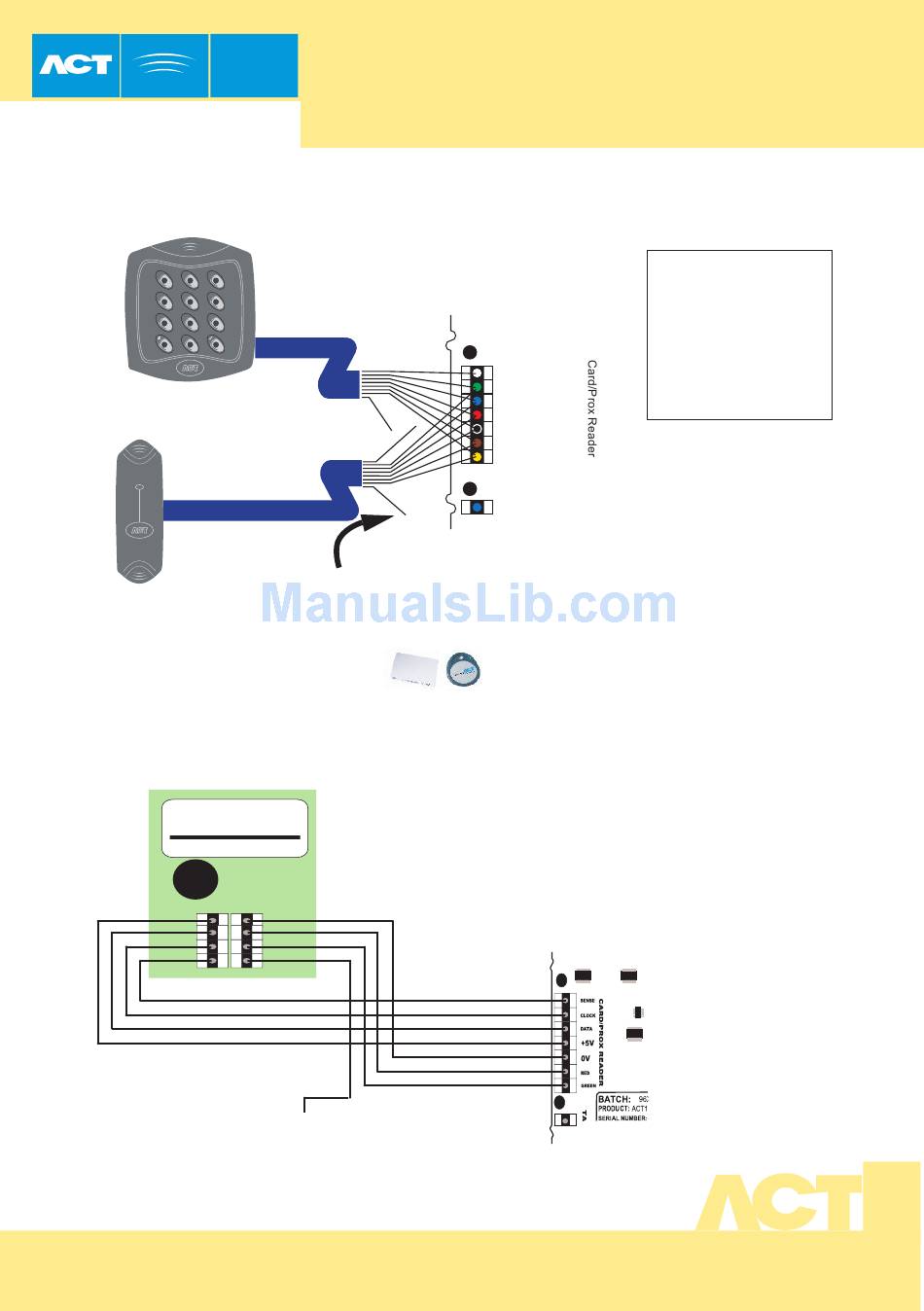

Wiring for Entry/Exit Readers
ACTProX Product Range
1030/1040/1050/1060
02XX-1
:
00XXXX
0V
Red LED
Grn LED
Buzz Ctrl
Wiring for ACTProX Reader
White
Green
Controller
Blue
Red
Black
Brown
SENSE
Yellow
Clock/Data 1
Orange
Data/Data 0
5v
0v
The standard wiring colours for
Red LED
ACTProX Proximity and Pin readers
Green LED
is shown above. Readers
should be a maximum of 30m
from the controller when powered
from +5V and a maximum of 100m
when powered from +12V.
Connect the SENSE line to the Controller if you require an
Entry Reader. Leave the SENSE line unconnected for an
Exit Reader or for operation with Wiegand Cards.
The +5V reader supply on ACT controllers is normally rated
at 1A for the ACT 2000 and ACT 3000 Controllers and rated at
100mA for the ACT1000.
Typically this is sufficient to power 2 ACT readers; however
if you are using two readers with the ACT 1000 controller we
do recommend that you power the ACT Readers from 12v.
Note however that readers from other manufacturers may need
to be powered separately if their current requirements exceed
this or if they require 12v.
Readers must be placed a minimum of 1m from each other in
order to maximise reading range.
SENSE
Clock / Data1
Data / Data 0
+5v
0v
Red Led
Grn Led
(Buzzer Ctrl)
