ACT ACT2000 - INSTALLATION DIAGRAMS Installation

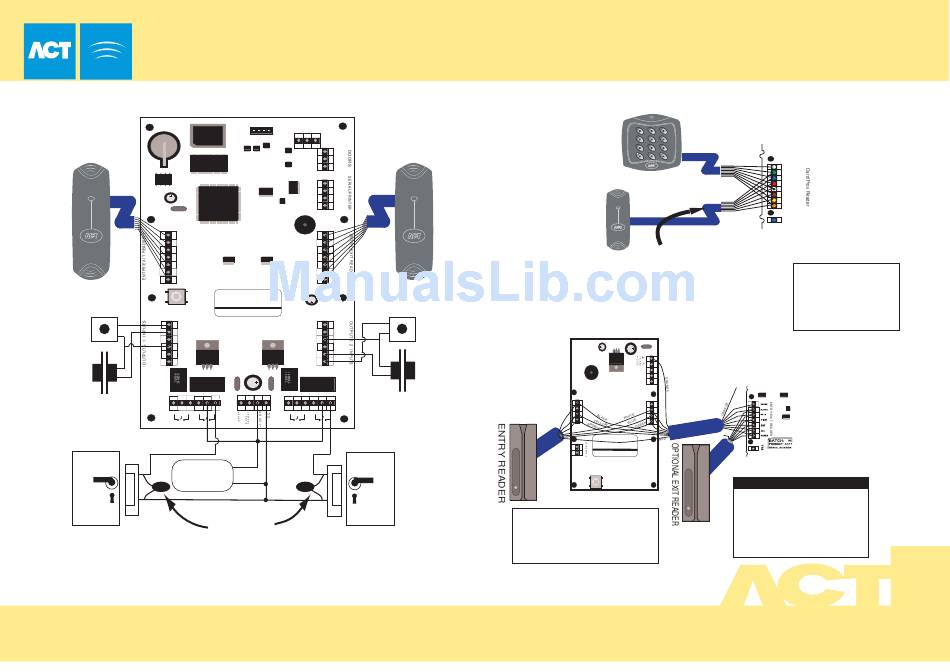

Typical ACT2000 Configuration
CR2032
Card or Proximity
+
Reader - Door 1
SENSE
CLOCK
DATA
+5V
0V
RED
GREEN
Release Button
Door 1
PUSH
BUTTON
DOOR
CONTACT
AUX
INPUT
0V
OP2
OP3
5A 250VAC
5A 30VDC
Door 1 Contact
N/C N/O N/C N/O
C C
AUX RLY 1 RELAY 1
Door 1
12V DC
Power Supply
Important!
Always Place Varistor
Across Lock Terminals
This illustration shows wiring
for normally de-energised
locks. If normally energised
locks are required, use the
N/C relay contacts.
U nit 8 T a lla ght B us ines s C entre, W hites tow n, T a lla ght, Dublin 24, Irela nd.
T elephone: 353 1 462 2585. T elefa x : 353 1 462 2587. E -m a il: s a les @ a cces s control.ie W eb: w w w .a cces s control.ie
ACT2000 Installation Diagrams
(standalone)
NETWORK
A B 0V
Card or Proximity
A
Reader - Door 2
B
0V
DTR
RX
TX
0V
GREEN
RED
0V
+5V
DATA
CLOCK
SENSE
Door 2
BATCH:
98XX-1
PRODUCT: ACT2000 REV2.1
Release Button
SERIAL NUMBER: 00XXXX
0 1 2 3 4 5 6 7 8 9
OP3
OP2
0V
AUX
INPUT
DOOR
CONTACT
PUSH
BUTTON
5A 250VAC
5A 30VDC
Door 2 Contact
N/C N/O N/C N/O
C C
AUX RLY 2 RELAY 2
Door 2
12V
0V
Note:
If the Mains Present or Door
Contact inputs are not used,
they should be linked to 0V
Card or Proximity
Reader (Entry)
1 2 3
4 5 6
7 8 9
0
Card or Proximity
Reader (Exit)
Wire both readers in parallel but leave
the SENSE line on the Exit reader unconnected.
For Wiegand readers .
Wire both readers in parallel but connect D0
line of the exit reader into the SENSE line on
the controller,leave the SENSE line on the
Exit reader unconnected.
ACT20 Pin Pad W iring Diagram
0V
Cable: 8 Core Screened,
0V
INTERLOCK Max 30m
(PB2)
BUZZER
PUSH
BUTTON OP3
DOOR
CONTACT OP2
BATCH: 98XX-1
PRODUCT: ACT20 REV2.1
SERIAL NUMBER: 012345
0 1 2 3 4 5 6 7 8 9
The ACT20 connects in parallel
between the reader and the controller.
An extra line (ORANGE) is used to
bring +12VDC power to the ACT20.
The shields should be joined.
Wiring for Entry/Exit Readers
Controller
Sense
Clock
Data
+5v
0v
Red Led
Grn Led
The above diagram is valid only
for clock-and-data type readers.
Wiring for Clock and Data / Wiegand Reader
White Sense
Green Clock / Data1
Blue Data / Data 0
Red +5v
Black 0v
Brown Red Led
Yellow Grn Led
Orange (Buzzer Ctrl)
Connect to
12Vdc
SENSE
UNUSED
Controller
Controller Cable ACT20
Sense White Buzzer
Clock Green OP2
Data Blue OP3
+5V Red
0V Black 0V
Red LED Brown Door Contact
Grn LED Yellow Push Button
+12V Orange +12V
