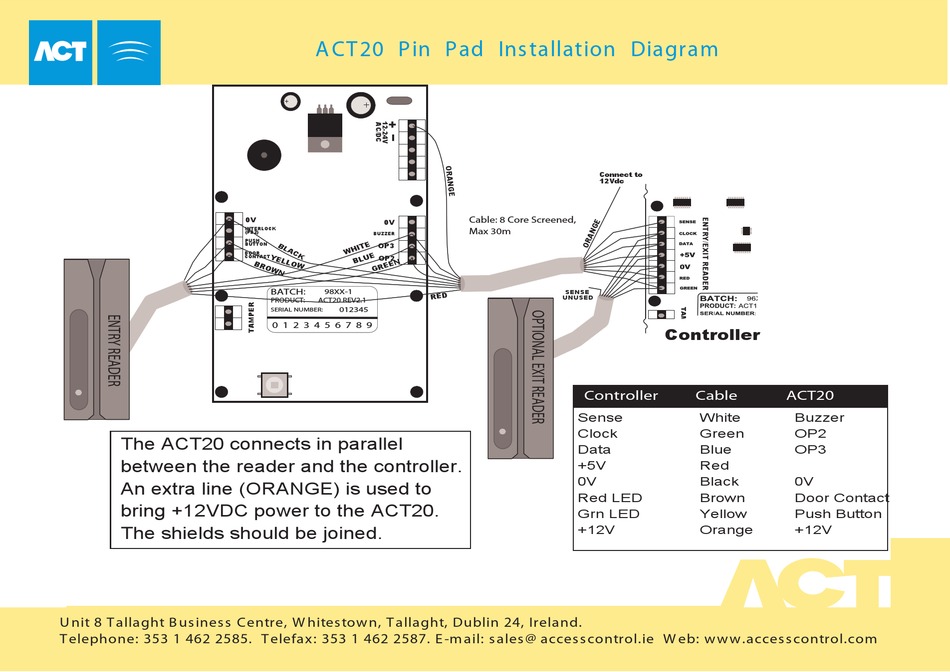

ACT ACT20 PIN PAD - INSTALLATION DIAGRAM Installation

The ACT20 connects in parallel
between the reader and the controller.
An extra line (ORANGE) is used to
bring +12VDC power to the ACT20.
The shields should be joined.
U nit 8 T allaght B us ines s Centre, W hites tow n, T allaght, Dublin 24, Ireland.
U nit 8 IDA B us ines s Park, W hites tow n, T allaght, Dublin 24, Ireland.
T elephone: 353 1 462 2585. T elefax : 353 1 462 2587. E -m ail: s ales @ actrl.com
T elephone: 353 1 462 2585. T elefax : 353 1 462 2587. E -m ail: s ales @ acces s control.ie W eb: w w w .acces s control.com
A CT 20 Pin Pad Ins tallation Diagram
0V
0V
INTERLOCK
(PB2)
BUZZER
PUSH
BUTTON OP3
DOOR
OP2
CONTACT
BATCH:
98XX-1
PRODUCT: ACT20 REV2.1
012345
SERIAL NUMBER:
0 1 2 3 4 5 6 7 8 9
Connect to
12Vdc

Cable: 8 Core Screened,

Max 30m

SENSE
UNUSED
Controller
Sense
Clock
Data
+5V
0V
Red LED
Grn LED
+12V
W eb: w w w .actrl.com
Controller
Cable ACT20
White Buzzer
Green OP2
Blue OP3
Red
Black 0V
Brown Door Contact
Yellow Push Button
Orange +12V
