The ACT 10 digital keypad is a sturdy and
durable unit made from vandal resistant die
cast zinc with backlit stainless steel keys.
This multi-purpose keypad caters for access
control, door monitoring and interlock
applications.
Main Features
10 User codes
2 Output relays
2 doors, 2 user groups
Interlock, fire alarm input, door monitoring
Surface or Flush mount options
Indoor or outdoor (IP54)
Zinc diecast housing, stainless steel keys
Front and back tamper
Backlit keypad
Installation / Specification Guidelines
The ACT 10 requires an operating voltage
of 12 to 24 volts AC or DC. For full functionality
use 12 volts DC supply.
2 x 5 amp relay outputs
The ACT 10 can be installed either
indoors or outdoors (IP54)
Operating Temperature: -10 to +50 C
There are flush mounting and weather shield
accessories available for this product
Digital Keypad
220/240 Volts AC
PSU
12/24 Volts AC/DC
Tamper
ACT 10
3 Outputs (100mA)
3 Inputs (100mA)
EXIT

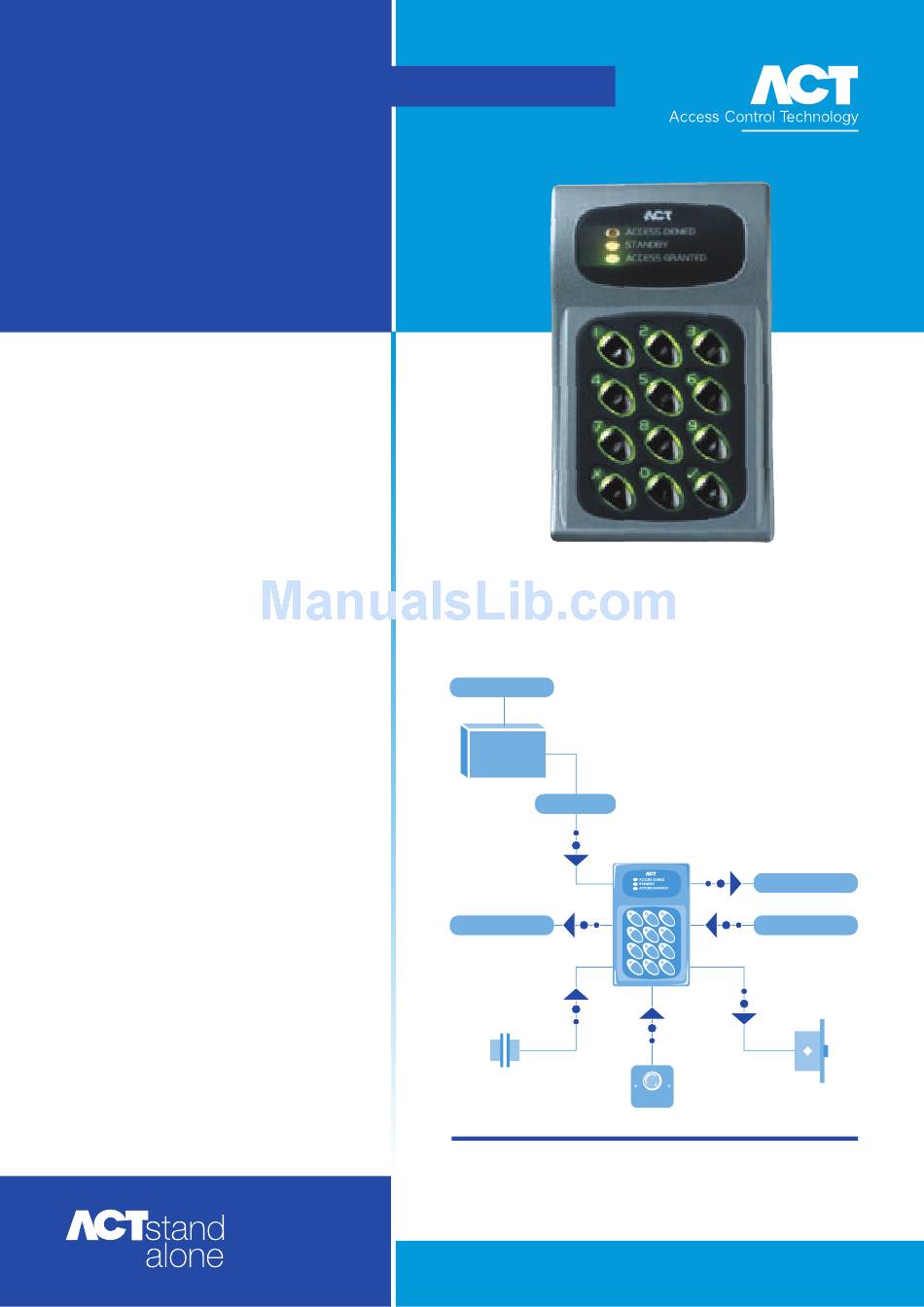

ACT 10 System Schematic
