Summary of Contents for ACT ACT ENTRY A10

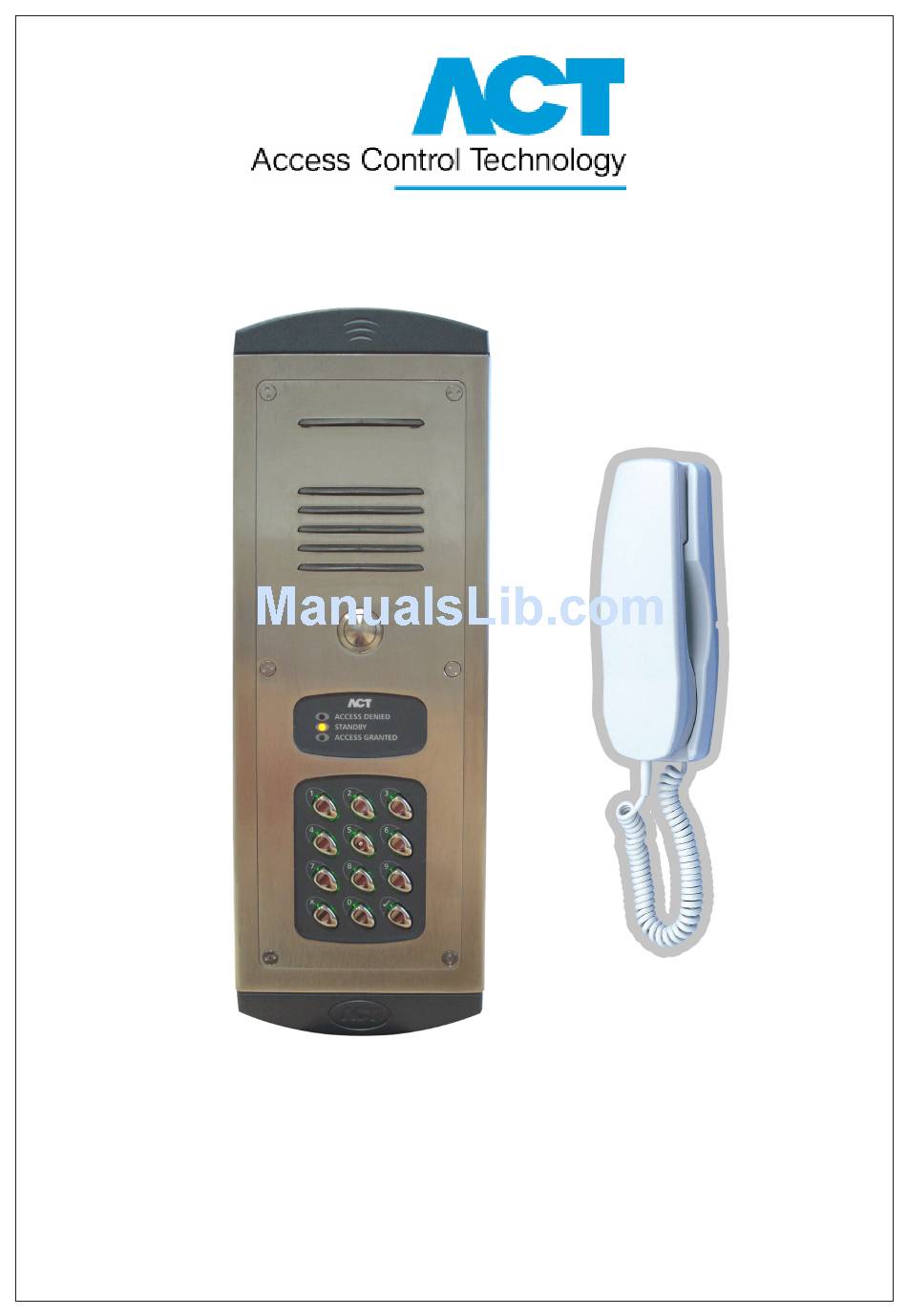

- Page 1 ACT entry A10 Operating & Installation Instructions 18-00044...
-
Page 2: Installation Notes
Ordering Information ACTentryA10VR-SK Vandal Resistant Door Entry Panel with integrated ACT 10 Digital Keypad, Call Button and Speech Unit in a Surface Mount Kit, Door Intercom Handset & Power Supply Vandal Resistant Door Entry Panel with integrated ACT 10 Digital Keypad, Call Button... - Page 3 ACTentry A10 Operating and Installation Instructions ACTentry A10 Schematic...
-
Page 4: Quick Programming Guide
ACTentry A10 Operating and Installation Instructions Quick Programming Guide (For typical System) 1. Enter Programming Mode. On the digital keypad press button . Input the programming code (default is 9999). (e.g Enter Programming Mode: -9999) 2. Change User 1 Code On the digital keypad: Press Button 0, then Press Button 1 (for User 1). - Page 5 The ACTentry A10 Door Entry Panel incorporates a call button for the Door Intercom Handset, Speech Unit (grill, microphone and speaker) and ACT 10 Digital Keypad. For residents or legitimate personnel, their PIN code, entered on the digital keypad, will unlock the door for a preset time.
- Page 6 ACTentry A10 Operating and Installation Instructions ACTentry A10 Programming Press the button followed by the programming code (initially 9999). The yellow LED will ash while in programming mode. To exit the programming mode press button . Exit from programming mode occurs automatically if no key is activated for 30 seconds.
- Page 7 ACTentry A10 Operating and Installation Instructions Setting Configuration:...
-
Page 8: Restoring Factory Defaults
ACTentry A10 Operating and Installation Instructions Incorrect Code Lockout Restoring Factory Defaults... -
Page 9: Troubleshooting
ACTentry A10 Operating and Installation Instructions Troubleshooting Door Door I Door I Door Door Door I dset Door Door Intercom Door Inter Handset © Copyright 2007 Access Control Technology Ltd. - Page 10 Volume B Adjust Speech Unit I R O T Z Call Button A maximum of 4 Door Intercom Handsets per Door Entry Panel ACT 10 Keypad Power Supply 12 V AC / DC OMRON OMRON Door Release 250V AC 5A 25...
- Page 11 Run O and R as twisted-pair Handset (base of) Volume A Adjust Volume B Adjust I R O T Z Speech Unit Call Button ACT 10 Keypad Power Supply 12 V AC / DC OMRON OMRON Door Release 250V AC 5 2 A...
- Page 12 User List Unit C1, South City Business Centre, Tallaght, Dublin 24, Ireland Tel: 353-1-4662570 Fax: 353-1-4520427 UK Locall: 0845 300 5204 Web: http://www.accesscontrol.ie E-mail: tech@accesscontrol.ie © Copyright 2008 Access Control Technology Ltd.
