NOTE
This NIC card and associated hardware listed below are not used with the SE8500HW4 server
board, which has a dedicated system management NIC on the server baseboard.
•
Intel Management Module Network Interface Card.
•
2 Screws
•
Rear filler panel with LAN connection knockout (not required for SR1400 and SR2400
chassis)

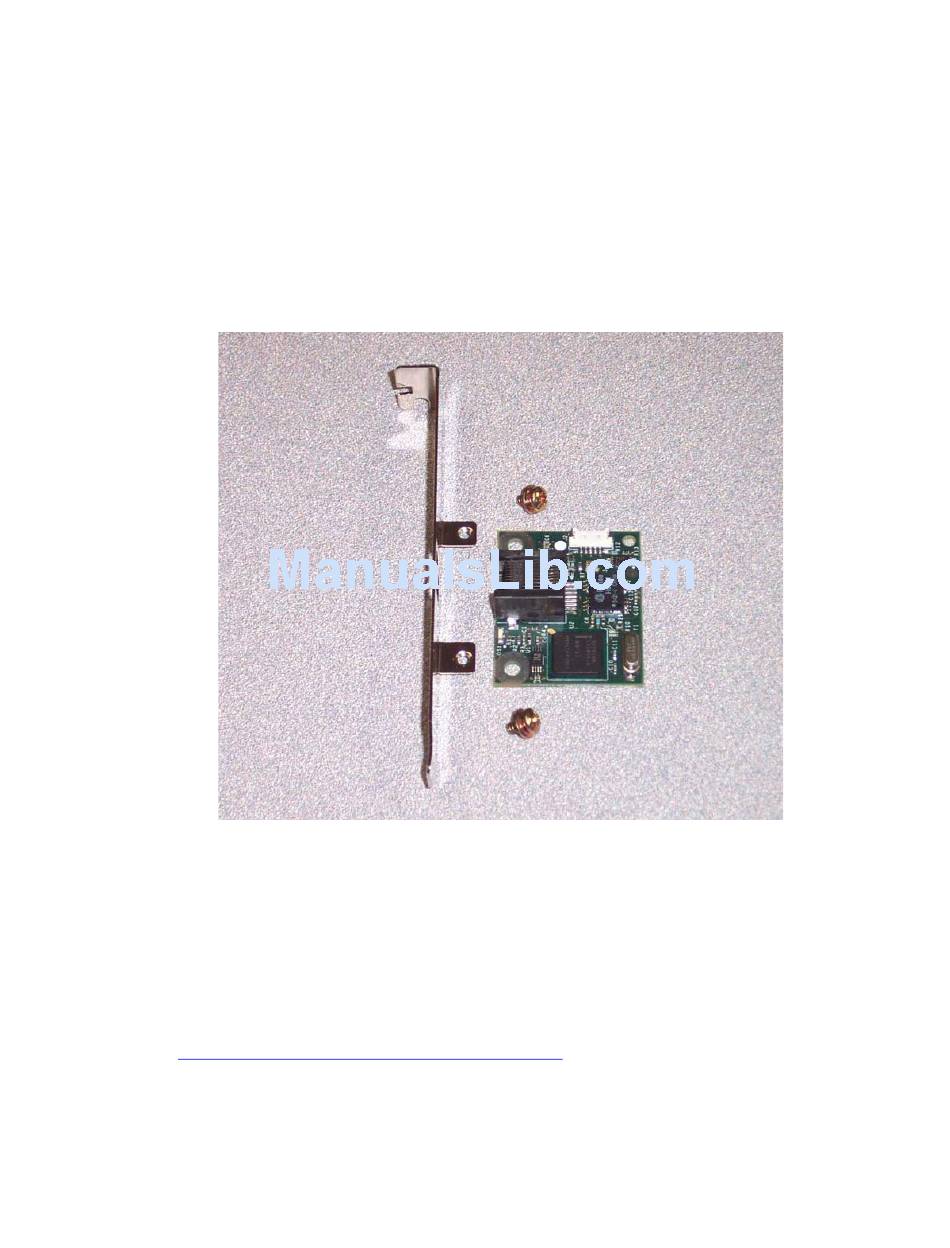

The following illustration shows the network interface card, filler panel, and screws.
Figure 7. Intel Management Module Network Interface Card, Rear Filler Panel, and Screws
•
2 I2C Cables (one long and one short cable)
To prepare for the installation, you will need the following:
•
The utilities for your server board (available on the Intel Server Deployment Toolkit CD
shipped with your server board)
•
The latest FRU/SDR, firmware update files, and Release Notes (download from
http://support.intel.com/support/motherboards/server
•
A Medium Phillips screwdriver to attach the NIC card to the rear filler panel
