Recordings - Axis CAMERA STATION 1.1 User Manual

AXIS Camera Station Administration

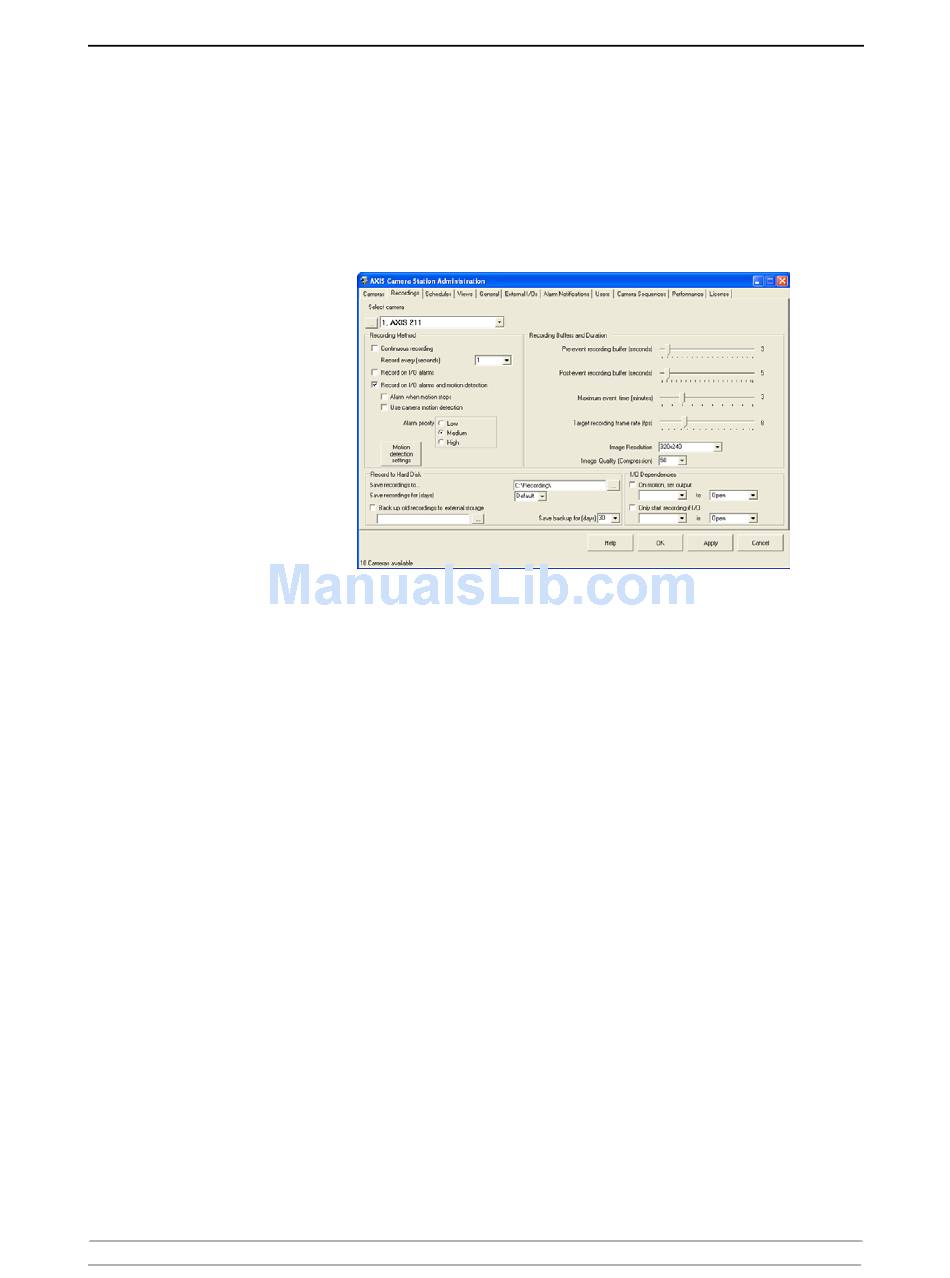

Recordings

Select camera
Recording Method
Continuous recording
Record every (seconds)
24
All settings that pertain to Recordings are defined under this tab, e.g. :
• motion detection
• recordings triggered by an incoming signal from an input/output
• save recorded images
Select a camera. For a camera to appear in the drop-down list, it must be
registered under the Cameras tab, see Cameras, on page 19 for instructions.
The maximum number of available cameras is determined by your license.
Check this if you want the server to continuously save images. This option uses
more disk space than recording upon motion-detection or upon an external
alarm.
Set the recording rate (1 frame every X seconds). If 0 is selected, the frame rate
specified in the Target recording frame rate (fps) bar is used.
AXIS Camera Station User's Manual
