Get images from FTP
directory
Minimum image size
(bytes)
Directory
Link to Camera
(button)
Test Image (button)
Clear Camera Settings
(button)
AXIS Camera Station User's Manual
2. Open the AXIS Camera Station Administration pages. Select a camera from
the drop-down list.
3. Click Camera enabled checkbox.
4. Click the Get recorded images from FTP server checkbox.

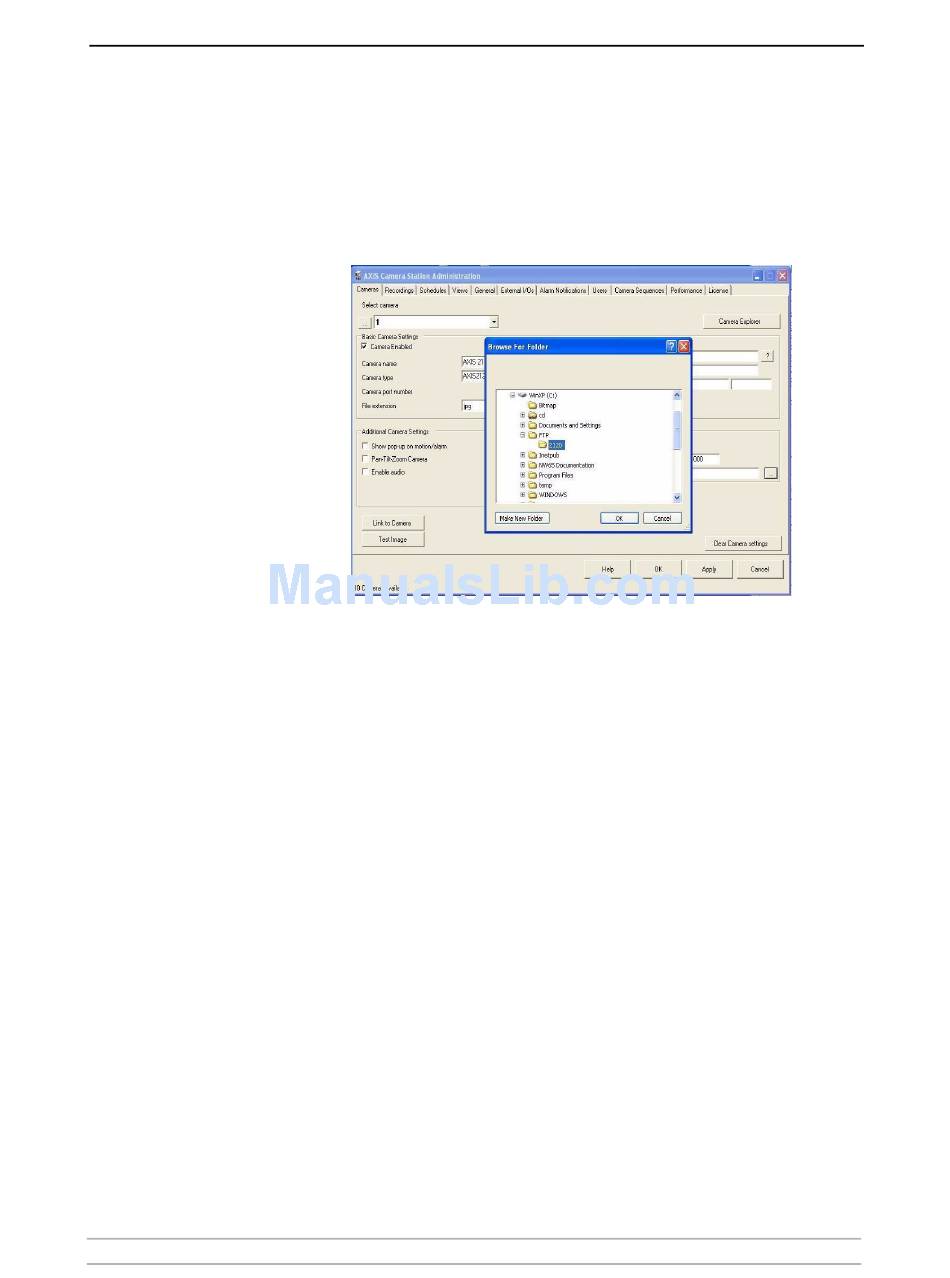

5. From Directory, browse to the FTP directory where the images will be stored:
6. Under the Recordings tab, select Record on I/O alarms.
7. Click OK to save and exit.
Check to enable pushing of images from an FTP server to AXIS Camera Station.
See FTP, on page 22.
Setting a minimum image size can help prevent the sending of incomplete
images.
Specify the FTP server directory where recorded images will be uploaded. This
could be from another server within your Windows network or a local drive on
the PC where AXIS Camera Station is installed.
Click here to open the camera's embedded web pages, from where you can
configure all camera settings.
Click here to check that AXIS Camera Station is retrieving images from the
camera. If no images are displayed, check that the IP address and camera/video
server type are correct and that the user ID and password have been entered, if
these are required.
Click to clear all camera settings.
