B. Braun Stimuplex HNS 12 Technical & Service Manual
Nerve stimulator for peripheral regional anesthesia
Hide thumbs
Also See for Stimuplex HNS 12:
- Quick instructions (2 pages) ,
- User manual (78 pages) ,
- User manual (64 pages)
Related Manuals for B. Braun Stimuplex HNS 12
Summary of Contents for B. Braun Stimuplex HNS 12

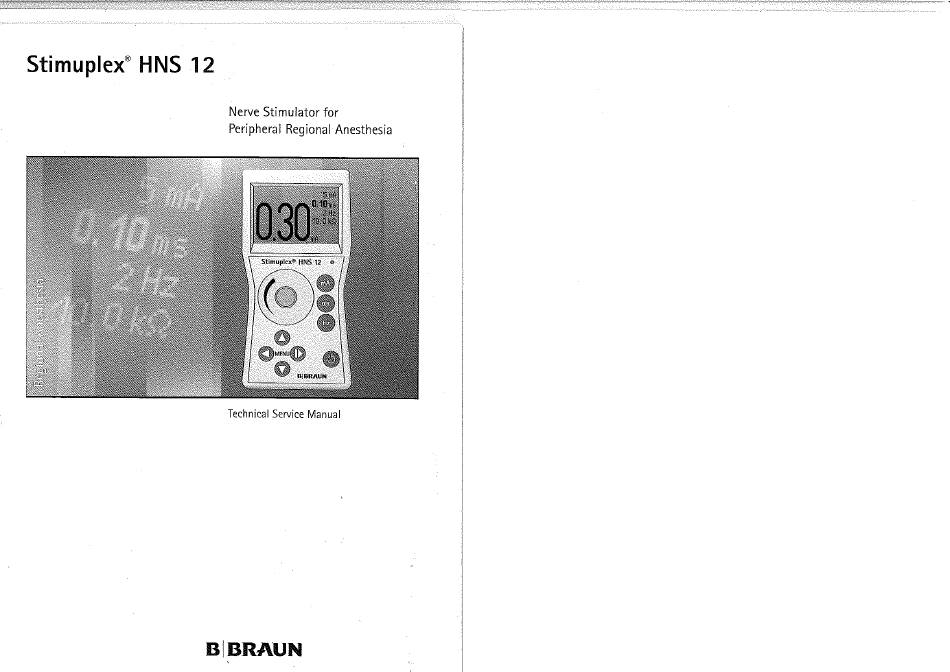

- Page 1 Stimuplex@ I-INS 12 Nerve Stimulator PeripheralRegionalAnesthesia Stimuplexe HNS 12 MENU DBRAUN Technical Service Manual B BRAUN...
- Page 2 Functional check of Stimuplex@ HNS 12 — Distributor: Manufacturer: Instructions for technical safety checks . STOCKERT GMBH B. Braun Melsungen AG Hospital Care Division Visual inspection of Stimuplex@HNS 12 and accessories. Bötzinger Strasse 72 Functional check of Stimupiex@ HNS 12...
- Page 3 Technical data The Stimuplex9 HNS 12 is a nervestimulator usedfor locating peripheral nerves in regional anes- Stimuplexa HNS 12 Type: thesia and pain therapy. Instrument type: 9 V (alkaline) Battery: The Stimuplex@ HNS 12 is a class lla medical device according to Council Directive 93142/EEC. 6 mA (8 mA maximum) Powerconsumption: 5 mA (maximum) (0-12 kQ)
- Page 4 Maintenanceand technical safety checks(with battery installed) We recommend runningthe following simplechecks beforestarting up operationfor the first time WARNING! and then regularly(e.g.beforedaily use): If the battery is leaking, Stimuplex@ HNS 12 should no longer be operated for reasonsof safety. —Visual inspection of device and accessories It must be returned to the manufacturer for correct cleaning and a safety check.
- Page 5 Instructions for technical safety checks • Usethe ms function key to set the stimulus duration to 0.30 ms - Appearsin display. Thesetests may be performed by qualified staff only and in accordance with the following test instructions (Section 6, para. 4 MPBetreibV).An equipment logbook of the technical safety checks •...
- Page 6 MENU and ON/OFFkeys: • Connect Stimuplexe Pen to electrode cable. Increasetarget stimulation current- The warning "Patient current lower than your setting" appearsin the display.Then close the circuit with the When the stimulation screen is displayed, press arrow key —+Main Menu is displayed. test resistor.
- Page 7 Unauthorized personsopening or attempting to repair Stimuplexe HNS 12 can create a dangerous situation and will cause all warranty claims to be nutl and void. —B. BRAUN Code number for replacement electrode cable: 4892070 Any order for repairs must be accompanied by a detailed description of the fault.
- Page 8 Test equipment logbook Stimuplex@ HNS 12 Accessories functional check Serial Passed Failed Test equipment for the test: Accessories Test resistor 10 kQ +/- 1 % Measuring device Type Calibrated Next calibration Electrode cable Ohmmeter Stimuplex@Remote Control, if available Oszilloscope Stimuplex@Pen,if available Visual inspection Stimulation signal check Operating elements...
