JunosE 11.3.0 Release Notes

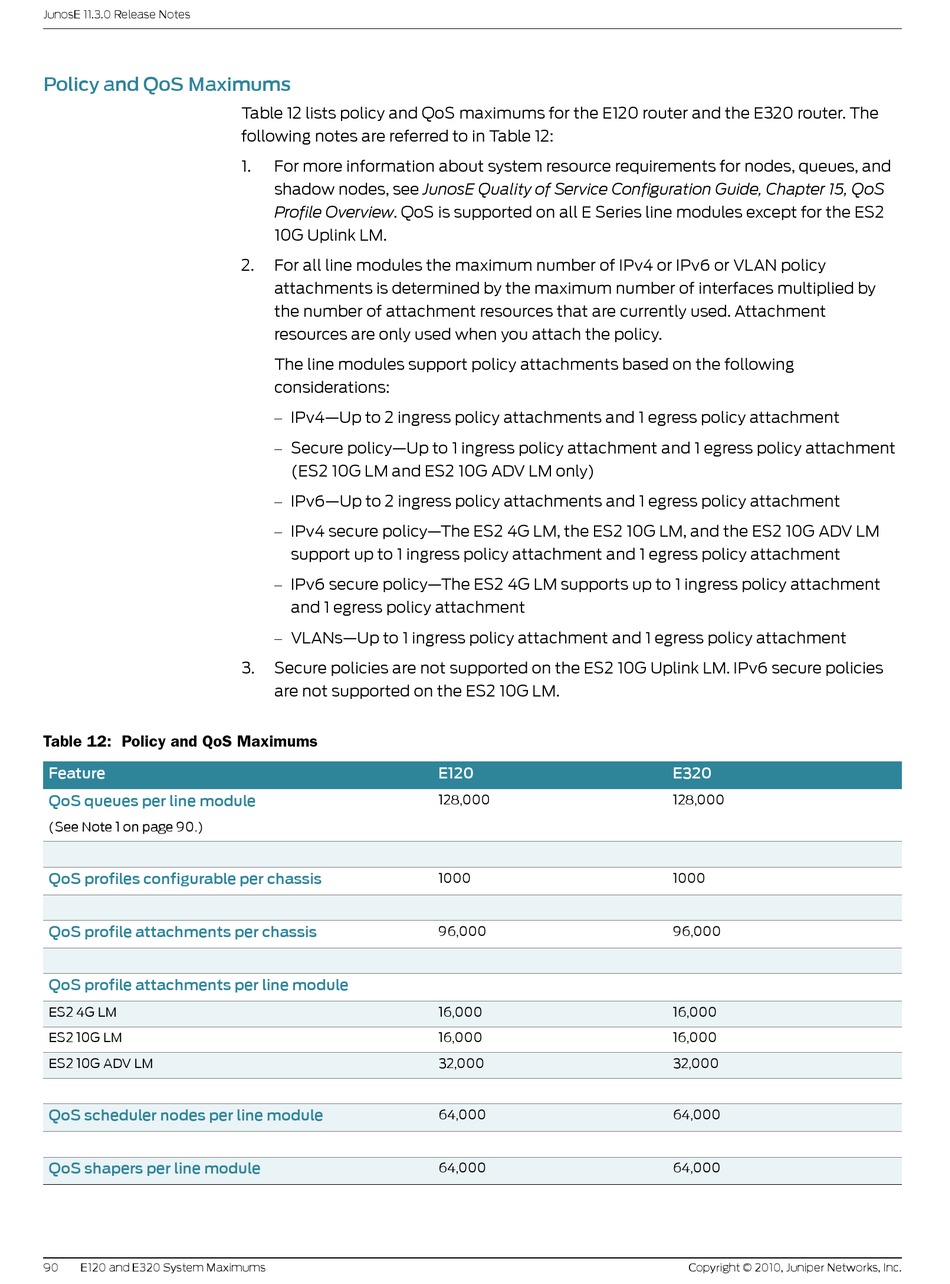

Policy and QoS Maximums

Table 12: Policy and QoS Maximums
Feature
QoS queues per line module
(See Note 1 on page 90.)
QoS profiles configurable per chassis
QoS profile attachments per chassis
QoS profile attachments per line module
ES2 4G LM
ES2 10G LM
ES2 10G ADV LM
QoS scheduler nodes per line module
QoS shapers per line module
90 E120 and E320 System Maximums
Table 12 lists policy and QoS maximums for the E120 router and the E320 router. The
following notes are referred to in Table 12:
1. For more information about system resource requirements for nodes, queues, and
shadow nodes, see JunosE Quality of Service Configuration Guide, Chapter 15, QoS
Profile Overview. QoS is supported on all E Series line modules except for the ES2
10G Uplink LM.
2. For all line modules the maximum number of IPv4 or IPv6 or VLAN policy
attachments is determined by the maximum number of interfaces multiplied by
the number of attachment resources that are currently used. Attachment
resources are only used when you attach the policy.
The line modules support policy attachments based on the following
considerations:
 IPv4—Up to 2 ingress policy attachments and 1 egress policy attachment
 Secure policy—Up to 1 ingress policy attachment and 1 egress policy attachment
(ES2 10G LM and ES2 10G ADV LM only)
 IPv6—Up to 2 ingress policy attachments and 1 egress policy attachment
 IPv4 secure policy—The ES2 4G LM, the ES2 10G LM, and the ES2 10G ADV LM
support up to 1 ingress policy attachment and 1 egress policy attachment
 IPv6 secure policy—The ES2 4G LM supports up to 1 ingress policy attachment
and 1 egress policy attachment
 VLANs—Up to 1 ingress policy attachment and 1 egress policy attachment
3. Secure policies are not supported on the ES2 10G Uplink LM. IPv6 secure policies
are not supported on the ES2 10G LM.
E120
128,000
1000
96,000
16,000
16,000
32,000
64,000
64,000
E320
128,000
1000
96,000
16,000
16,000
32,000
64,000
64,000
