French Countryside
Queen
Headboard
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the parts.
We havetaken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.

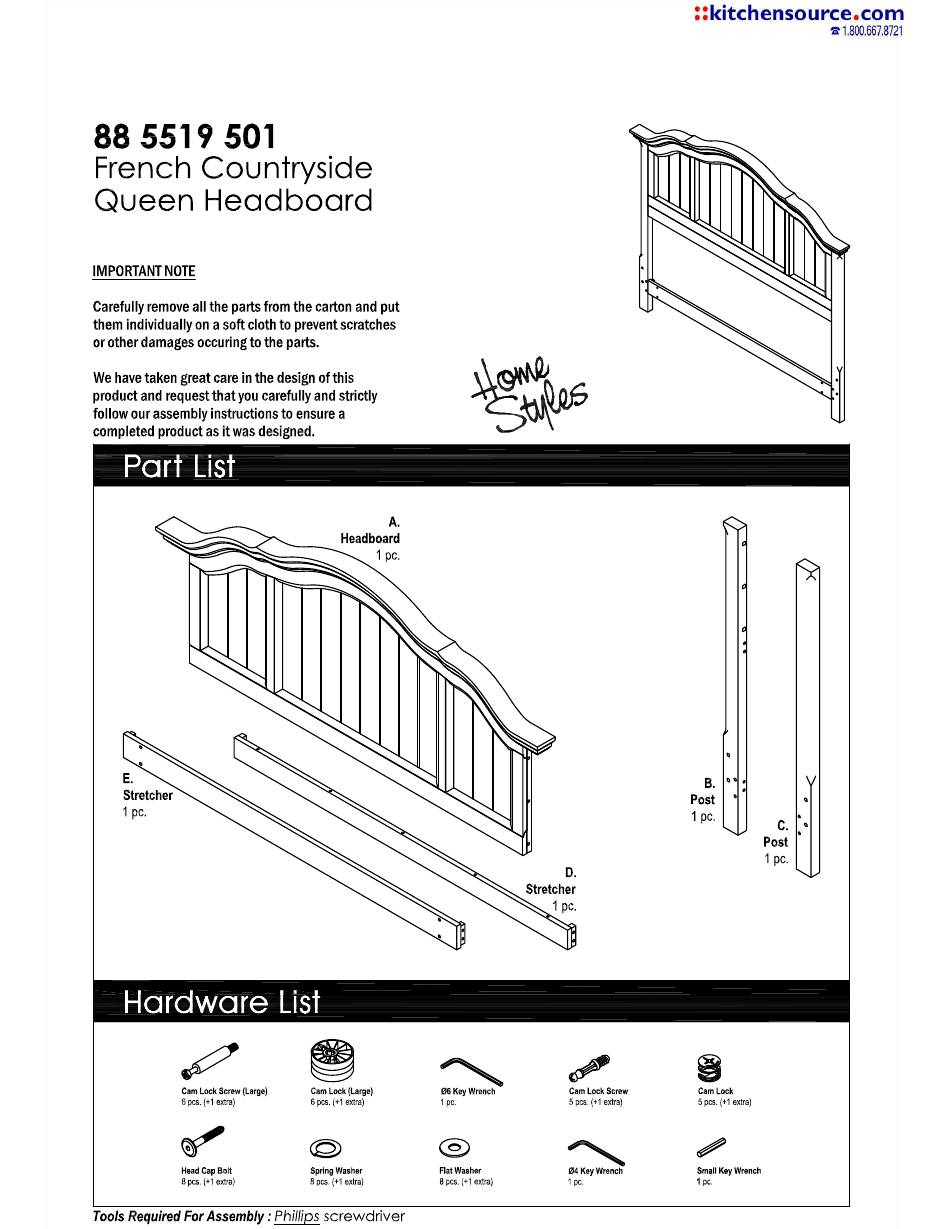

Part
List
E.
Stretcher
1 pc.
:Hardware1ist
Cam Lock Screw (Large)
6 pcs (+1extra)
HeadCap Bolt
8 pcs (+1extra)
Tools RequiredFor Assembly : Phillips screwdriver
Headboard
I pc
Cam Lock (Large)
Ø6 KeyWrench
6 pcs (+1extra)
1 pc
Spring Washer
Flat Washer
8 pcs (+1extra)
8 pcs (+1extra)
::kitchensource.com
Post
I pc
D.
Stretcher
1 pc
Cam Lock Screw
Cam Lock
5 pcs (+1extra)
5 pcs (+1extra)
Ø4KeyWrench
Small KeyWrench
1 pc
1.800.667.8721
c.
post
1 pc
