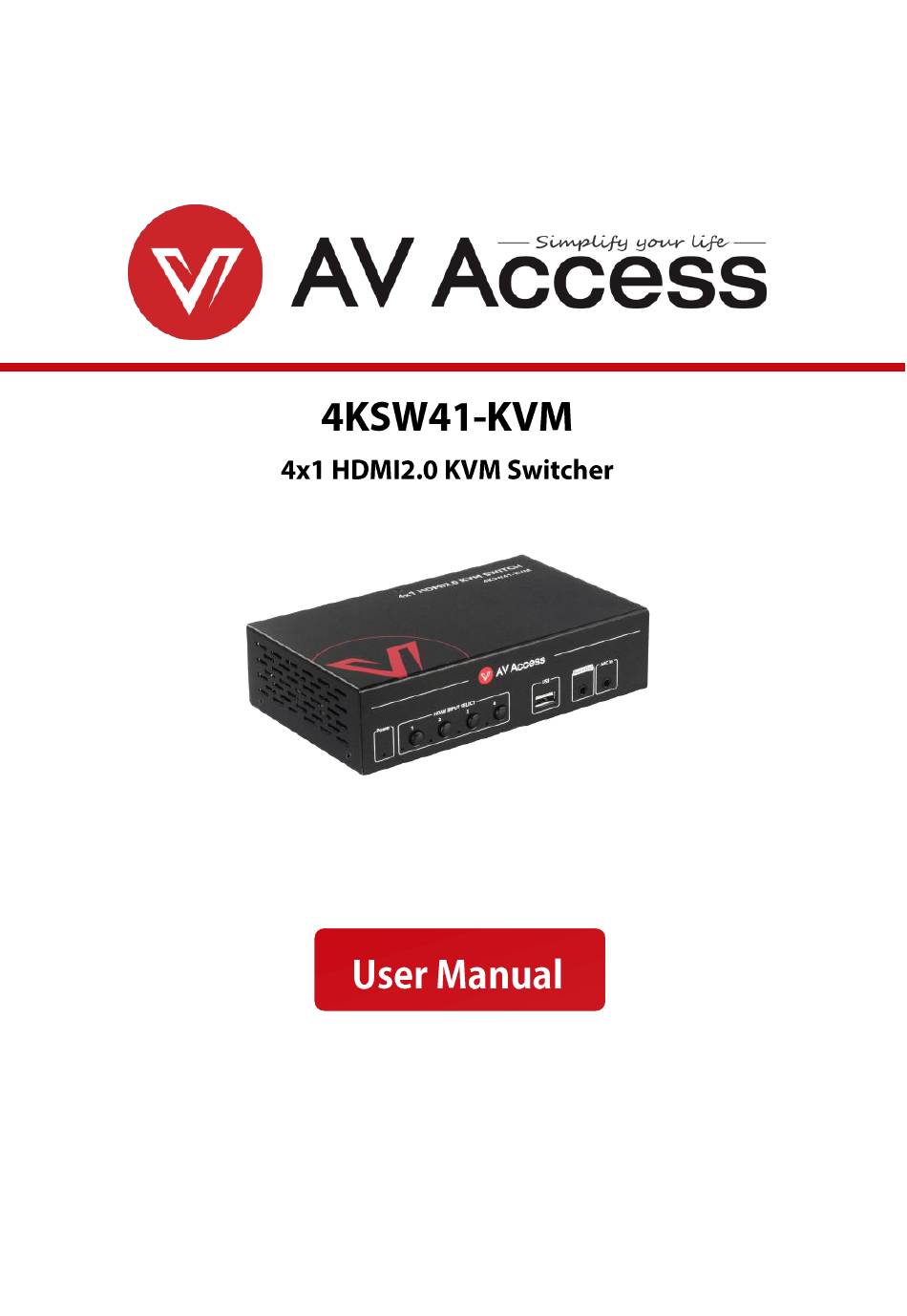

- Page 1 AV Access 4KSW41-KVM HDM12.O Switcher User Manual...
- Page 3 Of third parties which may result from its use. AV Access Technology Limited assumes no responsibility for any inaccuracies that may be contained in this document. AV Access Technology Limited also makes no commitment to update or to keep current the information contained in this document.
- Page 4 Important Safety Instructions Do not expose this apparatus to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases,shall be placed on the apparatus. Do not install or place this unit in a bookcase, built-in cabinet, or in another confined space.
- Page 5 Table of Contents Introduction .„....2 Overview Fea tu res Package Contents Panel. Front Panel. Rear Panel ..............Installation and Application Installation ...„..„„......„„....Steps to install the device in a suitable location:..........Application . Specification Trouble Shooting. Steps of Regular Troubleshooting Routine Warranty services@avaccess.com www.avaccess.com...
- Page 6 Introduction Introduction Overview 4KSW41 -KVM is a HDMI KVM Switcher with HDM12.O and HDCP2.2compatibility. With the four port KVM switch allows the user controls four source devices/computers with only one set of USB devices (e.g. USB mouse, USB keyboard, USBflash and other USB2.O compliant devices). This product provides a cost-effective way to share one USBkeyboard, one USBmouse, one USB2.Odevice and one HDMI monitor to control four computers.
- Page 7 Introduction Features 4xI HDMI KVM switcher with HDM12.O and HDCP2.2 compliant; Full 18G bandwidth, up to 4K/UHD @60Hzwith 4:4:4 chroma sampling; Supports three USB-A port for USBkeyboard, USBmouse and other USB2.O devices to control one of the four computers; ...
- Page 8 Introduction Panel Front Panel AV Access Description Name Power On: The switcher is powered on. (Red) Off: The switcher is powered off. HDMI Buttons: Press this button select HDMI IN 1—4as input. HDMI LED: LED is located on the left of the button.
- Page 9 Introduction Rear Panel Description Name Connects to a DC 12V power adapter. DC 12V Connects to a HDMI Display device. HDMI HDMI IN (1-4) Connects to (1—4) HDMI sources. USB A Port Connects to a USBdevice such as a keyboard. Connects to a USB device such as a Mouse.
- Page 10 Installation and Application Installation and Application Installation Note: Before installation, please ensure the device is disconnected from the power source. In order to keep elegant appearance, we design to share screws with the product chassis, please refer to the below steps to install. Steps to install the device in a suitable location: Remove the four screws that secure the side panels to the device.
- Page 11 Installation and Application Application Earphone Connect Connect earphone and sources (Such a microphone as keyboard. to Audio Out port mouse or camera and Mic In port. to USB Port AV Acce power Supply Keyboard Mouse Connect sources (Su Connect as keyboard. Connect power supply mouse...
- Page 12 Specification Specification Technical Video Input 4 x HDMI in, 4x USB2.Otype-B Host HDMI: HDMI 2.0 / HDCP 2.2 Input Signal Type USB: USB2.O VESA: 9,10, 1366x7688, 1400x10508, Input/Output Resolution Supported SMPTE: 720x480P7ß, 720x576P8, 1280x720PlZ*5Lt8 1920x1080168, 1920x1080P 1 = at 23.98 Hz, 2 = at 24 Hz, at 25 Hz, at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60...
- Page 13 Specification General O to 450C OF), 90%, Operating Temperature non-condensing +700C +158 OF), 90%, Storage Temperature non-condensing Humidity 10% to 90%, non-condensing Human Body Model: ±8kV (air-gap discharge)/ ESD Protection ±4kV (contact discharge) Product Supply DC 12V/2A Power Consumption 4K Full load Power Consumption:7.7W Product Dimension 170mm...
- Page 14 Trouble Shooting Trouble Shooting Steps of Regular Troubleshooting Routine Power: Please make sure the source, display devices and switcher are powered on. Indicator: Please make sure all LED indicators of the switcher are normal according to user manual. Devices: Pleasemake sure picture can be shown normally when connecting source to display device directly.
- Page 15 The warranty has expired. The defects are caused by the fact that the product is repaired, dismantled or altered by anyone that is not from an AV Access Technology Limited authorized service partner. The defects are caused by the fact that the product is used or handled improperly, roughly or not as instructed in the applicable User Guide.
- Page 16 AV Access AV Access Technology Limited VI .0.2...
