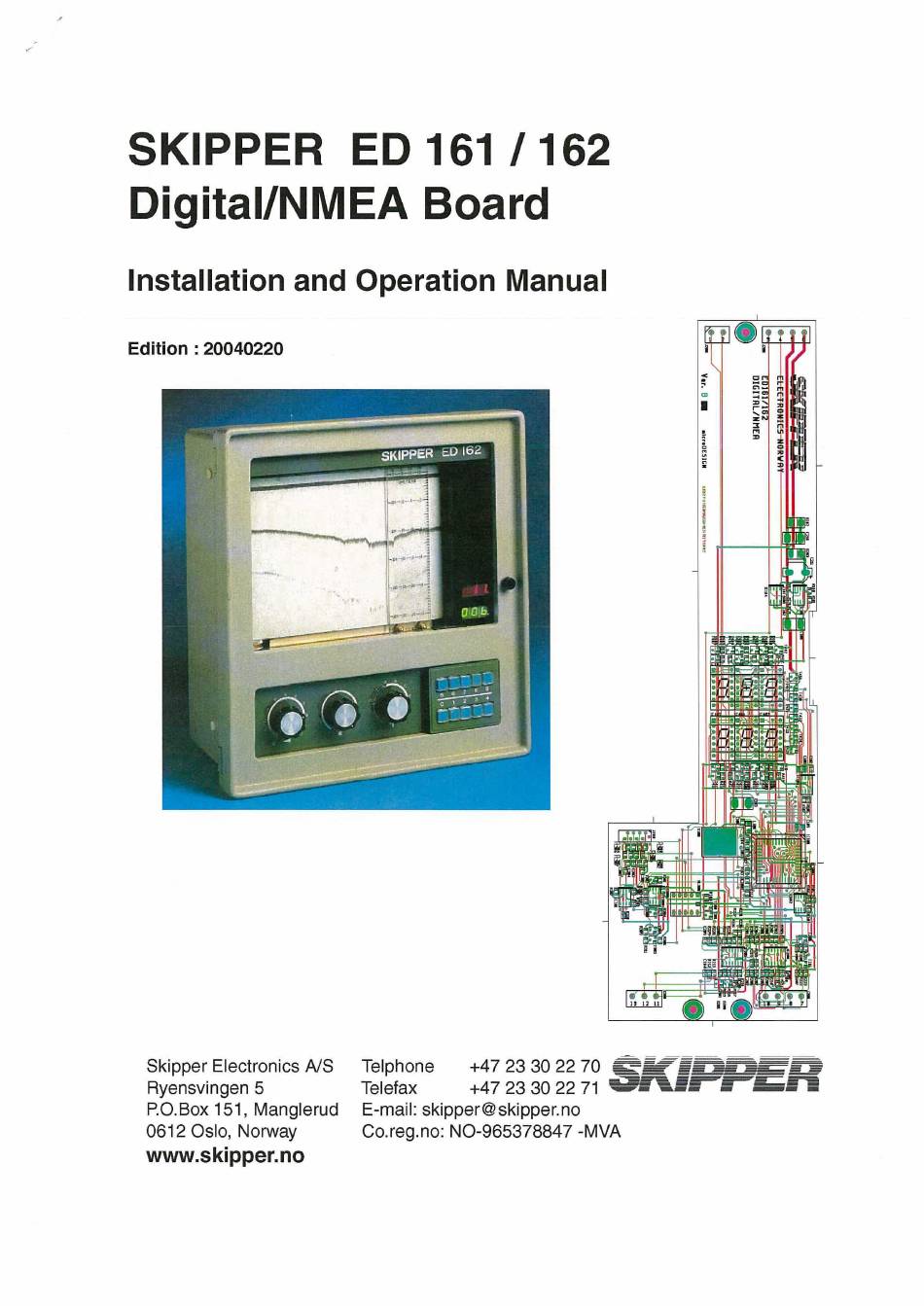

SKIPPER
Digital/NMEA
Installation
and Operation
Edition
: 20040220
Skipper Electronics NS
Ryensvingen 5
P.O.Box 151, Manglerud
0612 Oslo, Norway
www.skipper.no
ED 161 / 162
Board
Manual
SKIPPER
Telphone
+47
23 30 22 70
Telefax
+47
23 30 22 71
E-mail: skipper@skipper.no
Co.reg.no: NO-965378847
-
—
-MVA
Advertisement
Related Manuals for Skipper ED 161
Summary of Contents for Skipper ED 161
- Page 1 SKIPPER ED 161 / 162 Digital/NMEA Board Installation and Operation Manual Edition : 20040220 SKIPPER Skipper Electronics NS Telphone 23 30 22 70 Telefax Ryensvingen 5 23 30 22 71 — P.O.Box 151, Manglerud E-mail: skipper@skipper.no 0612 Oslo, Norway Co.reg.no: NO-965378847 -MVA www.skipper.no...
- Page 2 Operation of Alarm & Digital PCB Setting of Depth Alarm Keep "5" key pressedfor more than 3 secondsto enterAlarm Mode. Alarm Entry Mode is identified by the letters "ALA" in the Red LED display. Alarm limit is now entered normally. Alarm depth is flashing (l second/l second) in the Green LED display If no key has beenpressedfor 5 seconds,alarm entry mode is stopped.
- Page 3 Installation Openthe echo sounderand releasethe upper screw on the digitalboard cover. Replace the digital/NMEA board ( fig,1) after the specified colour code table. Cut the enclosed shrink tube in suitable pieces and add on cablesto terminal 1-6. Mountnicelyso it will be possibleto close the cover. (*Note) Mount the EDTerm2board in the cabinet as shown in the picture(Fig.2).
- Page 4 Flg. 1 Flg.2 Shrink Flg.3 EXP. Compression PCB. Connect to yellow wire on marker switch. ( not to the orange wire !) Flg.4...
- Page 5 NMEA-DIG.PCB. INTERCONNECTION aa a : - ONLY ED 162...
