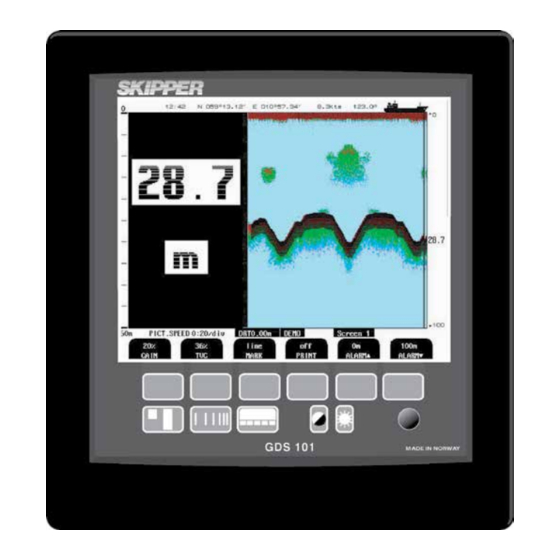

Skipper GDS101 Replacement Procedure

Hide thumbs Also See for GDS101:

Advertisement

Quick Links

Download this manual See also: Operation & Installation Manual

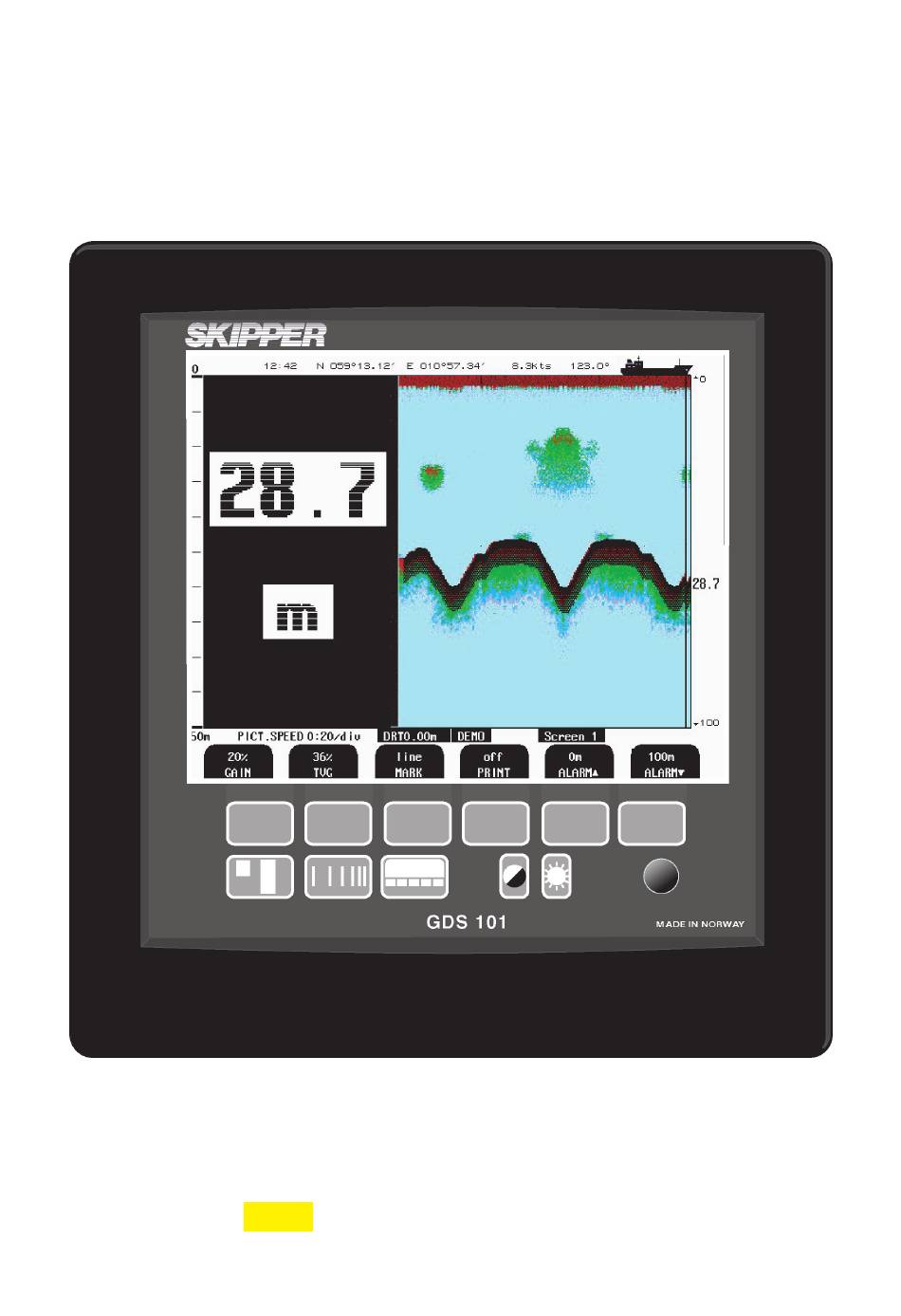

SDBGDS101_30
GDS101
Replacement procedure
This instruction leaflet will help you change the unit without loosing your settings. Follow
the guide step by step.
Estimated time: 10 - 30 minutes
It is recomended that you take a photo of your wiring, and photo or print of the status screen
(Screen 9) before you start.
Fill in your values in the yellow part of the table. (If the same as default value, you do not
need to fill in)
To get to the Setup Menus press and hold

Advertisement

loading
Need help?

Need help?

Do you have a question about the GDS101 and is the answer not in the manual?

Questions and answers

Related Manuals for Skipper GDS101

Summary of Contents for Skipper GDS101

  • Page 1 SDBGDS101_30 GDS101 Replacement procedure This instruction leaflet will help you change the unit without loosing your settings. Follow the guide step by step. Estimated time: 10 - 30 minutes It is recomended that you take a photo of your wiring, and photo or print of the status screen (Screen 9) before you start.
  • Page 2 Fig. 2.6 Screen 5, Language and units of measure Setup. This screen shows the main graphic echo-gram. Left hand digital indication may be enabled from screen 2. Soft Key 1. SET LOW 24/28/30/33/38KHz Adjust indicated frequency of lower frequency channel. (see chapter 5.
  • Page 3 Setting What it does Connection Is it USED? / Setting Default SET LOW THe Low frequency (38kHz) J100 38 kHz Channel can be factory modi- fied to these frequencies. This is not normal on ex- change units Only available if you have selected the lowest frequency on screen 3 Language...
  • Page 4 Fig. 2.7 Screen 6, Interface Setup screen. This screen shows the main graphic echo-gram. Left hand digital indication may be enabled from screen 2. Soft Key 1. PULSE 100/200/400/20000 Log pulse input calibration. Soft Key 2 ENABLE pos/neg select polarity of external sync signal (remote sounding control option) Soft Key 3 NMEA OUT...
  • Page 5 Setting What it does Connection Is it USED? / Setting Default PULSE Selects the rate J100 Pins 6,7 ENABLE External synchronise (ONLY J100 positive Special / Navy version ) Pins 12,13 NMEA OUT How often to send NMEA 9pin D Type (every second, or when a ping comes.) UPPER...
  • Page 6 NMEA Communication Settings...
  • Page 7 Check which NMEA sentences are in use by checking the STATUS on the Com scereen, Screen 8. To get to this screen press and hold the screen button and rotatate the encoder simultaniously. Press the Soft button marked MESSAGE and note the STATUS for each message below: NMEA Message What it shows Is it used (Place tick) Default...
  • Page 8 Other input/output Settings, Screen 9 Screen 9, System Status Screen. This screen shows a comprehensive list of system settings and parameters. Soft Key 1. PRINT screen Print screen. Soft Key 2 PRINTER HP DeskJet / Epson (Lq300+) / Epson D88 / Built-in thermal printer. Select type off printer that are connected.
  • Page 9 This screen contains the settings for all the other interfaces. analogue, pulse and alarm. Place a ring around the setting you have on your unit. (NOTE: if these are not conected you do not need to note down, the de- faults will be enough) Setting What it does...
  • Page 10 Other input/output Settings, Screen 10 Screen 10, Oscilloscope Screen. This screen shows oscillator program of receiver output versus time and half screen echo-gram. Soft Key 1. PRINT screen Print screen. Soft Key 2 TRANSDUCER 200, 50, 38 Transducer selection for Soft key 3 Soft Key 3 LOCATION Pos?,not installed,...
  • Page 11 If you have Transducers at different frequencies at different parts of the vessel, you can indi- cate where it is mounted. The setting for this are on this screen Setting What it does Connection Is it USED? / Setting Default Transducer 38 Selects settings for this chan- J100...
  • Page 12 Wiring ADVICE: Take a picture of the wiring before you start. and the setup screens Fill in relevant information in the yellow areas. Note the colours in the table opposite, If you have cables with the same colour mark the cables.
  • Page 13 Inhibit - Xducer Scrn Xdcr 38kHz Xdcr 38kHz Xducer Scrn Xdcr 200kHz Xdcr 200kHz *Note: If the device has a remote keyboard. The Jumper JP200 must be in place (betwen Blue relay and black diode in picture) SKIPPER RP200 Remote keybord...

  • Page 14: Changing The Unit

    Changing the unit The unt is now ready for changing. Turn off the power supplies (Turn off the power at fuse box) Remove the connectors and remove the unit. If you have a mounting adapter, use this on the new cabinet and re-mount. Replace the wires as before.
