Navigation Echo Sounder

Attention:

The Navigation Echo Sounder is part of nautical equipment. The operation belongs to the bridge only.

The navigation echo sounder delivers depth information in order to avoid grounding and ensure save ship navigation.

Skipper Electronics AS

Manufacturer

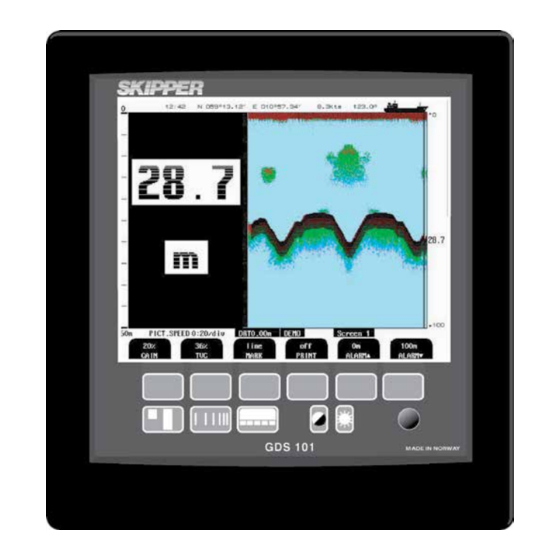

Skipper GDS 101

Model

n/a

Serial No.

echo sounder

Type

SENSOR-Link

Transducer Frequency:

30, 50 and 200 kHz

Contacts

Table of Contents

Do you have a question about the GDS101 and is the answer not in the manual?

Page 1 The Navigation Echo Sounder is part of nautical equipment. The operation belongs to the bridge only. Summary The navigation echo sounder delivers depth information in order to avoid grounding and ensure save ship navigation. Skipper Electronics AS Manufacturer Skipper GDS 101 Model Serial No.
Page 2 Rawdata storage on board Data storage in DShip system. Dship Uncorrected measurement data. Navlot Device name Depth [m] Parameters Data archiving on land After the cruise the DShip data set can be extracted from https://dship.awi.de/ Documentation Skipper GDS101 manual (User Manual, 3 MB)
