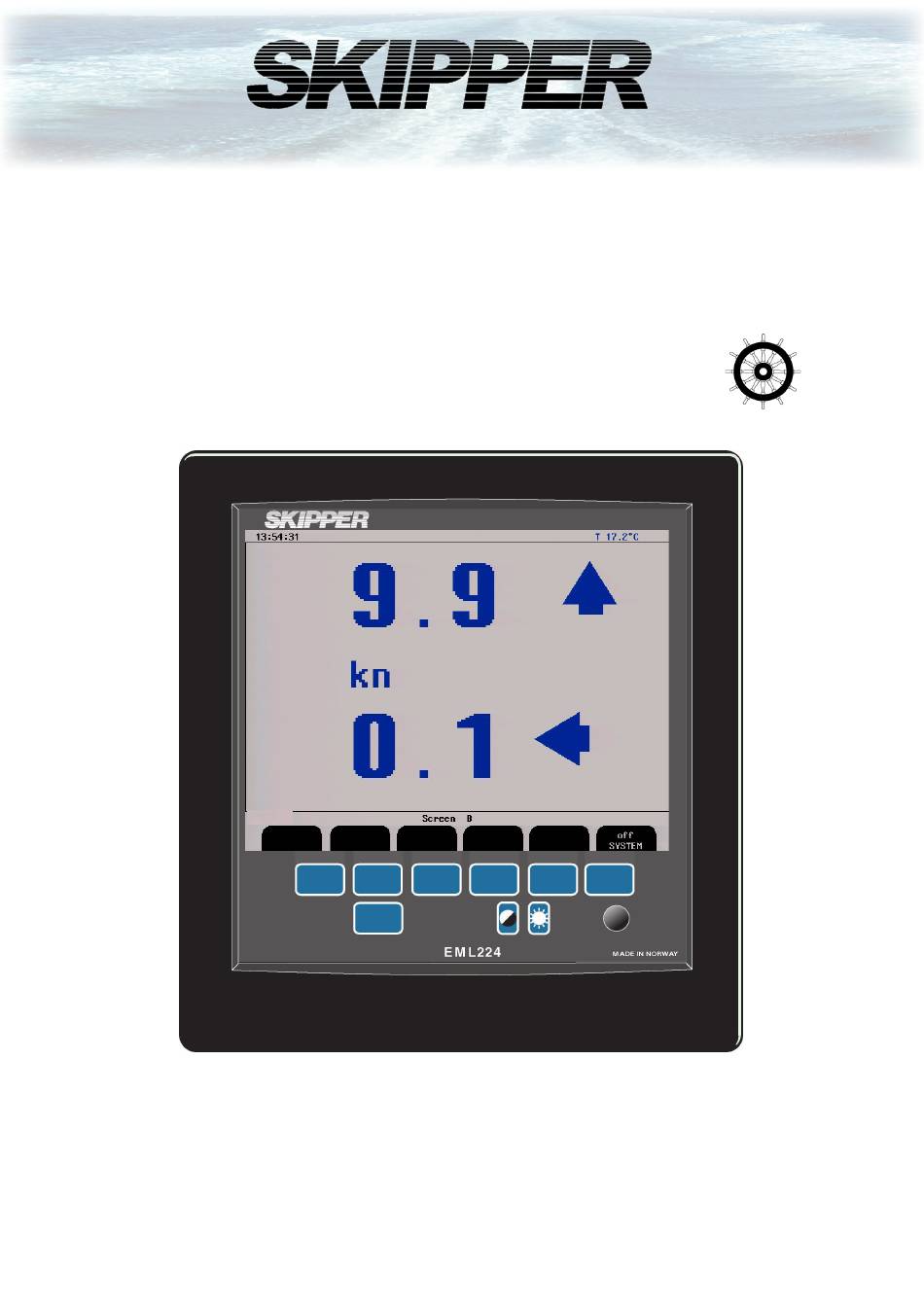

EML224N-SA Graphic display
Operation and Installation Manual
STW- Speed through water
SKIPPER Electronics AS Telephone:
Enebakkveien 150
P. O. Box 151, Manglerud
0612 Oslo, Norway
www.skipper.no
1 axis / 2 axes
Navigational Speed Log
+47 23 30 22 70
Telefax: +47 23 30 22 71
E-mail: support@skipper.no
Co. reg. no:NO-965378847-MVA
Document number: DM-E001-SB.
Revision:1650
For sw version.:1.28.01
Edition: 2020-02-05
