Installing the NPE-G1 or NPE-G2

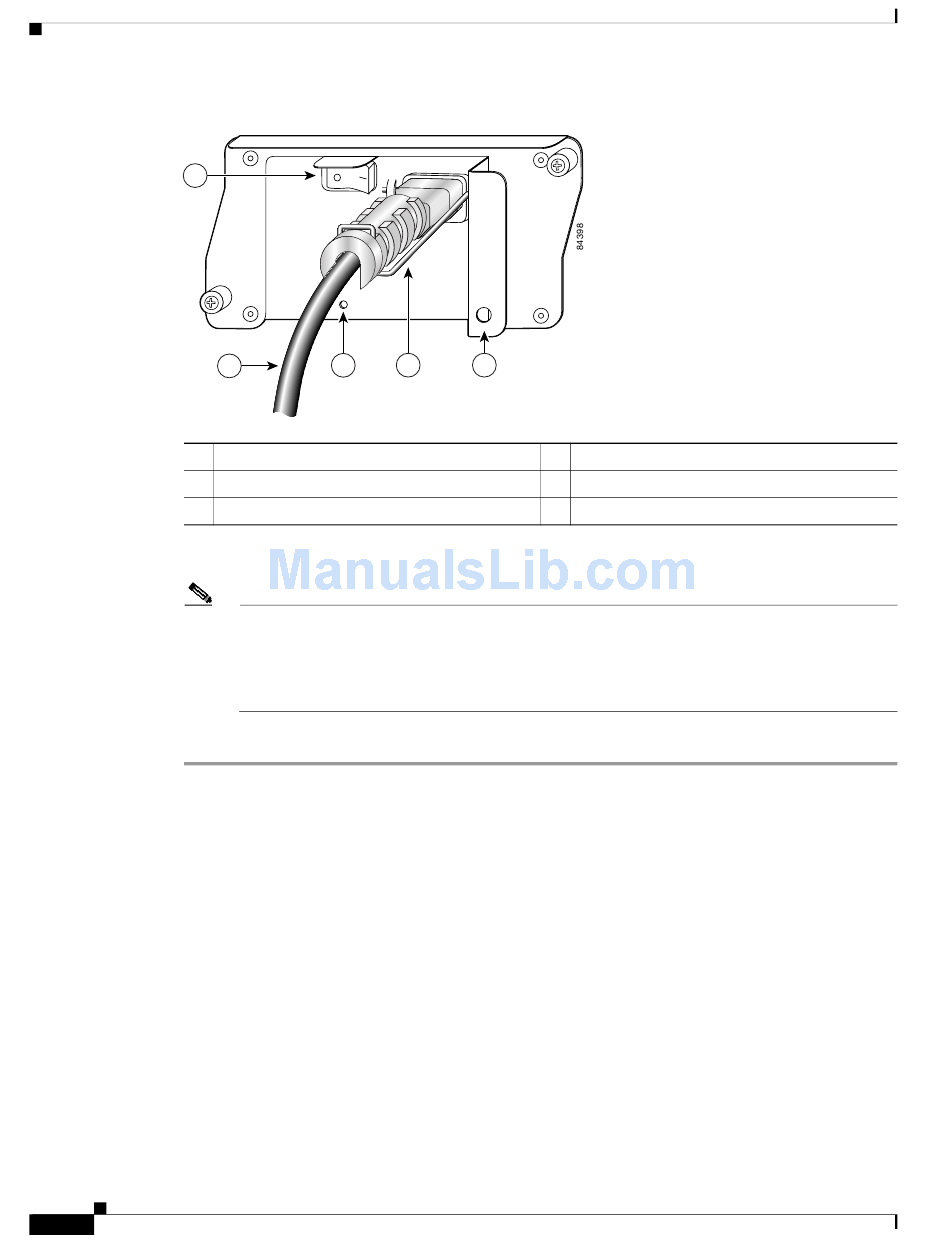

Figure 7-24
1
2
1
Power switch
2 AC power cable
3 POWER OK LED
Step 4 Plug the AC power supply cable into the AC power source.
Note
Repeat Step 1 through Step 4 if a second power supply is installed.
Step 5
This completes the steps for reconnecting AC-input power to a Cisco 7200 VXR router. Proceed to the
"Powering Up the Router" section on page
Network Processing Engine and Network Services Engine Installation and Configuration
7-36
Connecting AC-Input Power to a Cisco 7200 VXR Router
3 4
For Cisco 7200 VXR routers, each AC-input power supply operating at 120 VAC requires a
minimum of 5A service.
We recommend powering the Cisco 7200 VXR routers from a 120 VAC, 15A receptacle U.S.
(240 VAC, 10A international) at the power source.
Chapter 7 NPE-G1 and NPE-G2 Installation and Configuration Information
5
4
Cable-retention clip
5 Hole for nylon cable tie
7-45.
