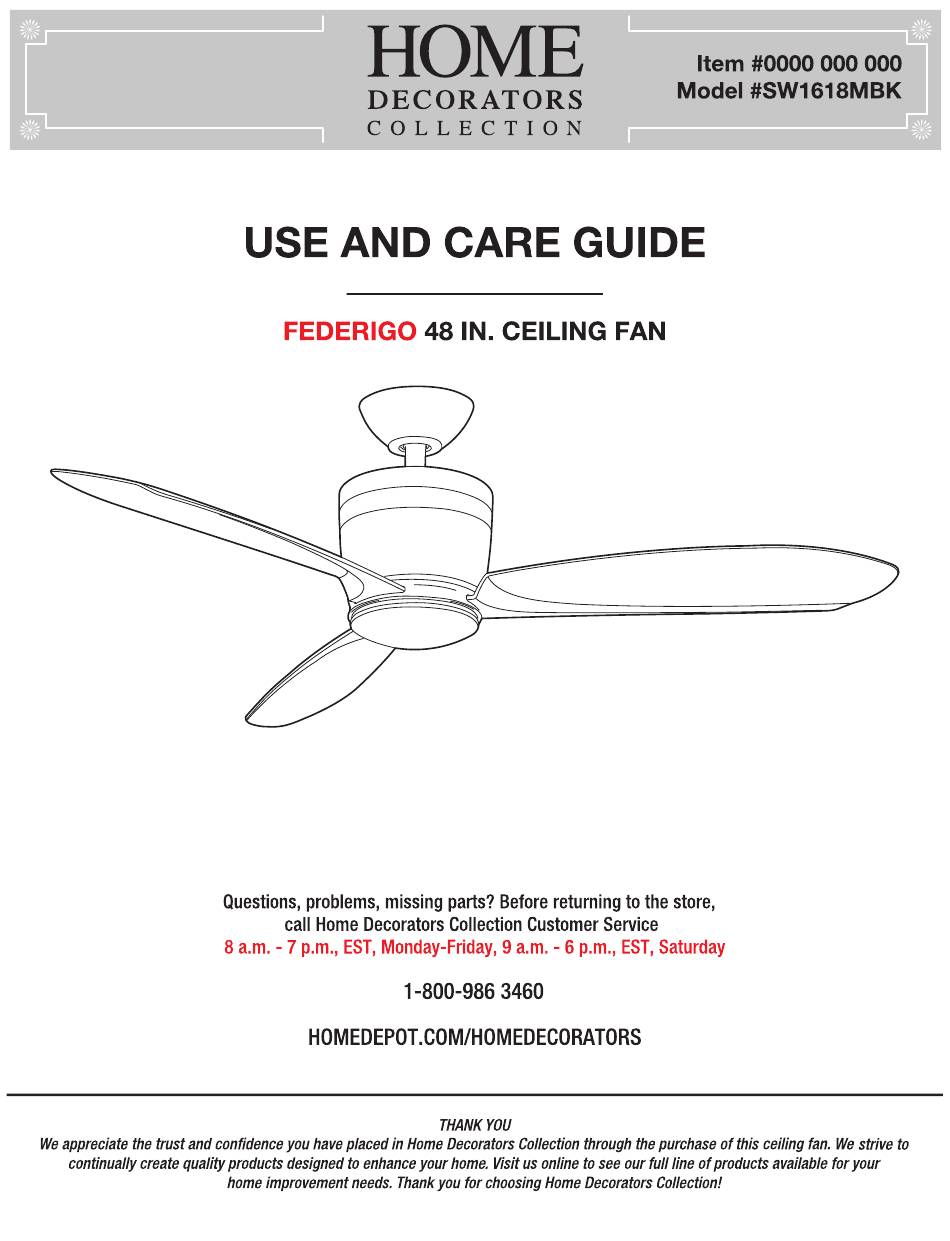

Item
#0000
OOO OOO
Model
#SW1618MBK
DECORATORS
COLLECTION
USE
AND
CARE
GUIDE
FEDERIGO
48 IN. CEILING
FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators
Collection
Customer
Service
8 a.m. - 7 p.m., EST,Monday-Friday, 9 a.m. - 6 p.m., EST,Saturday
1-800-986
3460
HOME-DEPOT.COM/HOMEDECORATORS
THANK YOU
Weappreciate the trust and confidence you have placed in HomeDecorators Collection through the purchase of this ceiling fan. We strive to
continually create quality products designed to enhanceyour home. Visit us online to see our full line of products available for your
home improvement needs. Thankyou for choosing Home Decorators Collection!
Advertisement
Related Manuals for Home Decorators Collection FEDERIGO SW1618MBK
Summary of Contents for Home Decorators Collection FEDERIGO SW1618MBK
- Page 1 Weappreciate the trust and confidence you have placed in HomeDecorators Collection through the purchase of this ceiling fan. We strive to continually create quality products designed to enhanceyour home. Visit us online to see our full line of products available for your home improvement needs. Thankyou for choosing Home Decorators Collection!
- Page 2 Table of Contents Table of Contents ............Safety Information Warranty ......Pre-lnstallation ..4 Specifications.............4 Tools Required............Hardware Included ............Package Contents............Installation .......... Assembly ..
- Page 3 Safety Information Read and save these instructions. WARNING: To reduce the risk of electrical shock or fire, do To reduce the risk of electric shock, ensure electricity has not use this fan with any solid-state fan speed control device. It will permanentlydamagethe electronic circuitry. been turned off at the circuit breaker...
- Page 4 Warranty We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two year after the date of purchase by the original purchaser.
- Page 5 Pre-lnstallation (continued) HARDWARE INCLUDED NOTE: Hardware shown to actual size unless noted otherwise in the table below. Part Description Quantity Blade screw Fiber washer Balance kit (not to scale) Remotecontrol holder mounting screws Wire nuts Cross pin (not to scale) (preassembled) Hitch pin (preassembled) Lock pin (not to scale) (preassembled) Hangerball set screw (preassembled)
- Page 6 Pre- lnstallation (continued) I PACKAGE CONTENTS Part Description Quantity Part Description Quantity Blade Fan motor assembly Mounting bracket 17W LED assembly Canopy Receiver Canopycover Remote control Hanger ball (preassembled) Remote control holder Downrod (preassembled) 12V Battery Couping cover...
- Page 7 Installation MOUNTING OPTIONS WARNING: To reduce the risk of fire, electric shock, or personal injury, mount the fan to an outlet box marked acceptable for fan support using the screws provided with the outlet box.An outlet box commonly used for the support of lighting fixtures may not be acceptable for fan support and may need to be replaced.
- Page 8 Assembly — Hanging the Fan Attaching the downrod to the Attaching the mounting bracket to fan motor assembly the electrical Loosenthe two set screws (JJ) from the fan motor WARNING: To reduce the risk of fire, electric shock, or assembly (H)coupling. other personal injury, mount the fan only to an outlet box or supporting system marked acceptable for fan support and Removethe hitch pin (GG)and lock pin (HH)from the...
- Page 9 Assembly — Hanging the Fan (continued) Attaching the coupling cover, canopy Hanging the fan motor assembly cover, and canopy to the downrod from the mounting bracket Slip the coupling cover (G),canopy cover (D), and canopy Lift the fan motor assembly (H) into position, and place the (C)onto the downrod (F).Carefully reinstall the hanger hanger ball (E) into the mounting bracket (B).
- Page 10 Assembly — Hanging the Fan (continued) Preparing the receiver and remote control WARNING: To avoid possible electrical shock, ensure the electricity is turned off at the main fuse box before wiring. CAUTION: Do not use with a wall light dimmer switch. NOTE: If you feel you do not have enough electrical wiring knowledge or experience, have your fan installed by a licensed electrician.
- Page 11 Assembly — Hanging the Fan (continued) Making the electrical connections WARNING: To avoid possible electrical shock, ensure the electricity is turned off at the circuit breaker or main fuse box before wiring. WARNING: Check to see that all connections are tight, including the ground, andthat no bare wire is visible at the Black White...
- Page 12 Assembly — Hanging the Fan (continued) Securing the fan motor assembly to the mounting bracket Removeone screw (KK)from the mounting bracket (B) and loosen the other screw (KK)approximately 1/4 turn. Carefully raise the canopy (C) up to the mounting bracket (B), and ensure the loosened screw (KK)is inserted into the key hole on the canopy (C).Rotate the canopy (C)clockwise.
- Page 13 Assembly — Attaching the Fan Blade Assemblies Fastening the blade assemblies to the fan motor assembly Insert the blades (A) through the slots on the fan motor assembly (H). Attach the fan blades (A)to the fan motor assembly (H)using the blade screws (AA)and fiber washers (BB)and tighten them securely.
- Page 14 Assembly — Installing the Light Kit Attaching the 17W LEDassembly to the fan motor assembly While holding the 17W LED assembly (l) under your fan, firmly snap the wire connection plugs (MM) together. Attach the 17W LED assembly (l) to the fan motor assembly (H) switch box by twisting tightly.
- Page 15 Operation REMOTE CONTROL OPERATING INSTRUCTIONS Install a 12V battery (M) into the remote control (K). To prevent damage to the remote control, remove the battery if not used for long periods of time. WARNING: Do not short-circuit, disassemble, heat up, connect improperly, or dispose of used batteries in fire.
- Page 16 Operation (continued) INSTALLING THE REMOTE CONTROL HOLDER Attach the remote control holder (L) with the two remote control holder mounting screws (DD). Care and Cleaning Do not Check the support connections, brackets, and blade Donot use water when cleaning. Water could damage the attachments twice a year.
- Page 17 Troubleshooting WARNING: Ensure the power is off at the electrical panel box before you attempt any repairs. Refer to the section "Making the Electrical Connections"on page11 Problem Solution Check main and branch circuit fuses or breakers. Check line wire connections to the fan and switch wire connections in the switch housing. The fan will not start.
- Page 18 Service Parts Part Description Part Description Blade Blade screw Mounting bracket Fiber washer Canopy Balance Remotecontrol holder mounting screws Canopy cover Hanger ball Wire nuts Downrod Cross pin Couping cover Hitch pin Fan motor assembly Lock pin 17W LED assembly Hanger ball set screw Fan motor assembly coupling set screw Receiver...
- Page 19 HOME DECORATORS COLLECTION Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST,Monday-Friday, 9 a.m. - 6 p.m., EST,Saturday 1-800-986 3460 HOME-DEPOT.COM/HOMEDECORATORS Retain this manual for future use.
