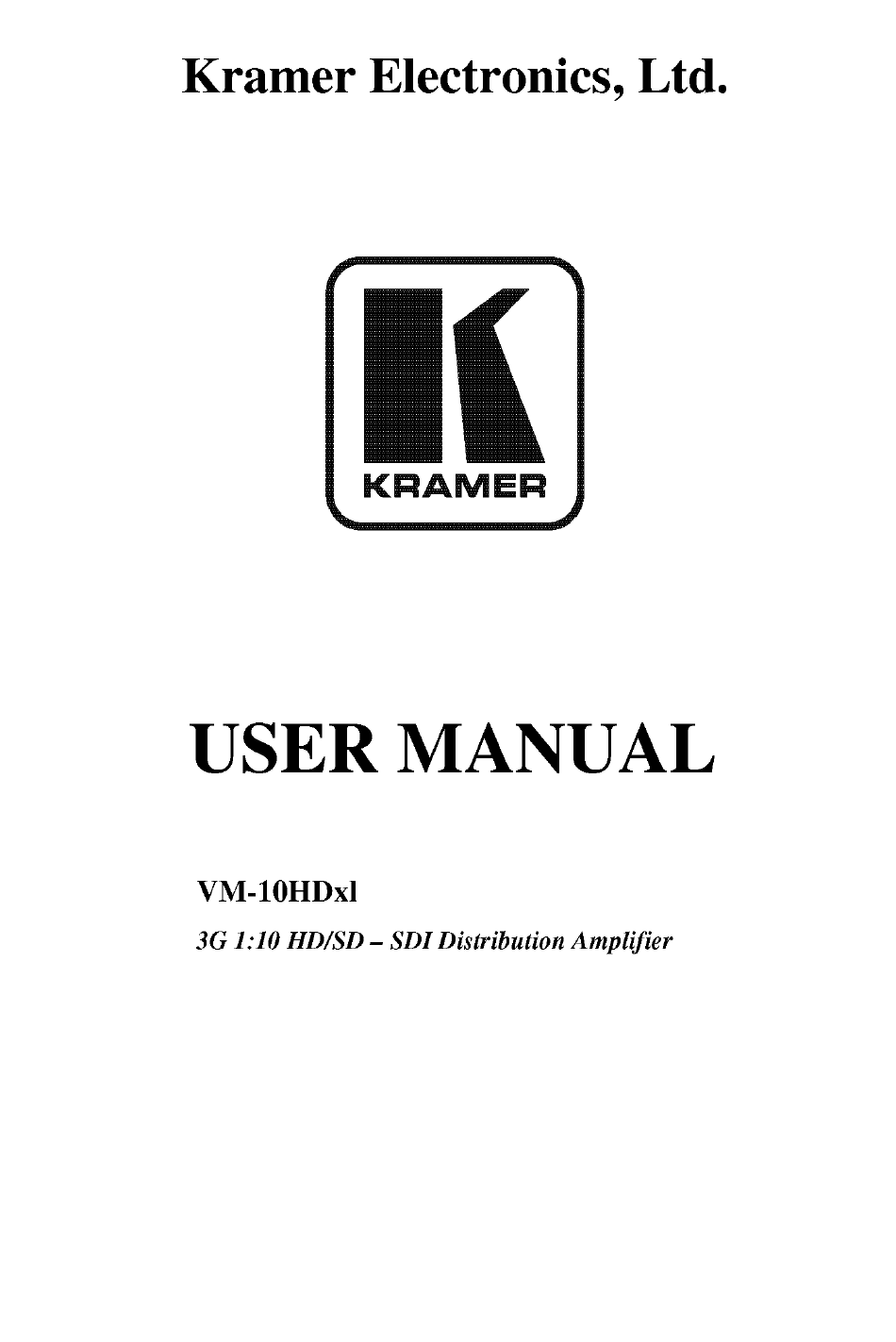

- Page 1 Kramer Electronics, Ltd. KRAMER USER MANUAL VM-10HDx1 361:10 HD/SD - SDI Distribution Amplifier...
- Page 2 Figure 1: VM-10HDx1 3Cr 1: 10 HD/SD - SDI Distribution Amplifier Figure 2: Connecting the VM-10HDxl 3G 1:10 HD/SD - SDI Distribution Amplifier Tables Table 1: VM-1011Dx1 3G 1:10 HD/SD - SDI Distt+ution Amplifier Features Table 2: Technical Specifications of the VM-10HDx1...
- Page 3 3 StandardDefinition (SD) meansan NTSC or PAL compatible video format, consisting of 480 (for NTSC) or 576 (for PAL) lines of interlaced video 4 Download up-to-date Kramer user manuals from the [nternet at this URL: http://www.kramerelectronics.com 5 The complete list of Kramer cables is on our Web site at http://www.krarnerelectronics.corn...
- Page 4 Step 2: Connect the input and the outputs - see section Cohnect the Input Local Display HD/SD SDI Camera HD/SD SDI Display 1 HDISD SDI Display 10 Step 3: Turn the power ON KRAMER: SIMPLE CREATIVE TECHNOLOGY...
- Page 5 (often associated with low quality cables) • Avoid interference from neighboring electrical appliances and position your Kramer VM-IOIID away from moisture, excessive sunlight and dust Your VM-10HDxl 3G 1:10 HD/SD - SDI Distribution Amplifier...
- Page 6 Your VM-10HDx13G 1:10 HD/SD - SDI Distribution Amplifier - SOI Distribution Amplifier VM-I OHDx:- Figure 1: VM-10HDx13G 1:10 HD/SD - SDI Distribution Amplifier KRAMER: SIMPLE CREATIVE TECHNOLOGY...
- Page 7 Your VM-10HDxl 3G 1:10 HD/SD - SDI Distribution Amplifier Table 1: VM-10HDxl 3G 1 HD/SD - SDI Distribution Amplifier Features Featur unction POWER Switch Illuminated switch for turning the unit ON or OFF Blue LED illuminates when the SDI signal is HD Green LED illuminates when the SDI signal is SD VIDEO IN BNC connector...
- Page 8 If you are using a Kramer rack grounding. Pay particular attention to situations where adapter kit (for a machine that is not electricity is supplied indirectly (when the power cord 19"), see the Rack Adapters user...
- Page 9 Connecting the VM-10HDxl Connecting the VM-10HDxl To connect the VM-10HDxl, as illustrated in the example in Figure 2, do the following Connect an HD-SDI/SD-SDI video source (for example, an SDI camera) to the VIDEO IN BNC connector. Connect u p t0210VIDEO OUTPUTBNC connectors t o theappropriate HD-SDI/SD-SDI video acceptors (for example, displays).
- Page 10 Technical Specifications Technical Specifications Table 2 includes the technical specifications: Table2: Technical S pecification'ofthe VM-10HDx1 INPUTS: / 292M / 424M serial video, 75Q on a BNC connector OUTPUTS: 10 equalized and reclocked SMPTE-259M / 292M / 424M outputs, 75Q on BNC connectors 1 Looped GENLOCK 75Q/ Hi-Z on a BNC connector MAX.
- Page 11 Of this warranty. EXCLUSION OF DAMAGES The li ability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: Damageto otherproperty cansedby defectsinthisprod wt.
- Page 12 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Caution 9001 UIQC Institute O Qualit &Control...
